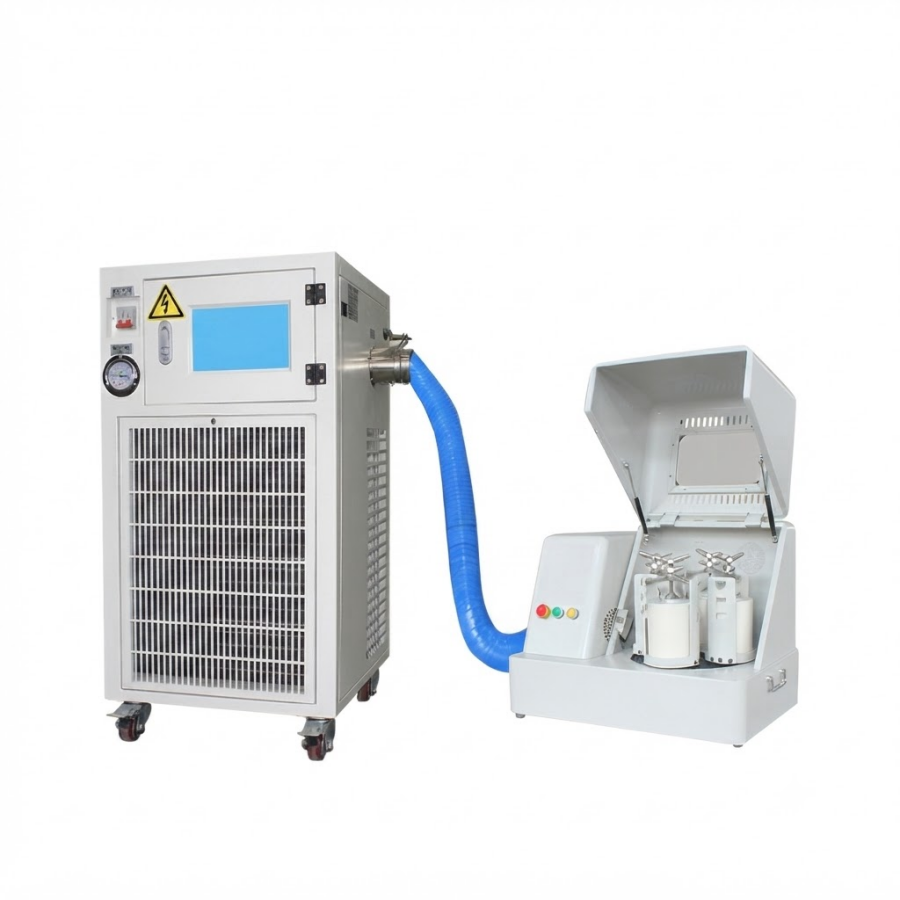

ATOMFAIR CPM-6 CRYOGENIC PLANETARY BALL MILL 5-15°C LOW-TEMP GRINDINGRESEARCH & PRODUCTION GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The CPM-6 requires adequate ventilation around its integrated air-cooled refrigeration unit to maintain stable 5–15°C chamber temperatures dependent on ambient conditions. Material compatibility between grinding jars, balls, and target samples must be verified to prevent cross-contamination and preserve sample integrity.
- Ventilation Requirement: Position the mill with sufficient clearance on all sides to allow unrestricted airflow for the compressor-based cooling system.
- Ambient Temperature Dependency: Operate the mill in a stable laboratory environment because the achievable chamber temperature range of 5–15°C depends on ambient conditions.
- Material Compatibility: Select jar and ball materials that are chemically and mechanically compatible with the target sample to avoid cross-contamination or unwanted reactions.
- Jar Loading Limit: Fill each grinding jar with material and balls to no more than two-thirds of its volume to ensure efficient planetary motion and prevent overloading.
- User Manual Consultation: Refer to the provided user manual for detailed installation, operation, and maintenance instructions before first use.
This procedure outlines the initial setup and safe operation of the CPM-6 for low-temperature grinding of temperature-sensitive materials. Follow these steps to prepare the mill, select appropriate consumables, and begin a grinding run.
Required Equipment: ATOMFAIR CPM-6 Main Grinding Unit, Grinding Jars (ordered separately), Grinding Balls (ordered separately), Brand Inverter Speed Control
- Select Compatible Consumables
Select grinding jars and balls made of materials compatible with your target sample to avoid cross-contamination. - Ensure Adequate Ventilation
Ensure the refrigeration unit has sufficient clearance on all sides for optimal cooling performance. - Load Jars with Material and Media
Load each jar with material and grinding balls up to two-thirds of the jar volume. - Secure Jars and Close Chamber
Secure the loaded jars onto the jar holders and close the chamber lid before starting. - Set Rotation Speed
Set the desired rotation speed using the brand inverter stepless speed control across the 0–670 rpm range. - Start Grinding and Stabilize Temperature
Start the mill and allow the air-cooled refrigeration system to stabilize the chamber temperature between 5–15°C.
How does ambient temperature variation affect the CPM-6's ability to maintain the 5–15°C cryogenic grinding chamber range?
The CPM-6's integrated 2P air-cooled refrigeration unit stably maintains the grinding chamber between 5–15°C, but this range is dependent on the ambient temperature differential. If laboratory temperature fluctuates significantly, the compressor-based cooling system may struggle to hold the lower end of the range. A stable lab environment with adequate ventilation around the equipment is required for consistent cryogenic performance.
What material compatibility constraints should be considered when selecting grinding jars for the CPM-6 to avoid cross-contamination?
Grinding jar and ball materials must be compatible with the target sample to prevent cross-contamination. The CPM-6 supports a range of jar materials including WC-Co, Al₂O₃, agate (natural SiO₂) for zero-metal analysis, YSZ, stainless steel, PU, ceramic, and nylon. For example, agate jars are explicitly recommended for zero-metal analysis, while YSZ or WC-Co jars are suitable for hard, abrasive materials. Jars and balls are ordered separately and must be selected based on the sample's chemical and mechanical properties.
What infrastructure and handling requirements are necessary for safe operation of the CPM-6 cryogenic planetary ball mill?
The CPM-6 requires adequate ventilation space around the unit for the air-cooled refrigeration system to function effectively. The main unit does not include grinding jars or balls—these must be ordered separately and filled to no more than two-thirds of jar volume for proper operation. The lab environment should be climatically stable to support the 5–15°C temperature control. Installation guidance and operational training are available upon request from the manufacturer.
The CPM-6 cryogenic planetary ball mill integrates a 2P air-cooled compressor providing stable 5–15°C grinding chamber temperatures, enabling ultrafine grinding (down to 0.1 μm) of temperature-sensitive materials at 6 L total volume with gear-drive torque and stepless speed control.
Positive
- Integrated Cryogenic Temperature Control (5–15°C): Compressor-based air-cooled refrigeration maintains grinding chamber at 5–15°C, rapidly removing frictional and exothermic heat for temperature-sensitive materials processing.
- Gear-Drive with Stepless Speed Regulation: Gear-driven transmission delivers robust torque for heavy loads while brand inverter enables precise 0–670 rpm stepless speed control for optimized grinding parameters.
Trade-offs
- Jars and Media Ordered Separately: Grinding jars (4×1.5 L) and balls must be purchased separately, requiring careful material selection to avoid cross-contamination and added upfront investment.
- Ambient Temperature Dependency: The 5–15°C range is contingent on ambient conditions and adequate ventilation; performance may degrade in hot or unstable laboratory environments.
