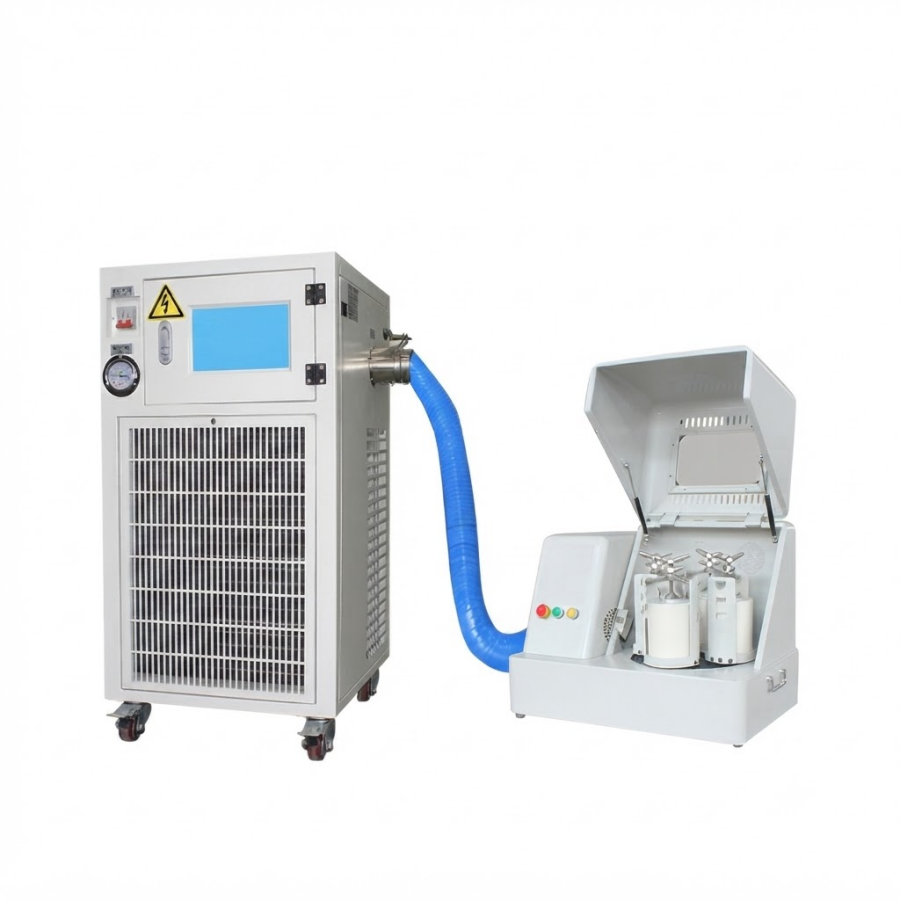

ATOMFAIR CPM-16A CRYOGENIC PLANETARY BALL MILL 5-15°C LOW-TEMP GRINDINGRESEARCH & PRODUCTION GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The CPM-16A requires ambient temperatures conducive to maintaining a 5–15°C grinding chamber; adequate ventilation around the refrigeration unit is essential for consistent cooling performance. Material compatibility of grinding jars and media must be verified against the target sample to prevent cross-contamination and preserve material properties.
- Temperature stability: The grinding chamber temperature is maintained between 5°C and 15°C, dependent on ambient temperature differential; a stable laboratory environment is required for consistent results.
- Ventilation requirement: Adequate ventilation space must be provided around the equipment to allow the air-cooled refrigeration unit to operate effectively.
- Material compatibility: Grinding jars and balls must be selected with materials compatible with the target substance to avoid cross-contamination and chemical reactions.
- Pre-operation manual review: The user manual must be consulted prior to first use for detailed installation, operation, and maintenance instructions.
- Ambient environment: Maintain a stable laboratory environment (temperature, humidity) for consistent grinding and cooling performance.
This procedure outlines the steps to safely set up and operate the CPM-16A for low-temperature grinding. Ensure all safety precautions are followed and the unit is properly ventilated before commencing operation.
Required Equipment: CPM-16A main unit, Grinding jars (ordered separately), Grinding balls (ordered separately), User manual
- Review manual
Consult the user manual for complete installation and safety instructions before operating the mill. - Verify compatibility
Verify that the selected grinding jar and ball materials are chemically compatible with your target material to avoid cross-contamination. - Ensure ventilation
Ensure adequate ventilation space around the equipment for optimal cooling performance. - Set cooling temperature
Set the integrated refrigeration unit to maintain the grinding chamber temperature within the 5–15°C range. - Load sample and media
Load the sample and appropriate grinding balls into the jars, filling no more than two-thirds of the jar volume. - Start grinding
Start the planetary motion and adjust the rotation speed using the inverter stepless control. - Monitor temperature
Monitor the grinding chamber temperature throughout operation to ensure consistent low-temperature conditions.
How does the ambient laboratory temperature affect the CPM-16A's ability to maintain the 5–15°C grinding chamber temperature during cryogenic planetary ball milling?
The integrated air-cooled refrigeration unit can stably maintain the grinding chamber between 5–15°C, but this range is dependent on the ambient temperature differential. The source explicitly states that the temperature control range is 'depending on ambient temperature differential' and recommends maintaining a stable laboratory environment for consistent results. Adequate ventilation space around the equipment is also required for optimal cooling performance.
What jar and ball material options are available for the CPM-16A to avoid cross-contamination when grinding temperature-sensitive materials like battery cathodes or ceramics?
The CPM-16A supports grinding jars and balls in multiple materials ordered separately: WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, and Nylon for jars, and corresponding ball materials. The source lists these explicitly and advises selecting materials compatible with the target material to avoid cross-contamination. For battery materials like lithium cobalt oxide or lithium manganese oxide, alumina (Al₂O₃), yttria-stabilized zirconia (YSZ), or agate are commonly used options.
What are the laboratory space and ventilation requirements for installing the CPM-16A with its integrated 3P air-cooled refrigeration unit?
The CPM-16A main unit measures 950×600×710 mm and weighs 205 kg, as stated in the specification table. The integrated 3P air-cooled refrigeration unit requires adequate ventilation space around the equipment for optimal cooling performance. The temperature control range of 5–15°C depends on ambient conditions, so a stable laboratory environment with sufficient airflow is recommended for consistent cryogenic grinding results.
The CPM-16A cryogenic planetary ball mill integrates a 3 kW gear-drive with an air-cooled refrigeration unit to maintain 5–15°C grinding chamber temperature, enabling ultrafine grinding down to 0.1 μm for temperature-sensitive materials in a 16 L total volume (4 × 4 L jars).
Positive
- Integrated cryogenic temperature control: Compressor-based air-cooled refrigeration system stably maintains grinding chamber between 5–15°C, critical for preserving physicochemical properties of temperature-sensitive materials during high-energy milling.
- Gear drive with stepless speed control: 3 kW gear-driven transmission delivers robust torque for heavy loads, while brand inverter enables precise 0–510 rpm regulation for optimized grinding parameters across diverse materials.
Trade-offs
- Jars and media ordered separately: Grinding jars (4 × 4 L) and balls are not included with the main unit, requiring additional procurement and careful material compatibility selection to avoid cross-contamination.
- Temperature range depends on ambient conditions: The 5–15°C control range is relative to ambient temperature; consistent results require a stable laboratory environment and adequate ventilation around the refrigeration unit.
