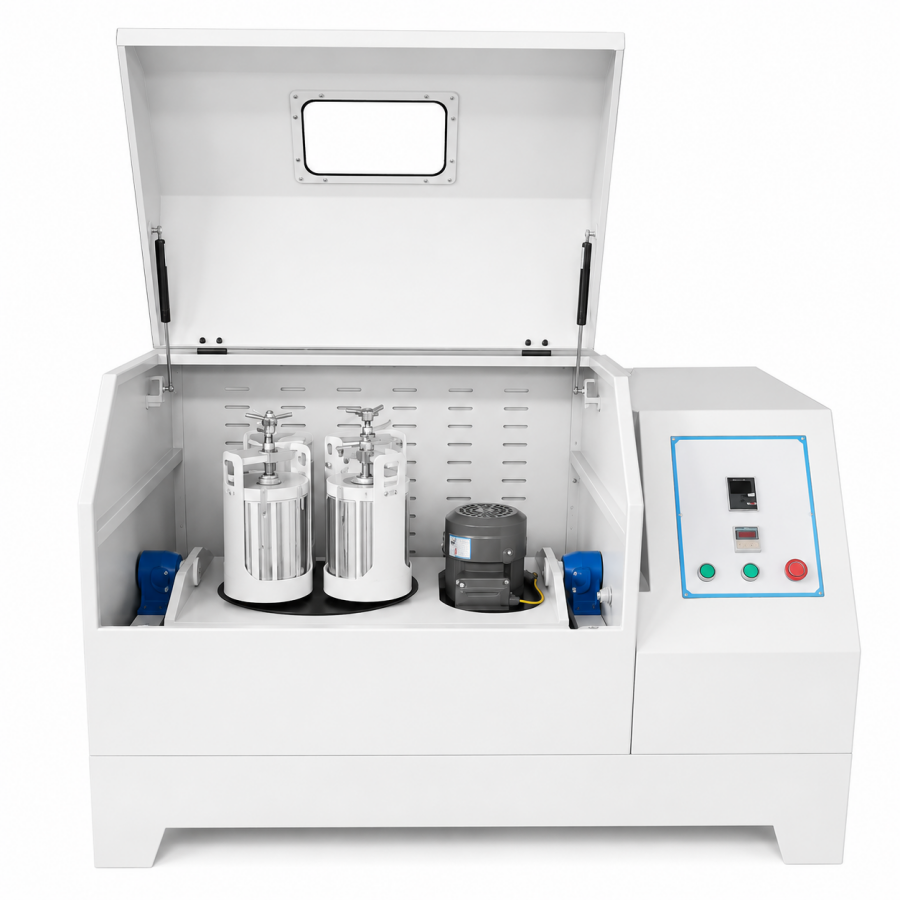

OPBM-40 360° ROTATING PLANETARY BALL MILL 5.5KW OMNIDIRECTIONALLABORATORY & PRODUCTION GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The OPBM-40 requires adequate clearance space around the equipment for safe 360° rotation of its overturning mechanism. The user must consult the official manual before first operation and ensure that all safety features, including the brake-locking overturn motor, are functional.
- Clearance Requirement: Adequate clearance must be maintained around the mill to allow unobstructed 360° rotation of the planetary disk.
- Electrical Requirement: The mill requires a stable electrical supply compatible with its 5.5kW motor and inverter speed control.
- Pre-Operation Documentation: The user must read and follow the provided user manual before initial operation.
- Brake-Locking Safety: The brake-locking overturn motor must be engaged to safely stop the rotating disk at any angle.
- Loading Capacity: The maximum loading of material and grinding balls must not exceed two-thirds of the jar volume.
This procedure outlines the safe initialization and operation of the OPBM-40 omnidirectional planetary ball mill. Follow these steps to configure grinding parameters and engage the safety systems.
Required Equipment: Grinding jars (ordered separately), Grinding balls (ordered separately), User manual
- Clearance Check
Verify that adequate clearance exists around the mill for unobstructed 360° rotation. - Manual Review
Read the user manual thoroughly before proceeding with any operation. - Jar Loading
Load grinding jars with material and grinding balls up to two-thirds of jar volume. - Parameter Configuration
Set rotation speed, timing, and forward/reverse alternation via the touchscreen interface. - Start Grinding
Initiate the grinding cycle by pressing start on the control panel. - Stop Safely
Engage the brake-locking overturn motor to stop the rotating disk at any desired angle. - Unload Jars
After complete stop, carefully remove grinding jars and collect processed material.
How does the 360° overturning planetary disk on the OPBM-40 improve grinding uniformity compared to conventional planetary ball mills?
The 360° overturning mechanism provides full grinding coverage inside the jars, eliminating material sedimentation and wall adhesion to produce finer, more uniform powder. This is achieved through a vertical planetary structure with a Φ430 mm jar orbit diameter and gear drive transmission at jar rotation speeds of 0–390 rpm. The design ensures consistent energy transfer and reduces common issues of non-uniform milling seen in fixed-angle planetary mills.
What jar and grinding media materials are compatible with the OPBM-40 to avoid cross-contamination during ultra-fine milling?
The OPBM-40 accepts jars and grinding balls in materials including WC-Co, Al₂O₃, agate, YSZ, stainless steel, polyurethane, ceramic, and nylon, all ordered separately. Users must select materials that are chemically compatible with their target powder to avoid cross-contamination. Each jar holds up to 10 L (40 L total for 4 jars), and the maximum loading is two-thirds of the jar volume.
What spatial and infrastructure requirements are needed to safely operate the OPBM-40 with its 360° overturning mechanism?
The overturning mechanism requires adequate clearance space around the equipment for safe 360° rotation. The unit measures 1900×1450×1480 mm and weighs 1430 kg, necessitating a sturdy, level floor and sufficient access for maintenance. The 5.5 kW motor uses gear drive with inverter stepless speed control, and the brake-locking overturn motor allows safe stopping at any angle.
The OPBM-40 omnidirectional planetary ball mill delivers a 5.5 kW gear drive with 360° overturning to eliminate sedimentation and wall adhesion, achieving discharge sizes down to 0.1 μm from ≤3 mm feed (≤10 mm for soil). Its 40 L total capacity (10 L per jar) and 0–390 rpm jar speed suit mid-scale R&D and small-batch production, but the 1430 kg unit requires dedicated floor space and separate procurement of jars and media.
Positive
- 360° overturning eliminates sedimentation: The planetary disk rotates fully during operation, preventing material settling and wall adhesion for more uniform grinding and finer discharge down to 0.1 μm.
- High-torque gear drive with inverter control: A 5.5 kW gear drive with stepless speed regulation (0–390 rpm) provides stable, low-noise operation and precise speed adjustment via touchscreen, including forward/reverse alternation and power-off memory.
Trade-offs
- Requires separate jar and media purchase: Grinding jars and balls are not included; users must order compatible materials (e.g., Al₂O₃, YSZ, agate) separately, adding procurement steps and potential cross-contamination risk if mismatched.
- Large footprint and clearance needed for rotation: At 1900×1450×1480 mm and 1430 kg, the unit demands substantial floor space and adequate clearance around the equipment to safely accommodate the 360° overturning mechanism.
