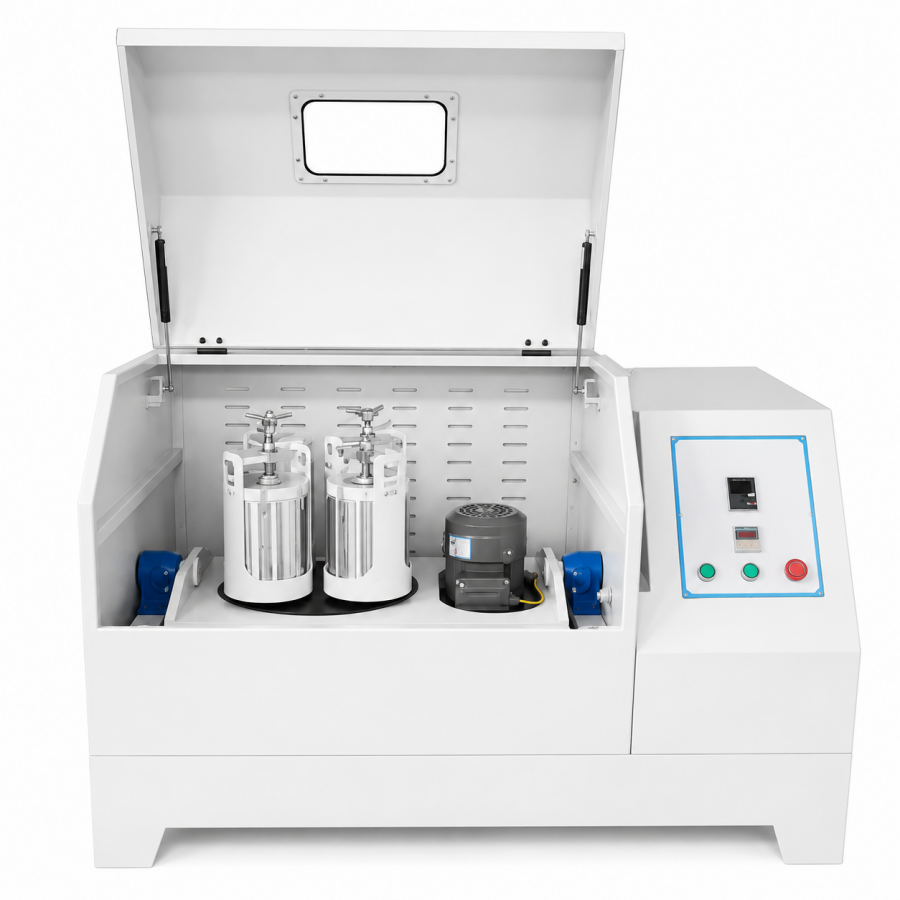

OPBM-16 360° ROTATING PLANETARY BALL MILL 3KW OMNIDIRECTIONALLABORATORY & PRODUCTION GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The OPBM-16 requires adequate clearance space for its 360° overturning mechanism to operate safely. Material compatibility between jar, media, and sample must be verified to prevent cross-contamination and equipment damage.
- Clearance Requirement: Ensure the mill is placed with enough open area to allow uninterrupted 360° rotation of the planetary disk.
- Material Compatibility: Select jar and ball materials that are chemically inert toward the target material to avoid contamination and corrosion.
- Maximum Load: Never exceed two-thirds of the jar volume when loading material and grinding balls to maintain proper grinding dynamics.
- Feed Size Limit: Feed particles must be ≤3 mm (or ≤10 mm for soil) to prevent jamming and damage to the mill.
The OPBM-16 is a high-energy planetary ball mill with a 360° overturning mechanism for ultra-fine grinding. Proper installation of jars and media, parameter setting, and safe stopping procedures are critical.
Required Equipment: Grinding jar set (ordered separately), Grinding media (ordered separately)
- Clearance Check
Confirm that the mill is positioned with sufficient clearance for safe 360° rotation of the overturning mechanism. - Jar and Media Installation
Install compatible grinding jars and fill each to two-thirds volume with material and appropriate grinding media. - Parameter Setting
Set the desired rotation speed and grinding time using the touchscreen interface. - Rotation Mode Selection
Enable forward/reverse alternation if required for your grinding protocol. - Start Grinding
Initiate the grinding process and monitor the operation via the touchscreen display. - Safe Stopping
Activate the brake-locking overturn motor to stop the disk at a safe angle before unloading jars.
How does the 360° overturning mechanism in the OPBM-16 improve grinding uniformity compared to standard planetary mills, and what is the recommended jar loading ratio?
The 360° overturning planetary disk eliminates material sedimentation and wall adhesion by providing full grinding coverage inside jars, producing finer and more uniform powder. The maximum loading for material and grinding balls combined is two-thirds of the jar volume, as specified in the general technical parameters.
What grinding jar and ball material options are available for the OPBM-16, and how do I select the correct combination to avoid cross-contamination?
The OPBM-16 supports jars in WC-Co, Al2O3, Agate, YSZ, SS, PU, Ceramic, and Nylon, with grinding balls available in corresponding materials plus IC-PU. Selection must be based on target material compatibility: for example, agate (natural SiO2) jars are used for zero-metal analysis, while YSZ or Al2O3 are chosen for oxide-based samples to avoid contamination.
What clearance and infrastructure are required for safe installation and operation of the OPBM-16 with its 360° rotation?
The overturning mechanism requires adequate clearance space around the equipment to allow safe 360° rotation. The unit weighs 580 kg with dimensions of 1530×1018×1100 mm, so a stable floor capable of supporting the weight and sufficient surrounding space are necessary. The brake-locking overturn motor enables safe stopping at any angle during operation.
The OPBM-16 is a 3 kW omnidirectional planetary ball mill with a 360° overturning disk that eliminates material sedimentation and wall adhesion, achieving final particle sizes down to 0.1 μm from feed sizes ≤3 mm (≤10 mm for soil). Its gear drive and inverter stepless speed regulation provide stable, low-noise operation, but the 580 kg net weight and requirement for adequate clearance around the equipment for safe 360° rotation impose significant laboratory infrastructure demands.
Positive
- 360° overturning eliminates sedimentation and adhesion: The omnidirectional planetary disk provides full 360° grinding coverage inside jars, preventing material sedimentation and wall adhesion, which improves powder uniformity and grinding efficiency.
- Gear drive with inverter stepless speed control: The gear drive transmission with brand inverter stepless speed regulation ensures stable, low-noise high-speed operation and precise speed adjustment from 0 to 510 rpm.
Trade-offs
- Requires adequate clearance for 360° rotation: The overturning mechanism needs sufficient clearance space around the equipment to safely perform full 360° rotation, which may constrain placement in crowded laboratories.
- Heavy unit at 580 kg net weight: With a net weight of 580 kg and dimensions of 1530×1018×1100 mm, the mill requires a reinforced floor and appropriate lifting equipment for installation and relocation.
