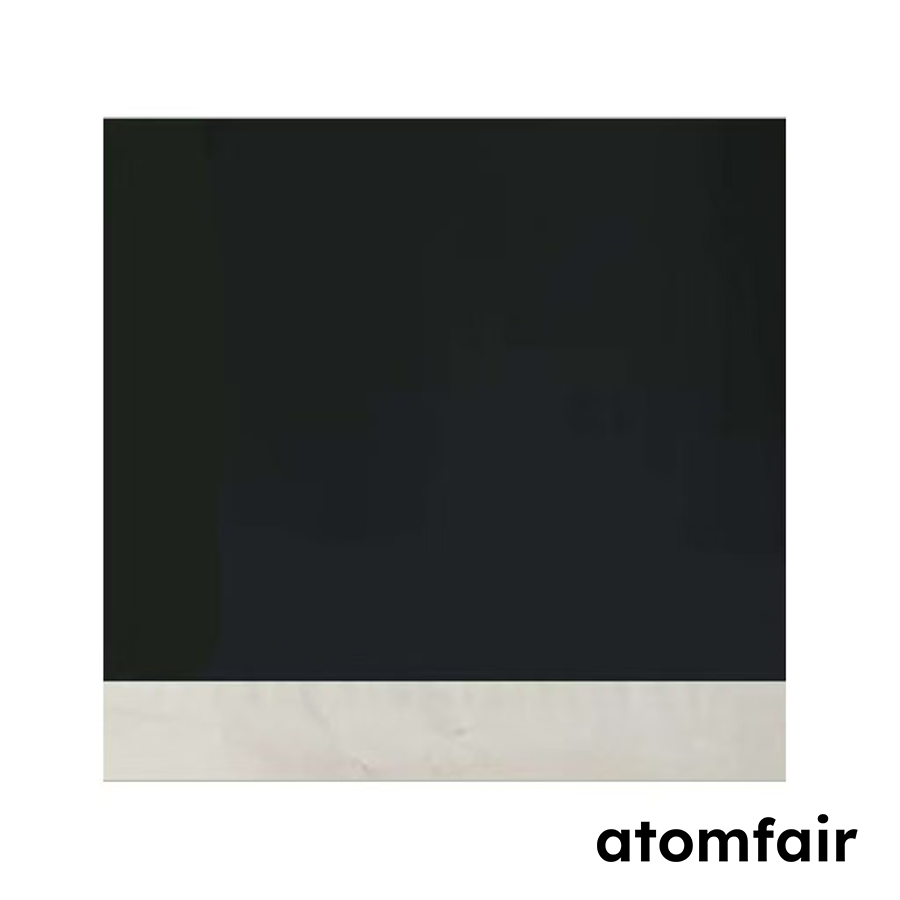

ATOMFAIR® NI90-S01 HIGH-NICKEL NICKEL-COBALT-MANGANESE LITHIUM OXIDE ELECTRODE SHEETRESEARCH GRADE MATERIAL
|
||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||
|
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
|
This document outlines critical environmental and safety constraints for the Atomfair Ni90-S01 single-sided cathode electrode sheet. Proper inert atmosphere storage and moisture avoidance are essential to prevent degradation and maintain electrochemical performance.
- Atmospheric protection: Store the electrode sheet in a sealed container under inert gas to prevent moisture absorption and oxidation of the nickel-rich active material.
- Short circuit prevention: Keep the sheet isolated from conductive surfaces and use non-conductive handling tools to avoid electrical short circuits.
- Contamination control: Handle the electrode with clean, lint-free gloves and in a clean environment to prevent particle contamination of the coating.
- Thermal stability: Avoid exposure to elevated temperatures that could degrade the polymer binder or accelerate unwanted side reactions in the active material.
This guide provides recommended steps for safely handling the high-nickel cathode sheets and preparing them for electrochemical testing. Follow these procedures to ensure material integrity and minimize contamination.
Required Equipment: Argon-filled glovebox, Ceramic scissors or die cutter, Vacuum oven, Coin cell crimping tool
- Visual inspection
Inspect the electrode sheet for any visible defects such as cracks, pinholes, or delamination before any further handling. - Transfer to inert atmosphere
Transfer the inspected sheet into an argon-filled glovebox to prevent moisture and oxygen exposure during subsequent processing. - Cut electrode discs
Cut the sheet into individual electrode discs using a clean die cutter or ceramic scissors to match the desired coin cell dimensions. - Dry electrode discs
Dry the cut electrode discs in a vacuum oven at moderate temperature to remove residual moisture and any processing solvents. - Assemble coin cell
Assemble the coin cell in the glovebox using the dried cathode disc, appropriate separator, and electrolyte under inert atmosphere.
How does the single-sided coating configuration of the Ni90-S01 electrode influence cell assembly and areal capacity compared to double-sided electrodes?
Single-sided coating simplifies alignment for half-cell or pouch cell assembly but reduces total areal capacity per unit area compared to double-sided coatings. The coating area of 130×140 mm on a 160×160 mm substrate provides adequate margin for tabbing and sealing in standard R&D cell formats.
What pre-treatment steps are required before using the Ni90-S01 electrode in a coin cell assembly?
The electrode must be vacuum baked at 100°C for 12 hours prior to assembly to remove adsorbed moisture and residual solvent from the wet coating process. This step is mandatory to prevent water-induced degradation of the high-nickel NCM active material during electrochemical testing.
What handling and storage conditions are recommended for the Ni90-S01 electrode to maintain its electrochemical integrity?
Store the electrode in a dry, inert atmosphere such as an argon-filled glovebox to minimize moisture and CO2 exposure, which can cause surface degradation of the high-nickel cathode. Always handle with gloves and perform the specified vacuum baking at 100°C for 12 hours immediately before use to ensure reproducible performance.
This Ni90 single-sided cathode sheet features a 97.4% active material loading at 16.8 mg/cm² via wet coating on carbon-coated aluminum foil, delivering 200 mAh/g capacity for reliable Li-ion R&D, though requiring vacuum baking at 100°C for 12 hours and careful handling due to single-sided configuration.
Positive
- High active material loading: Active material ratio of 97.40% maximizes energy density per unit mass, enabling robust electrochemical performance analysis in lab-scale cells.
- Precise wet-process coating: Uniform coating density of 16.8 mg/cm² ensures consistent electrode architecture for reproducible R&D testing and material evaluation.
Trade-offs
- Single-sided coating constraint: Single-sided deposition requires careful alignment in full-cell assembly, doubling material needed for symmetric electrodes and adding handling complexity.
- Mandatory vacuum drying protocol: Electrode sheets must undergo vacuum baking at 100°C for 12 hours before use, imposing strict scheduling and oven capacity requirements in the lab.
