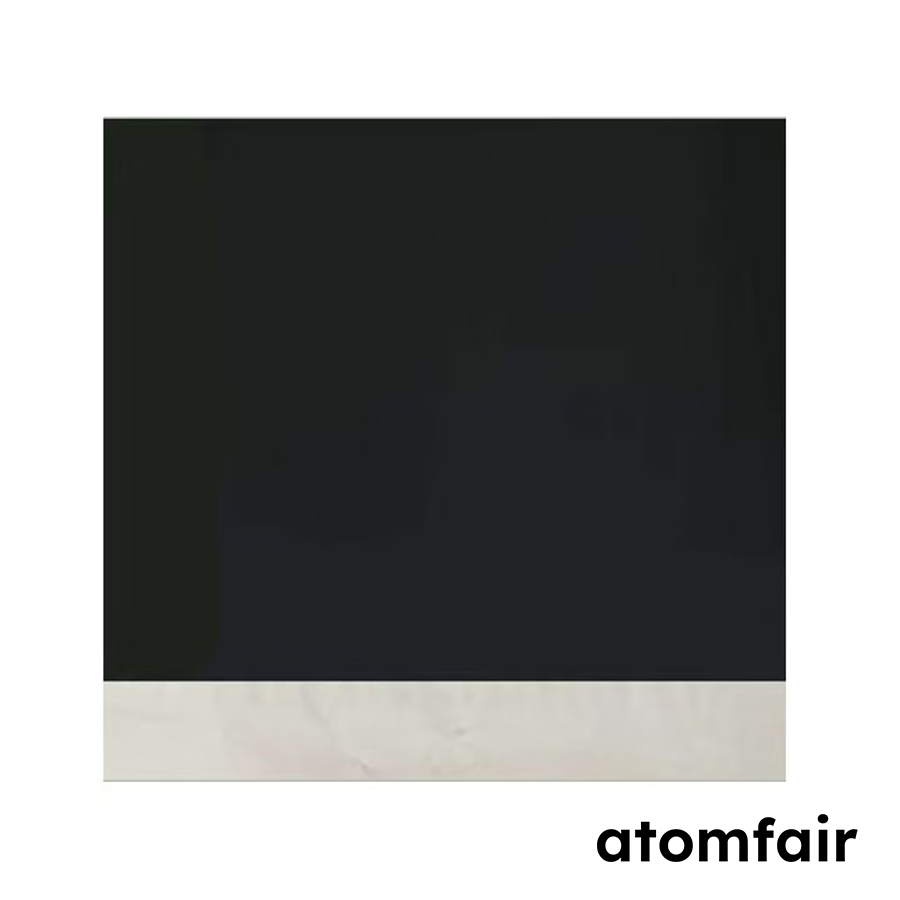

ATOMFAIR® LMR-S03 LITHIUM-RICH MANGANESE-BASED CATHODE (LMR) ELECTRODE SHEETRESEARCH GRADE MATERIAL
|
||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||
|
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
|
How does the 35 mg/cm² active material loading from dry processing influence the electrochemical rate capability and cycling stability of the LMR-S03 cathode?
The 35 mg/cm² high loading is balanced by the dry process, which ensures superior electrode film cohesion and uniform coating thickness control. The carbon-coated aluminum foil substrate minimizes interfacial contact resistance and contact polarization, supporting long-term cycling stability. This design enables the 300 mAh/g capacity without requiring solvent-related processing compromises.
Can the LMR-S03 single-sided cathode be paired directly with a lithium metal anode in a coin cell configuration for full-cell testing?
Yes, the single-sided coating on a 12 μm carbon-coated aluminum foil current collector is compatible with standard coin cell assembly using a lithium metal counter electrode. The 90×120 mm coating area allows punching of 14-16 mm diameter electrodes for typical coin cells. Preconditioning requires 12 hours vacuum baking at 100°C before cell assembly to remove adsorbed moisture and ensure consistent electrolyte wetting.
What are the critical vacuum drying conditions required before using the LMR-S03 cathode sheets in an electrochemical test?
Standard electrode conditioning requires vacuum baking at 100°C for 12 hours to remove moisture and stabilize the electrode structure. The carbon-coated aluminum foil substrate is sensitive to excessive heat, so this temperature should not be exceeded. Post-baking, electrodes must be stored in an inert or dry atmosphere to prevent re-adsorption of water before cell assembly.
The Atomfair LMR-S03 electrode sheet delivers a 35 mg/cm² dry-process coating with 96% active material and 300 mAh/g capacity, enabling consistent high-loading cathode studies; however, users must account for a mandatory 12-hour vacuum baking step at 100°C prior to use and the single-sided coating design, which requires back-to-back pairing for full-cell architectures.
Positive
- High active material ratio and capacity: With 96% active material and 300 mAh/g design capacity, this cathode sheet provides high energy density for lithium-ion battery R&D and material validation.
- Uniform dry-process coating: The advanced dry process ensures consistent 35 mg/cm² loading, superior film cohesion, and robust electrode structure for reproducible electrochemical testing.
Trade-offs
- Mandatory vacuum baking before use: The electrode requires a 12-hour vacuum bake at 100°C as a standard conditioning step, adding preparation time and oven capacity demands.
- Single-sided coating limits cell assembly: Coated on one side only, the sheet is best suited for half-cell or single-electrode studies; full cells require pairing two sheets back-to-back, increasing assembly complexity.
