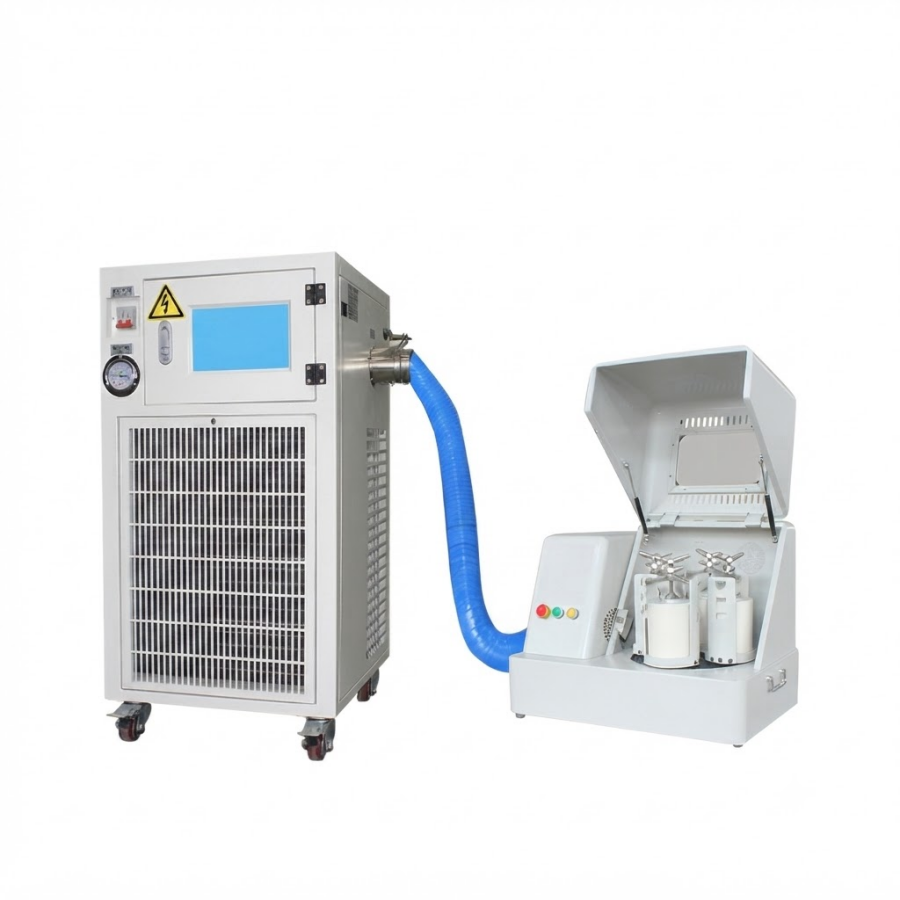

ATOMFAIR CPM-200 CRYOGENIC PLANETARY BALL MILL 5-15°C LOW-TEMP GRINDINGPRODUCTION GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR PRODUCTION
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The CPM-200 requires adequate ventilation around the equipment for optimal cooling performance. Temperature stability between 5–15°C depends on ambient laboratory conditions and proper material compatibility selection for jars and grinding media.
- Ventilation Requirement: The refrigeration unit requires adequate ventilation space around the equipment for optimal cooling performance.
- Ambient Temperature Dependence: The temperature control range of 5–15°C is dependent on ambient temperature conditions; maintain a stable laboratory environment.
- Material Compatibility: Select jar and ball materials compatible with your target material to avoid cross-contamination.
- Jar Loading Capacity: Load material up to two-thirds of jar volume for efficient batch processing.
- User Manual Reference: Consult the user manual prior to first use for detailed installation, operation, and maintenance instructions.
This procedure describes safe initialization and operation of the CPM-200 cryogenic planetary ball mill for low-temperature grinding. Follow these steps to set up the mill, select appropriate grinding media, and begin processing temperature-sensitive materials.
Required Equipment: Grinding jars (ordered separately), Grinding balls (ordered separately), Refrigeration unit (integrated), Inverter speed controller
- Inspect ventilation
Inspect the installation area to ensure adequate ventilation space around the mill for optimal cooling performance. - Select grinding media
Select grinding jars and balls made of materials compatible with your target sample to prevent cross-contamination. - Install jars
Install up to four 50 L grinding jars onto the jar holders, ensuring they are securely fastened. - Load material
Load the material into each jar up to two-thirds of its volume for efficient grinding. - Set speed
Set the desired rotation speed using the inverter stepless speed control within the 0–215 r/min range. - Start refrigeration
Start the integrated air-cooled refrigeration unit and allow the chamber temperature to stabilize between 5–15°C. - Begin grinding
Begin the grinding operation and monitor temperature throughout the process, adjusting speed if necessary.
What is the maximum achievable particle size reduction for the CPM-200 cryogenic planetary ball mill when processing temperature-sensitive materials like lithium cobalt oxide?
The CPM-200 can achieve final particle sizes down to 0.1 μm, depending on material and process parameters. This ultrafine output is supported by the 22 kW gear-drive motor operating at 0–215 r/min with a 738 mm revolution diameter, and the integrated 5P air-cooled refrigeration unit maintains the grinding chamber at 5–15°C to preserve material properties during extended milling.
Can the CPM-200 be used with grinding jars made of materials other than the standard options, and what are the compatibility constraints for jar selection?
The CPM-200 accepts 4 standard 50 L grinding jars with a 460 mm jar holder ID, and available jar materials include WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, and Nylon. Jar and ball materials must be selected to be chemically compatible with the target material to avoid cross-contamination, as the source explicitly states that jars and balls are ordered separately and material selection is critical for purity.
What are the infrastructure and ventilation requirements for installing the CPM-200 with its integrated 5P air-cooled refrigeration unit?
The CPM-200 requires adequate ventilation space around the equipment for optimal cooling performance, as the 5P air-cooled refrigeration unit relies on ambient air circulation to maintain the 5–15°C grinding chamber temperature. The unit dimensions are 2670×1600×2804 mm and it weighs 2725 kg, so a stable, well-ventilated laboratory or production floor environment is necessary, and the temperature control range depends on ambient conditions.
The CPM-200 combines a 22 kW gear-drive planetary ball mill with an integrated 5P air-cooled refrigeration unit for low-temperature (5-15°C) ultrafine grinding down to 0.1 μm, supporting 200 L total volume across four 50 L jars. The gear-driven transmission with inverter speed control provides robust torque for heavy loads, but the system requires adequate ventilation and stable ambient conditions for optimal cooling performance.
Positive
- Integrated 5P Air-Cooled Cryogenic Refrigeration: Maintains stable 5-15°C grinding chamber temperature via compressor-based cooling, enabling ultrafine grinding of temperature-sensitive materials without thermal degradation during high-energy planetary milling.
- Industrial-Scale 200 L Total Volume Capacity: Supports four 50 L grinding jars for a total volume of 200 L, allowing high-throughput batch processing while maintaining consistent cryogenic conditions across all jars for production-scale material synthesis.
Trade-offs
- Ambient Temperature and Ventilation Dependency: The 5-15°C operating range is maintained relative to ambient conditions; a stable laboratory environment and adequate ventilation space around the equipment are required for consistent cooling performance.
- Separate Grinding Media Procurement Required: Grinding jars and balls are ordered separately from the main unit, requiring careful material compatibility selection to avoid cross-contamination and adding an extra procurement step before operation.
