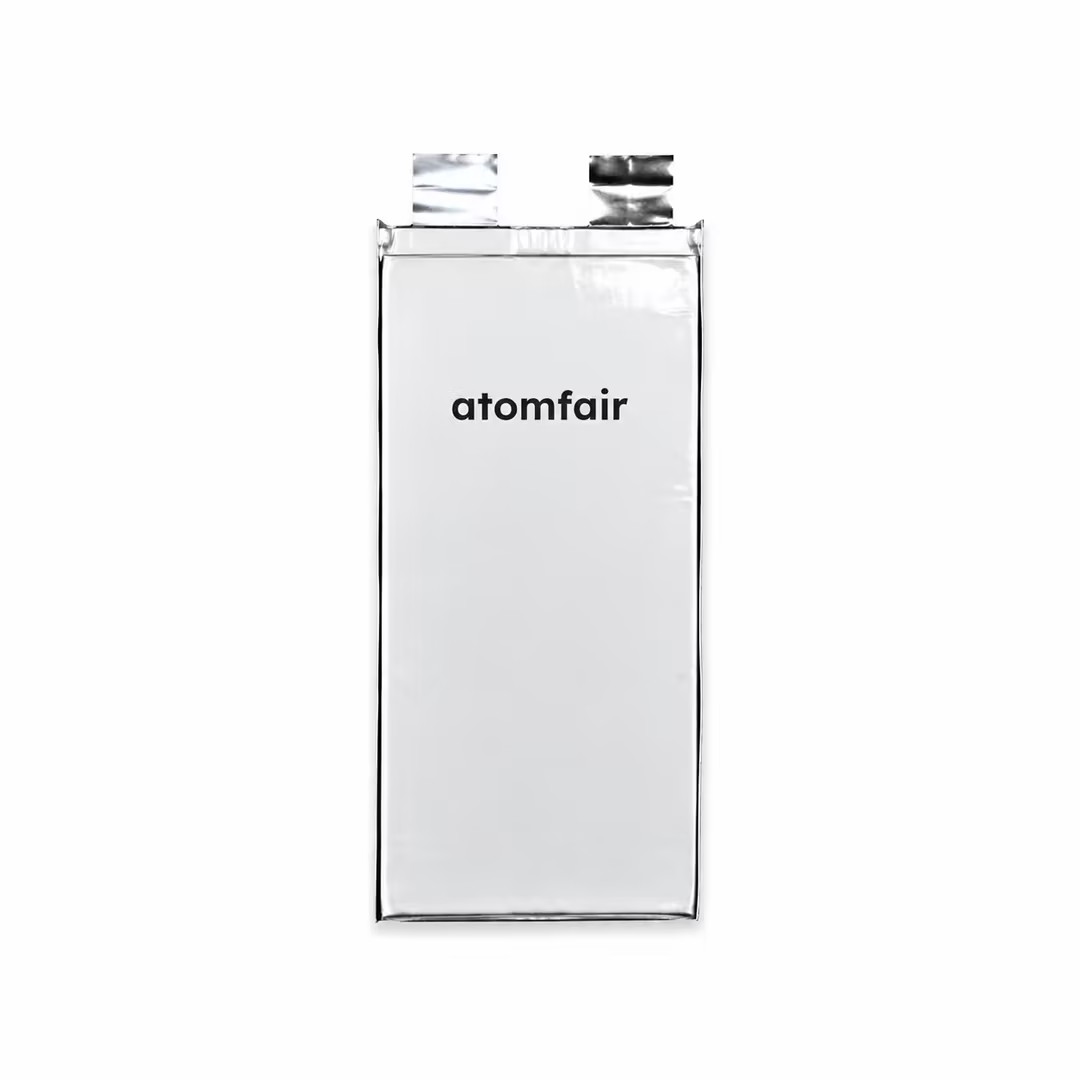

High-Energy-Density Power-Type Semi-Solid Battery – Baseline Series | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||
These semi-solid lithium-ion pouch cells contain flammable electrolyte and must be handled with caution. Storage and operation must adhere to the specified temperature range to maintain safety and performance.
- Temperature Constraint: Operate and store the battery only within the -40°C to 60°C temperature range to prevent irreversible capacity fade and safety hazards.
- Mechanical Constraint: Avoid puncturing, crushing, or bending the pouch cell to prevent internal short circuits and electrolyte leakage.
- Electrical Constraint: Never exceed the maximum continuous discharge current or apply reverse polarity to avoid thermal runaway.
- Charge Constraint: Use a compatible lithium-ion battery charger with overvoltage and overcurrent protection to ensure safe charging.
How does the semi-solid electrolyte design affect the trade-off between energy density and cycle life under high-rate discharge conditions?
The semi-solid electrolyte reduces internal resistance, enabling 5C continuous and 7C pulse discharge while maintaining ≥800 cycles to 80% SOH. This design achieves 300–370 Wh/kg energy density without the cycle life penalty typically seen in high-power liquid electrolyte cells, as the semi-solid matrix improves mechanical stability and reduces electrode degradation during high-rate cycling.
Can the AFEPSB10674172 or AFEPSB11087188 pouch cells be integrated into existing battery management systems designed for conventional lithium-ion pouch formats?
Yes, both models operate at a nominal voltage of 3.65 V with a standard operating window of 2.75 V to 4.2 V, making them electrically compatible with most BMS platforms designed for LFP or NMC pouch cells. However, the semi-solid electrolyte requires a BMS with overcurrent and low-temperature protection, as specified in the product notice, to prevent performance degradation under extreme conditions.
What are the specific storage and preconditioning requirements for these semi-solid pouch cells before first use?
Cells must be stored in moisture-barrier vacuum-sealed aluminum foil bags within anti-static cartons to prevent electrolyte contamination. Before the first high-rate discharge, precondition at 25°C to stabilize internal chemistry. Avoid sustained temperatures above 60°C during storage or operation, as the semi-solid electrolyte's mechanical integrity is optimized within the -40°C to 60°C range.
The Baseline Series semi-solid batteries deliver a compelling combination of high energy density (300–370 Wh/kg) and sustained power capability (5C continuous, 7C pulse), making them suitable for eVTOL, robotics, and high-performance EVs; however, they require strict voltage (2.75–4.2 V) and thermal management (avoid sustained >60°C) along with mandatory BMS and pre-conditioning for reliable operation.
Positive
- High Energy Density Range: 300–370 Wh/kg enables lightweight, compact pack designs for energy-constrained applications such as UAVs and portable energy storage.
- High Power Discharge Capability: Supports 5C continuous and 7C pulse discharge (3 minutes) for demanding power applications like power tools and eVTOL.
Trade-offs
- Voltage and Temperature Limits: Must operate within 2.75–4.2 V and avoid sustained temperatures above 60°C to prevent degradation or safety issues.
- Mandatory BMS and Pre-conditioning: Requires a BMS with overcurrent and low-temperature protection; cells must be pre-conditioned at 25°C before first high-rate discharge.
