Description

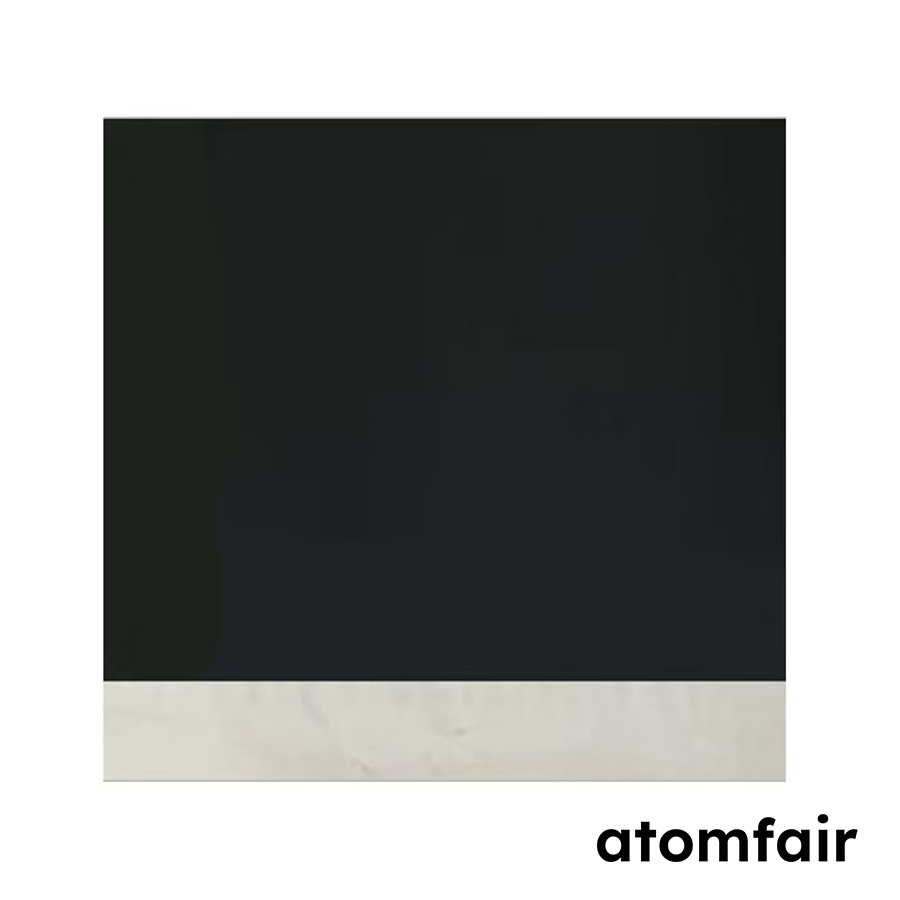

ATOMFAIR® NFPP-S04 SODIUM IRON PHOSPHATE PYROPHOSPHATE (NFPP) ELECTRODE SHEETRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Store in a dry, inert atmosphere (e.g., argon-filled glovebox) to prevent moisture absorption and maintain electrochemical performance. Handle sheets with clean, non-abrasive tools to avoid damaging the coating or substrate.
- Moisture Sensitivity: Exposure to ambient air for more than 10 minutes can degrade the active material, leading to capacity loss.
- Mechanical Integrity: Bending or creasing the electrode sheet may cause coating delamination from the carbon-coated aluminum foil substrate.
- Contamination Control: Use only in a cleanroom environment (ISO 5 or better) to avoid particulate contamination that affects cell performance.
What are the recommended drying conditions for the NFPP-S04 electrode sheet before cell assembly?
The electrode sheet requires vacuum baking at 100°C for exactly 12 hours to remove moisture and ensure optimal electrochemical performance. This is a critical preconditioning step before any cell assembly or electrochemical testing.

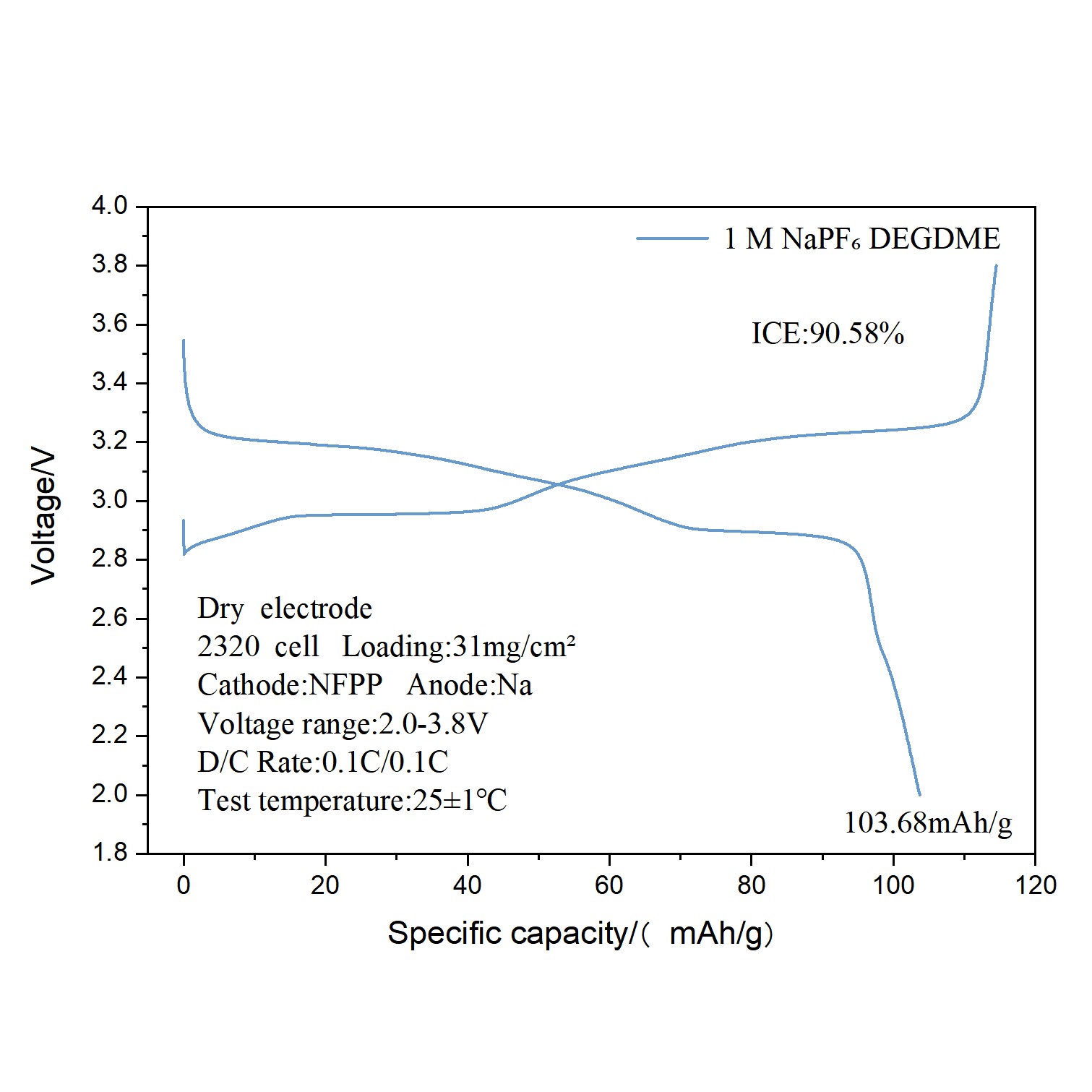

Given the 31 mg/cm² coating density and 95 mAh/g capacity, what is the expected areal capacity of this single-side NFPP electrode?
With an active material ratio of 94.5%, the areal capacity is approximately 2.78 mAh/cm² (31 mg/cm² × 0.945 × 95 mAh/g). This high loading enables significant areal capacity, though it may introduce trade-offs in rate performance and electrode resistance that researchers must evaluate for their specific cell design.
Is this single-side coated NFPP electrode compatible with standard sodium-ion battery cathode formulations and electrolyte systems?
Yes, the electrode is designed for sodium-ion battery R&D using NFPP as the cathode active material. The carbon-coated aluminum foil substrate ensures compatibility with common sodium-based electrolytes, and the 94.5% active material ratio allows direct integration into half-cell or full-cell configurations after vacuum baking at 100°C for 12 hours.
The NFPP-S04 electrode sheet offers a 94.5% active material ratio and 31 mg/cm² loading via dry processing, enabling high-capacity sodium-ion cell testing, but requires 12-hour vacuum baking at 100°C before use and is limited to single-sided coating.
Positive
- High active material loading: With a 94.5% active material ratio and 31 mg/cm² coating density, this electrode provides high areal capacity for sodium-ion battery R&D, enabling meaningful electrochemical performance analysis.
- Dry process coating consistency: The dry coating process eliminates solvent-related variability and ensures uniform electrode structure, improving reproducibility in laboratory testing and material evaluation.
Trade-offs
- Requires vacuum baking before use: The electrode sheets must be vacuum-baked at 100°C for 12 hours prior to cell assembly, adding preparation time and requiring appropriate vacuum oven infrastructure.
- Single-sided coating only: Coating is applied to one side of the carbon-coated aluminum foil, which may limit cell design flexibility and energy density compared to double-sided coated electrodes.
