How does the 18 mg/cm² coating density of the NFM111-S04 affect rate capability and capacity retention in sodium-ion cells?

The 18 mg/cm² loading with 95.30% active material provides a high areal capacity, but the thicker electrode may reduce rate capability due to increased ion diffusion pathlengths. The specified capacity is 125 mAh/g, and the compaction density of 2.08 g/cm³ defines the minimal porosity for electrolyte wetting. Researchers should expect lower capacity retention at high C-rates compared to lower loadings, and the 12-hour 100°C vacuum bake is essential to avoid parasitic reactions from residual moisture.

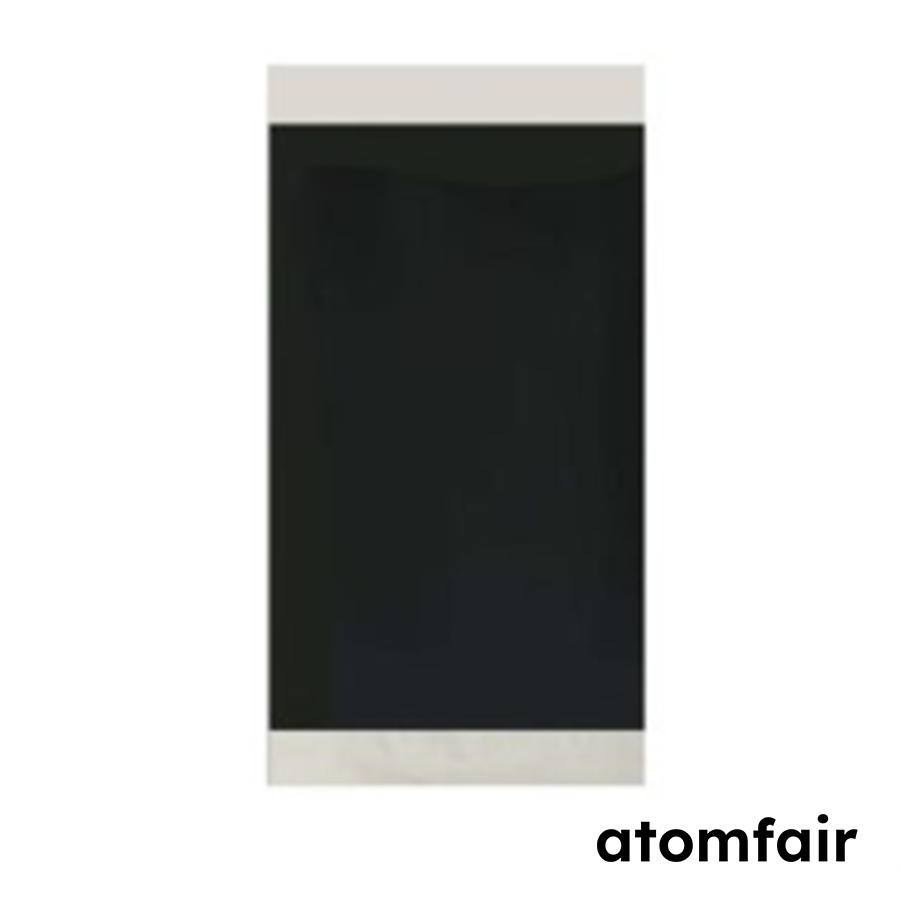

Can the NFM111-S04 single-sided cathode be used directly in full-cell sodium-ion pouch cells, or does it require additional processing?

The single-sided coating on a 12 μm carbon-coated aluminum foil (with 0.5 μm carbon layers on each side) is suitable for full-cell assembly, but the exposed aluminum backside may require an insulating layer or careful electrode stacking to avoid short circuits. The coating area is 150×110 mm on a 184×110 mm substrate, leaving a 17 mm tab on one side for current collection. Ensure the anode is oversized relative to the cathode to prevent sodium plating, and verify electrolyte compatibility with the carbon coating.

What are the critical storage and handling requirements for NFM111-S04 electrodes to prevent performance degradation?

NFM111 is moisture-sensitive; the electrodes must be dried under vacuum at 100°C for 12 hours prior to use. Store sealed in an inert atmosphere (argon or nitrogen) to avoid capacity loss from the 125 mAh/g specification. The carbon-coated aluminum substrate provides some protection against oxidation, but prolonged air exposure will degrade electrochemical performance. Handle in a glovebox under inert atmosphere.
