ATOMFAIR® Storage Cabinet 100kW 215kWh for low-temperature mining truck battery pack applications and controlled laboratory

LFP C&I Energy Storage Cabinet 100kW 215kWh ATOMFAIR®

$29,810.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

LFP C&I energy storage cabinet with 100 kW power, 215 kWh capacity, 768 V rated voltage, IP55 protection, and -35°C to 60°C operation. Order now.

Category:
Tags: , ,
Brands:

Description

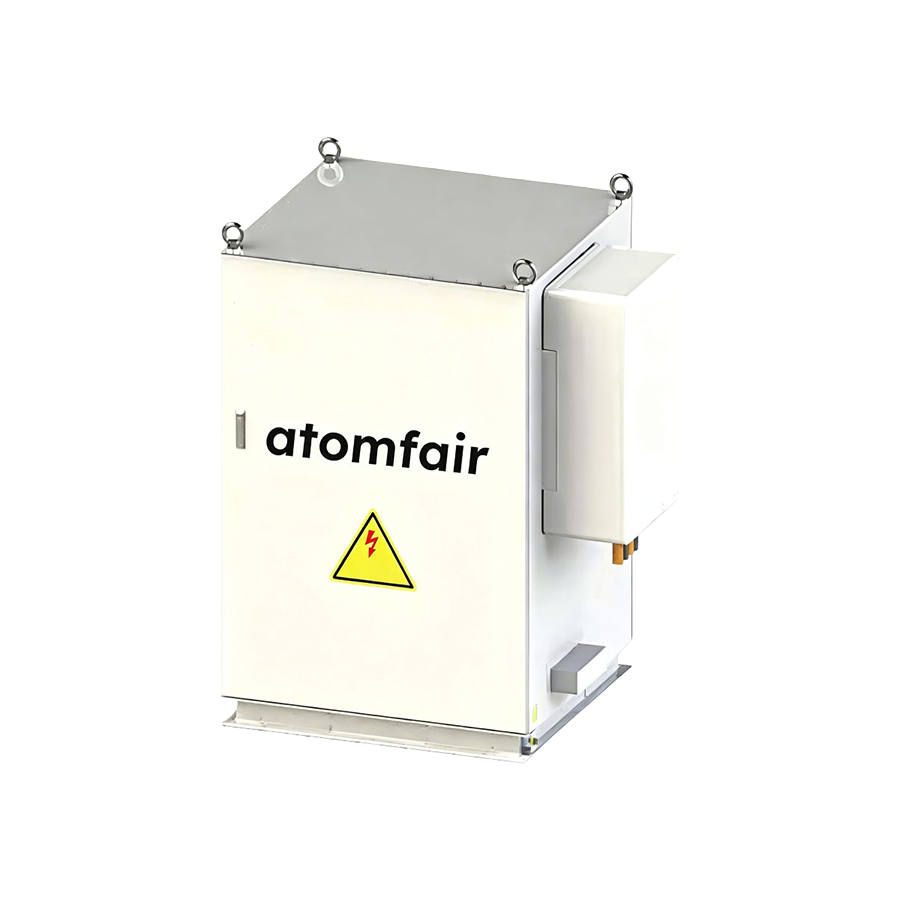

100kW 215kWh LFP Low-Temperature Air-Cooled C&I Energy Storage Cabinet | ATOMFAIR

COMMERCIAL GRADE PRODUCTION

Product Overview
The ATOMFAIR® 100kW 215kWh LFP low-temperature air-cooled C&I energy storage cabinet is a robust and cost-effective energy storage solution engineered for commercial and industrial applications. With a total energy of 215 kWh, rated voltage of 768 V, rated capacity of 280 Ah, and configuration of 1P240S, this system delivers substantial power for peak shaving, load shifting, and backup power in large-scale commercial facilities, industrial parks, and utility projects. Leveraging advanced Lithium Iron Phosphate (LFP) chemistry, it ensures excellent thermal stability, intrinsic safety, and long service life. The intelligent air cooling system with temperature sensors and safety monitoring automatically regulates airflow to maintain optimal battery temperatures, ensuring consistent performance and enhanced safety. The IP55 protection rating and wide operating temperature range from -35°C to 60°C guarantee dependable operation in diverse environments. With AC-side output of 400 V and simplified system architecture, this turnkey solution is ideally suited for C&I energy storage where reliability, cost-effectiveness, and ease of maintenance are critical.

Technical Specifications
PARAMETER SPECIFICATION
Battery Type Lithium Iron Phosphate (LFP)
Configuration 1P160S
Nominal Voltage 512 V
Voltage Range 400 ~ 584 V
Total Energy 143.36 kWh
Hybrid Inverter Power 50 kW
AC Output Voltage 400 V (-15% ~ +15%)
Cooling Method Air Cooling
Total Weight 1.7 ± 0.1 T
Dimensions (L*W*H) 1409 * 1278 * 1700 mm
Operating Temperature Range -35°C ~ 60°C

Key Features & Advantages

  • Wide Operating Temperature Range: Performs reliably from -35°C to 60°C, ensuring stable operation in diverse climate conditions.

  • Grid-Connected/Off-Grid Flexibility: Supports seamless transition between grid-connected and off-grid modes, ensuring uninterrupted power supply during grid outages.

  • Solar-Diesel Integration: Enables intelligent coordination of solar PV, diesel generators, and battery storage for optimized energy management and reduced fuel consumption.

  • High Energy Capacity: Delivers 143.36 kWh total energy with 50 kW hybrid inverter power, providing substantial storage for commercial and industrial applications.

  • Intelligent Energy Management: Advanced EMS for real-time monitoring, smart scheduling, and remote control capabilities, ensuring optimal energy utilization and cost savings.

APPLICATION SCOPE: Commercial and industrial microgrids, remote area power supply, backup power for critical facilities, solar-diesel hybrid systems, off-grid mining sites, agricultural operations, and island power systems.
PACKAGING: Securely packaged in robust industrial crates with protective internal cushioning and insulation layers to ensure safe transport and handling.
IMPORTANT NOTICE: For optimal performance and safety, operate within -35°C ~ 60°C. Ensure proper liquid cooling system operation with recommended coolant specifications. Use only compatible LFP charging equipment. Do not disassemble or short-circuit. In case of abnormality, disconnect immediately and contact qualified personnel. Dispose according to local regulations. Regular inspection of cooling system and electrical connections is recommended.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This high-voltage LFP battery cabinet requires a controlled operating environment between -35°C to 60°C with IP55 protection against dust and water ingress. The system contains hazardous voltages up to 584V DC and must be handled only by qualified personnel following strict safety protocols.

  • Temperature Constraints: Operate the cabinet only within the ambient temperature range of -35°C to 60°C to prevent thermal stress or reduced performance.
  • Voltage Hazard: The system operates at a nominal voltage of 512V with a maximum of 584V, posing a severe electrical shock hazard if exposed.
  • Cooling System Maintenance: The air cooling system must be kept unobstructed and regularly inspected to maintain proper thermal management.
  • Charging Compatibility: Use only compatible LFP charging equipment to avoid damage or unsafe charging conditions.
  • Disposal Requirements: Dispose of the cabinet according to local regulations for lithium-ion battery systems.

How does the 50 kW hybrid inverter power rating and 143.36 kWh energy capacity affect the system's suitability for peak shaving versus load shifting applications?

The system delivers 50 kW continuous power with 143.36 kWh total energy, yielding an approximate C-rate of 0.35C. This lower rate favors load shifting over longer durations (roughly 2.87 hours at full output) rather than high-power peak shaving, which typically demands higher C-rate. The wide voltage range (400–584 V) and grid-connected/off-grid flexibility support both applications, but the system emphasizes energy capacity over instantaneous power.

What are the grid connection requirements for integrating this cabinet into an existing 400 V AC commercial facility?

The cabinet provides 400 V AC output (-15% to +15%), enabling direct integration with standard 400 V three-phase commercial grids. It supports seamless transition between grid-connected and off-grid modes and can coordinate with solar PV and diesel generators via its advanced EMS. The 50 kW hybrid inverter rating means the facility's grid connection must accommodate that power level; no dedicated transformer is specified, and the voltage tolerance covers typical utility fluctuations.

What are the installation and weight-bearing requirements for deploying this 1.7-ton cabinet in a commercial facility?

The cabinet weighs 1.7 ± 0.1 tons with dimensions of 1409 × 1278 × 1700 mm (L×W×H). The installation floor must support a concentrated load of at least 1.8 tons, with adequate space for cooling airflow and maintenance access. An IP55 rating permits outdoor placement but requires protection from direct water jets. The operating temperature range of -35°C to 60°C is assured, but the air-cooling system must remain unobstructed for proper thermal management.

This 50 kW / 143.36 kWh LFP air-cooled energy storage cabinet delivers reliable operation from -35°C to 60°C with intrinsic thermal stability, but its 1.7-ton weight necessitates reinforced installation surfaces and periodic cooling system inspections.

Positive

  • Wide operating temperature range: Rated for -35°C to 60°C, enabling deployment in extreme climates without additional thermal enclosures.
  • Intrinsically safe LFP chemistry: Lithium Iron Phosphate cells provide excellent thermal stability and reduced fire risk compared to NMC chemistries, critical for commercial and industrial installations.

Trade-offs

  • High unit weight requires structural support: At 1.7 ± 0.1 tons, the cabinet demands reinforced flooring or a load-rated platform for safe installation in commercial buildings.
  • Periodic cooling system maintenance needed: The air-cooled system requires regular inspection of airflow paths, temperature sensors, and electrical connections to maintain rated performance and safety.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
