Description

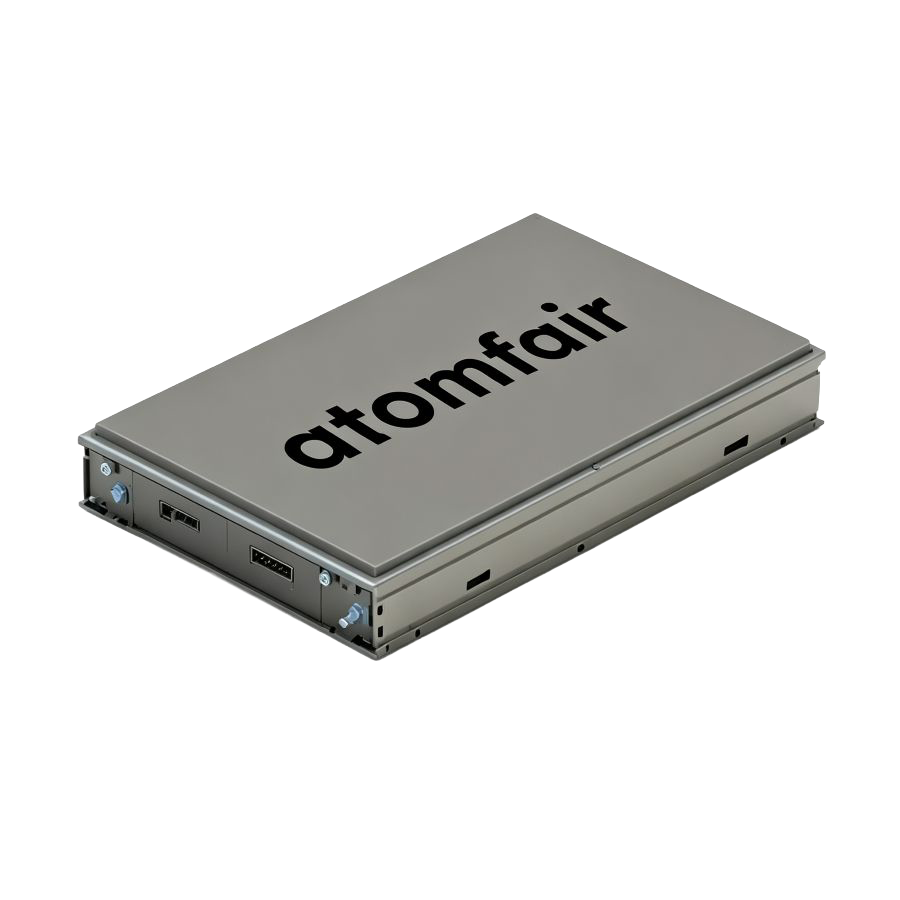

LFP Low-Temperature Battery Pack for Mining Trucks (93.184 kWh / 332.8V) | ATOMFAIRCOMMERCIAL GRADE PRODUCTION
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The battery pack must be operated within -35°C to 60°C and maintained with a properly functioning liquid cooling system. The IP67 protection rating requires all connectors to be securely sealed, and the pack must not be disassembled, short-circuited, or incinerated.
- Temperature Range Constraint: Operate the battery pack only within the rated -35°C to 60°C temperature range to prevent performance degradation or thermal runaway.
- Sealing Integrity Requirement: Maintain all connector seals intact to preserve IP67 protection against dust and water ingress.
- Liquid Cooling Maintenance: Ensure the liquid cooling system is properly filled and functional to avoid overheating under high-load conditions.
- Prohibited Actions: Do not disassemble, deform, short-circuit, or incinerate the battery pack, as these actions may cause fire or explosion.
- End-of-Life Disposal: Dispose of the battery pack according to local regulations for lithium-ion batteries to prevent environmental contamination.
Follow these steps to safely install, connect, and operate the battery pack in mining equipment. Proper handling ensures personnel safety and maintains the pack's performance and warranty.
Required Equipment: Compatible LFP charger
- Inspect Pack
Inspect the battery pack for any physical damage, loose connections, or coolant leaks before installation. - Verify Cooling System
Verify that the liquid cooling system is filled with the correct coolant and that the pump is operational. - Connect Connectors
Connect all power and signal connectors to the equipment, ensuring each is fully seated and sealed to maintain IP67 protection. - Connect Charger
Connect the battery pack to a compatible LFP charger using the correct charging protocol and voltage settings. - Monitor for Abnormality
Monitor the battery pack during initial operation and disconnect immediately if any abnormal temperature, smoke, or odor is detected.
How does the 660 kg weight of this battery pack impact its performance and application in mobile mining equipment?
The pack's weight of 660±20 kg is a trade-off for its high energy capacity of 93.184 kWh and robust safety features. While it adds significant mass to the vehicle, it is designed for heavy-duty mining applications such as 220-tonne truck retrofitting, where the weight is acceptable for the required power output. The liquid cooling system and IP67 protection enable reliable operation despite the weight.
What are the voltage and energy requirements for integrating this battery pack into existing mining truck electrical systems?
The pack has a rated voltage of 332.8V and rated energy of 93.184 kWh, so the vehicle's electrical system must be compatible with this voltage and capable of handling the energy output. The description specifies application in 220-tonne mining truck retrofitting, implying the need for matching battery management systems and charging infrastructure. Use only compatible LFP charging equipment.
What maintenance and safety procedures are required for the liquid cooling system and IP67-rated enclosure?
To maintain IP67 protection, all connectors must be securely sealed. The liquid cooling system requires regular maintenance to ensure optimal thermal management. The pack must be operated within -35°C to 60°C. Do not disassemble, deform, short-circuit, or incinerate. In case of abnormality, disconnect immediately and contact qualified service personnel. Dispose of end-of-life batteries according to local regulations.
This LFP battery pack delivers 93.184 kWh at 332.8 V with IP67 protection and liquid cooling, enabling reliable operation in mining environments from -35°C to 60°C.
Positive
- Wide Operating Temperature Range: Operates reliably from -35°C to 60°C, adapting to extreme mining environments without performance degradation.
- LFP Chemistry with Liquid Cooling: Lithium Iron Phosphate chemistry provides excellent thermal stability and safety, while the integrated liquid cooling system maintains optimal temperature under high-load conditions.
Trade-offs
- Heavy Weight Requires Robust Mounting: At 660 ± 20 kg, the pack demands structurally reinforced mounting and specialized handling equipment for installation.
- Liquid Cooling System Maintenance Required: The liquid cooling system must be properly maintained and all connectors securely sealed to preserve IP67 protection and ensure reliable operation.
