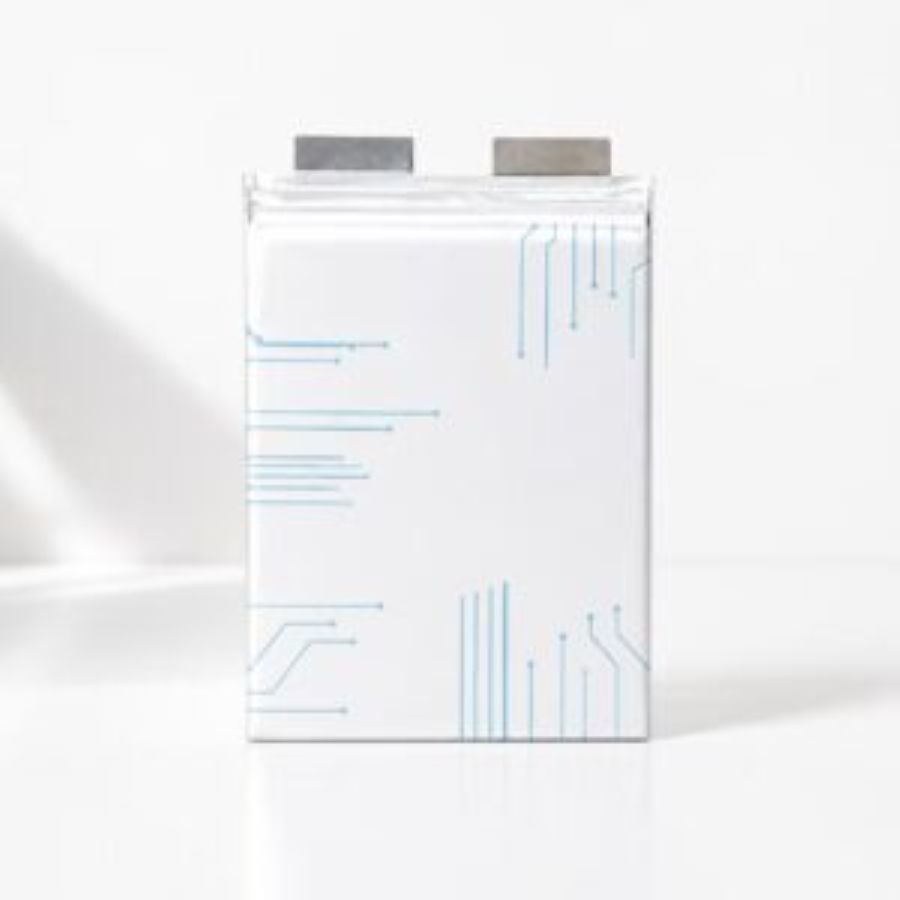

ES01 Compact Solid-State Cells (High-Energy UAV Series)COMMERCIAL GRADE · PRODUCTION
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR AEROSPACE
Contact our engineering team for technical support, high-altitude performance data, or official quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||
|
Manufacturer: PRODUCTION DIVISION · ADVANCED ENERGY STORAGE DIVISION
Brand: INDUSTRIAL TESTING HARDWARE
Specifications are representative and subject to change without notice. For the latest version and compliance certificates, contact official sales channel.
|
|||||||||||||||||||||||||||||||||||
The ES01 solid-state battery series must be operated within a thermal envelope of -40°C to +60°C to maintain electrochemical stability and prevent thermal runaway. The solid-state chemistry eliminates liquid electrolyte hazards but requires protection from physical damage to avoid internal short circuits.
- Thermal Operating Envelope: Operate the battery only within the specified -40°C to +60°C range to prevent thermal degradation.
- Current Discharge Limit: Do not exceed the rated 8C transient current discharge to avoid internal damage.
- Mechanical Integrity: Protect the pouch cell from punctures, crushing, or bending to maintain structural integrity.
How does the 8C transient pulse load affect cycle life on the ES01 series compared to continuous 1C/3C cycling?
The ES01 series is engineered to support an 8C transient surge while maintaining cell surface temperature increases strictly under 45 °C, which preserves structural stability. Verified lifecycle ratings of ≥500 cycles for the 6 Ah model and ≥700 cycles for the 26 Ah and 36 Ah variants are based on 1C/3C loop testing, not continuous 8C pulsing. Repeated high-rate pulsing may accelerate degradation beyond these specified cycle counts, so mission profiles should balance peak power demands with the rated cycle life for optimal longevity.
Can the ES0140140T1-6 model be integrated into a multi-cell pack with active balancing for high-altitude UAV operations?
Yes, the ES0140140T1-6 is designed as a compact pouch cell for weight-critical arrays and supports integration with active balance management cards, which are listed as alternative catalog items. Its -40 °C to +60 °C thermal operational scope ensures reliable discharge in arctic or high-altitude environments. However, pack-level voltage and capacity matching must account for the 6 Ah nominal capacity and the cell's solid electrolyte interface to avoid micro-peeling under vibration fields common in UAV flight.
What storage and handling protocols are required for the ES01 solid-state cells to maintain performance below -20 °C?
The ES0140140T1-6 model is rated for discharge down to -40 °C, but all variants should be stored within their specified thermal operational scope of -20 °C to +60 °C to prevent electrolyte crystallization or mechanical stress. The solid electrolyte infrastructure withstands high-frequency vibration, but cells must be kept in dry, sealed packaging under ISO 9001:2025 traceability standards to avoid moisture ingress. Pre-conditioning at room temperature before high-rate pulsing below -20 °C is recommended to ensure full capacity delivery.
The ES01 Compact UAV Solid State Battery Series delivers gravimetric energy densities up to 320 Wh/kg in a lightweight pouch format, making it suitable for high-altitude drone and eVTOL applications. It supports 8C transient pulses and operates reliably across extreme temperature ranges, though the cold performance and cycle life vary by capacity variant.
Positive
- Up to 320 Wh/kg specific energy: The series offers a peak gravimetric energy density of 320 Wh/kg (ES0187187T1-36 model), significantly extending flight endurance for weight-constrained UAV platforms.
- Severe cold discharge to -40°C: The ES0140140T1-6 variant operates down to -40 °C, enabling reliable power delivery in arctic or high-altitude conditions where standard batteries fail.
Trade-offs
- Variant-specific cold tolerance: Only the 6 Ah model supports -40 °C operation; the 26 Ah and 36 Ah variants are limited to -20 °C, restricting their use in extreme cold environments.
- Moderate cycle life up to 700 cycles: Verified cycle life under 1C/3C loops ranges from ≥500 cycles (6 Ah) to ≥700 cycles (26 Ah and 36 Ah), which may be a consideration for long-life applications.
