Ultra-Fast Charging High-Rate Semi-Solid Battery Series | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Store these lithium-ion pouch cells in a dry, ventilated environment away from direct sunlight and heat sources to prevent capacity fade. Avoid exposure to conductive materials, physical puncture, or immersion in liquids to mitigate short-circuit and fire risks.
- Temperature Control: Maintain the battery within a controlled temperature environment during storage and operation to prevent thermal runaway.
- Humidity Protection: Store in a low-humidity environment to avoid moisture-induced degradation of the semi-solid electrolyte.
- Short-Circuit Prevention: Ensure terminals are isolated and avoid contact with conductive surfaces to prevent short circuits.
- Mechanical Integrity: Inspect each cell for swelling, leakage, or physical damage before use and discard any compromised units.
Follow these steps to safely integrate and charge the high-rate pouch cells. Proper preparation and monitoring prevent thermal runaway and ensure long cycle life.
Required Equipment: Insulated gloves, Voltmeter, Fire-resistant container
- Inspection
Inspect the battery pouch for any physical damage, swelling, or leakage before use. - Voltage verification
Measure the open-circuit voltage to confirm the cell is within the safe operating range. - Charging preparation
Connect the cell to a compatible battery management system and a constant-current constant-voltage charger. - Charging procedure
Apply the recommended constant-current constant-voltage charging method as per the manufacturer's specifications. - Post-charge check
Allow the battery to rest after charging and monitor for any abnormal temperature rise or voltage drop.
How does the 6C continuous fast charging capability affect cycle life compared to standard charging rates?
The Ultra-Fast Charging High-Rate Semi-Solid Battery Series is engineered to deliver ≥1500 cycles at 80% SOH under aggressive 5C charge and 10C discharge at 100% DOD, demonstrating that the semi-solid electrolyte formulation mitigates lithium plating and mechanical degradation typically associated with high-rate charging. This cycle life specification is explicitly validated for the stated charge/discharge regime, not a lower standard rate.
Can these pouch cells be integrated into existing battery management systems designed for conventional lithium-ion batteries?
Yes, these cells operate at a nominal voltage of 3.75 V and support a continuous charge rate of 6C and max discharge of 10.5C, which are within the range of many advanced BMS platforms, but the BMS must be configured to handle the high current draw and the specific charge/discharge cut-off voltages implied by the semi-solid chemistry. The operating temperature range of -40°C to 60°C also requires a BMS with appropriate thermal management and low-temperature protection algorithms.
What are the specific handling and storage requirements for these semi-solid electrolyte pouch cells?
These commercial-grade pouch cells require strict adherence to manufacturer guidelines for handling, including protection from physical puncture and short circuits, and storage in a dry, temperature-controlled environment within the -40°C to 60°C range. The semi-solid electrolyte is less prone to leakage than liquid electrolytes but still demands careful handling to avoid damage to the pouch seal, and custom dimensions are available upon request for specific integration needs.

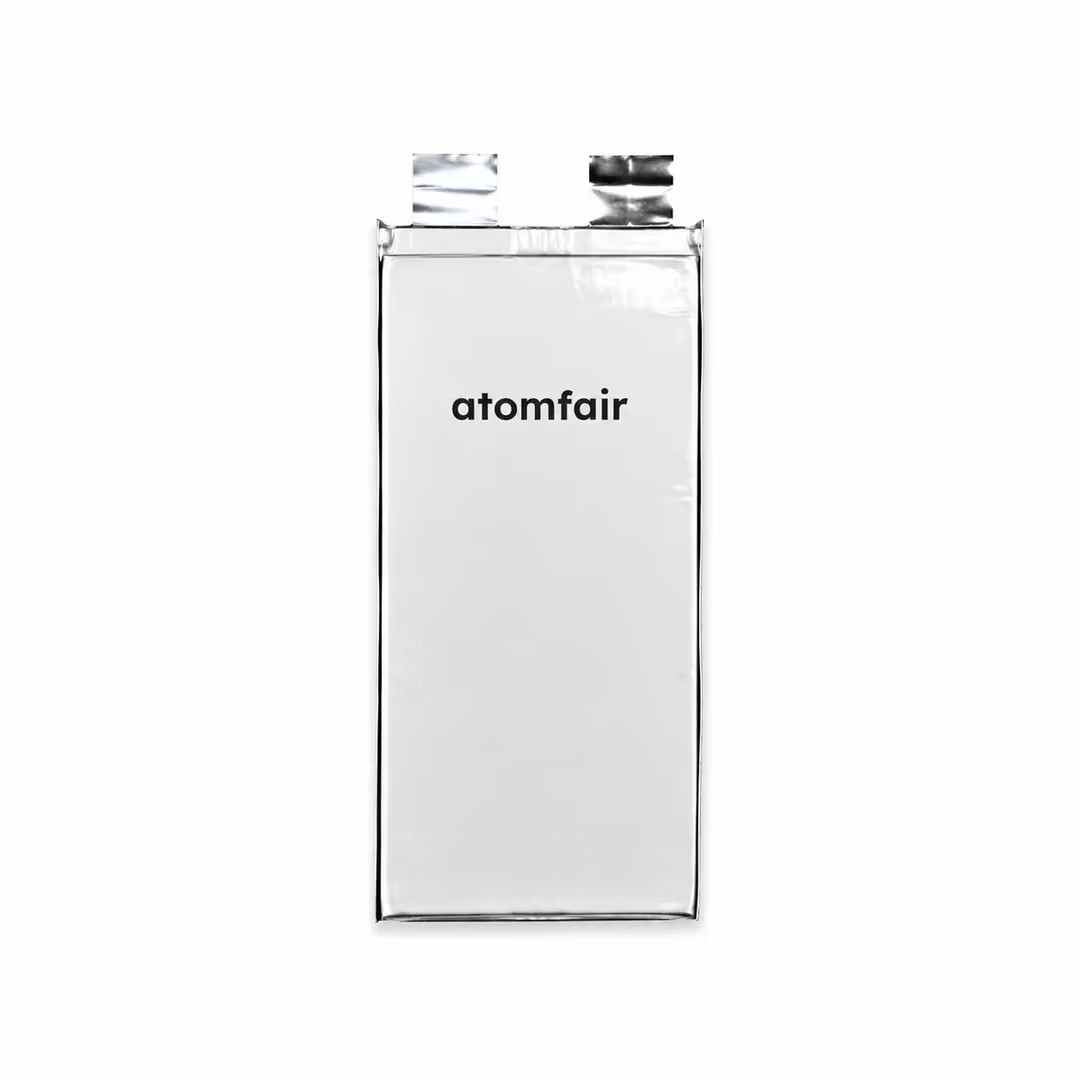

ATOMFAIR's Ultra-Fast Charging High-Rate Semi-Solid Battery Pouch Series delivers 6C continuous charging and 10.5C max discharge with a cycle life of ≥1500 cycles at 5C/10C, 100% DOD, operating from -40 to 60°C (discharge). The series is tailored for high-power applications but requires consideration of the unspecified charging temperature range and the specific cycle life test conditions.
Positive
- 6C continuous fast charging: Enables full recharge in 10 minutes, drastically reducing downtime for high-demand applications such as EV fleets and drones.
- 10.5C max discharge rate: Supports high pulsed loads in industrial equipment and backup power systems, delivering peak power when needed.
Trade-offs
- Charging temperature range unspecified: Operating temperature of -40 to 60°C is explicitly labeled for discharge only; charging temperature limits are not provided, potentially restricting fast-charge performance in extreme thermal environments.
- Cycle life validated at specific rates: The ≥1500-cycle guarantee is based on 5C charge/10C discharge at 100% DOD to 80% SOH; actual cycle life may differ under alternative charge/discharge profiles or duty cycles.
