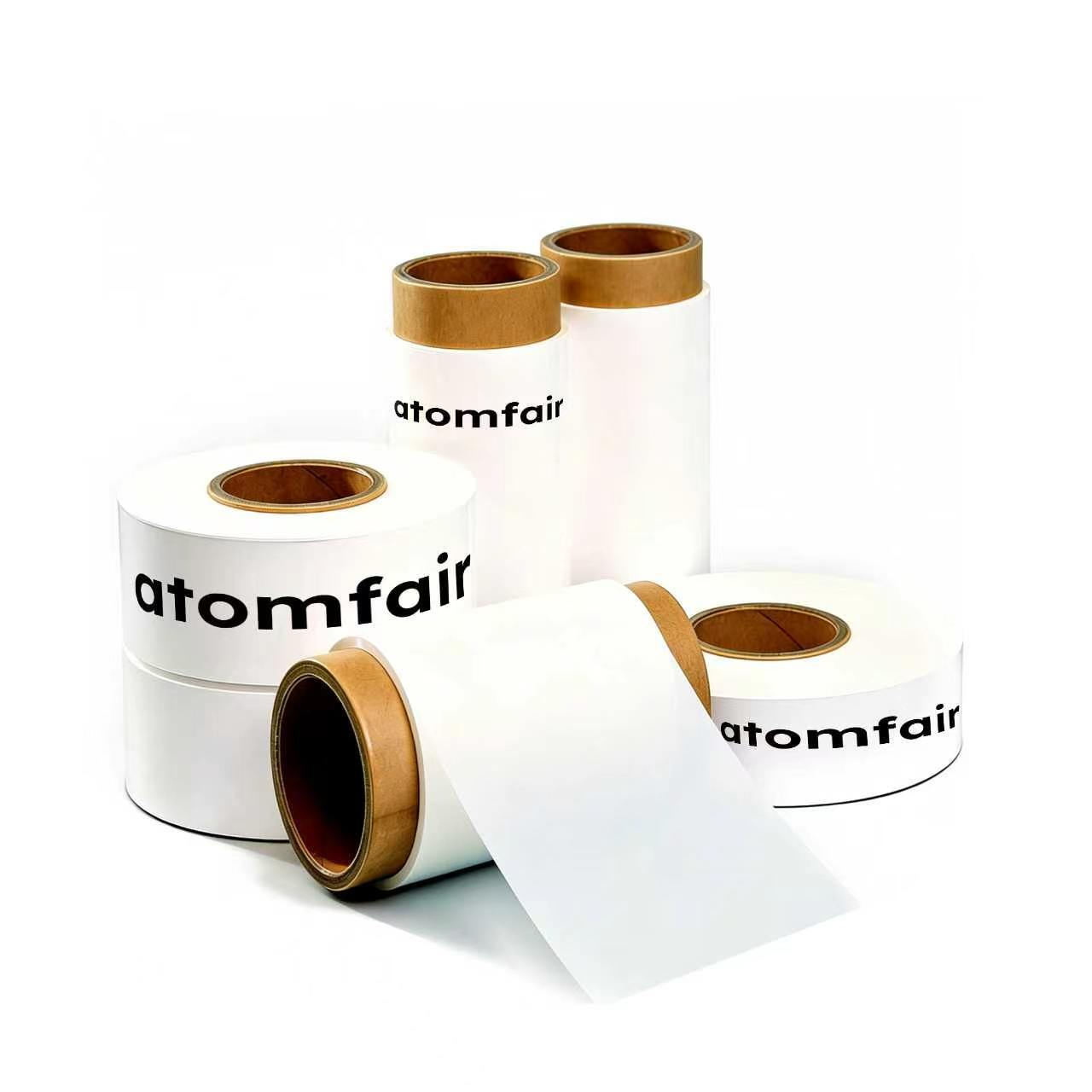

ATOMFAIR® wet process PE separator rolls in white color, wound on brown cores and stacked on a white background for battery research.

Wet PE Separator 16μm 60mmx100m High Porosity ATOMFAIR®

$88.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade wet-process PE separator, 16μm thickness, 60mm width, 100m length, 39% porosity, 224s air permeability. Ideal for battery R&D. Order now.

SKU: AFMSKVPW531
Category:
Tags: , , ,
Brands:

Description

ATOMFAIR® WET-PROCESS PE SEPARATOR 7UM

RESEARCH GRADE MATERIAL

Product Overview
Premium ultra-thin wet-process Polyethylene (PE) separator explicitly optimized for cutting-edge battery R&D and laboratory-scale assemblies. This ultra-thin micro-porous matrix provides highly reliable electrode isolation to completely prevent internal physical shorting, while its uniform channel framework ensures rapid, unhindered ion transport. Formatted at a precise 60mm × 10m sizing matrix, it delivers a highly consistent baseline verification control for high-power density cells, solid-state configurations, and refined academic electrochemical validation routines.

Specification Parameters (Model: AFSPPE7U60MM10M)
PARAMETER DETAILS
1. Structural Dimensions & Geometry
Product Code / Model AF-PE7 / AFSPPE7U60MM10M
Base Film Material / Size Specification Polyethylene (PE) / 60 mm × 10 m
Thickness (Base & Total) 7 μm
Surface Density 4.3 g/m²
2. Transport & Porosity Properties
Porosity 40 %
Air Permeability 155 S
3. Thermal & Mechanical Performance
Thermal Shrinkage (MD / TD) 1.2 % (Longitudinal MD) / 0.1 % (Transverse TD)
Tensile Strength (MD / TD) 221 kg/cm³ (Longitudinal MD) / 180 kg/cm³ (Transverse TD)
Puncture Strength 339 g
Melting Temperature 135 °C

Dry & Wet Process Product Selection Matrix

Standard Width: 60 mm. Alternative parameters and customized dimensions are fully supported via engineering consultation.
CODE DESCRIPTION FILM THICK (μm) DENSITY (g/m²) POROSITY PERM (S) SHRINK (MD/TD) TENSILE (MD/TD) PUNCTURE MELT
Dry-Process PP Configurations
AF-PP16 Dry-process PP 16um PP 16 8.75 41% 210 1.6% / 0% 140 / 17 kg/cm³ 380 g 167 °C
AF-PP20 Dry-process PP 20um PP 20 11.5 40% 355 1.1% / 0.1% 158 / 20 kg/cm³ 414 g 167 °C
AF-PP25 Dry-process PP 25um PP 25 13.6 40% 349 1.8% / 0.1% 172 / 20 kg/cm³ 429 g 167 °C
Wet-Process PE Configurations
AF-PE7 Wet-process PE 7um PE 7 4.3 40% 155 1.2% / 0.1% 221 / 180 kg/cm³ 339 g 135 °C
AF-PE9 Wet-process PE 9um PE 9 5.7 38% 185 1.5% / 0.1% 221 / 156 kg/cm³ 410 g 135 °C
AF-PE12 Wet-process PE 12um PE 12 7.1 40% 222 0.9% / 0.1% 208 / 167 kg/cm³ 566 g 135 °C
AF-PE16 Wet-process PE 16um PE 16 8.8 39% 224 1.2% / 0.1% 192 / 156 kg/cm³ 535 g 135 °C
AF-PE20 Wet-process PE 20um PE 20 11 41% 224 1.4% / 0.1% 196 / 165 kg/cm³ 722 g 135 °C

Logistics, Handling & Storage Requirements
  • Airtight Protective Packaging: Delivered securely inside an airtight, plastic-sealed containment bag with engineered internal cushioning to block environmental humidity.
  • Regulated Warehouse Storage: Must remain sealed in a temperature-controlled, dry, and clean environment. Store completely clear of fire hazard points, heat pipelines, or combustible matrices.
  • Transit Integrity Controls: Protect carefully against direct solar radiation exposure, sudden heat spikes, or unexpected precipitation during dispatch handling to avoid mechanical warping.

APPLICATION SCOPE: Standardized scientific testing and internal prototype validation loops for secondary lithium-ion, sodium-ion, and cutting-edge battery assemblies.
INSPECTION STANDARD: 100% automated visual and mechanical structural verification prior to laboratory distribution to maintain completely burr-free and oil-free operation.
IMPORTANT NOTICE: Handle with extreme care in cleanroom spaces or an anhydrous atmosphere to avoid structural wrinkles or particulate pollution. For explicit custom width, roll length, or alternative thickness options, please reach out to our team.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
MANUFACTURER: ATOMFAIR LLC

Store sealed in a dry, well-ventilated environment below 135°C and away from fire or heat sources. Material integrity is compromised by excessive tensile load, puncture, or exposure to moisture.

  • Thermal Degradation Risk: The separator undergoes longitudinal shrinkage of 1.2% and transverse shrinkage of 0.1% at elevated temperatures, with complete melting at 135°C.
  • Moisture Sensitivity: Humid storage conditions can alter the porous structure and degrade electrolyte wetting performance.
  • Mechanical Damage Risk: Puncture or tensile overload during handling can create defects that lead to internal short circuits in the assembled cell.
  • Fire Hazard Consideration: Polyethylene is flammable; maintain separation from open flames, sparks, and ignition sources.

How does the 39% porosity and 224s air permeability of the 16μm wet-process PE separator affect its ionic conductivity versus mechanical integrity in lithium-ion battery R&D?

The 39% porosity and 224s air permeability of the AF-PE16 separator provide a balanced trade-off between ionic conductivity and mechanical integrity for R&D lithium-ion cells. This porosity level, combined with a puncture strength of 535g and tensile strengths of 192 kg/cm³ MD and 156 kg/cm³ TD, offers sufficient electrolyte retention and wetting while maintaining structural safety during assembly and cycling.

Can the wet-process PE 16μm separator be used with high-nickel NMC cathodes or silicon anodes that require high-temperature stability?

The AF-PE16 separator has a melting temperature of 135°C, which limits compatibility with high-temperature electrode processing or operation above that threshold. Its longitudinal thermal shrinkage is 1.2% and transverse shrinkage is 0.1%, indicating good dimensional stability at moderate temperatures, but it is not recommended for cells designed for operating above 135°C or requiring PP's higher melt integrity at 167°C.

What are the required storage and handling conditions to prevent contamination or degradation of the 16μm wet-process PE separator before use?

Store the separator sealed in a dry, well-ventilated environment at normal or low temperature, away from fire, heat sources, and flammable materials. During transportation, avoid sunlight, rain, severe collision, and extrusion to prevent physical damage and maintain the 60mm width integrity and 16μm thickness uniformity.

This 16 μm wet-process PE separator from Atomfair offers a balanced combination of mechanical strength (535 g puncture) and thermal stability (0.1% TD shrinkage) suitable for R&D battery fabrication, though its PE construction limits upper temperature exposure to 135°C and moderate porosity (39%) may constrain high-rate ionic transport.

Positive

  • High puncture strength: Puncture strength of 535 g provides robust mechanical integrity against electrode particle penetration, critical for preventing internal short circuits in lab-scale battery assemblies.
  • Low transverse thermal shrinkage: Transverse thermal shrinkage of only 0.1% TD ensures dimensional stability across the separator width during thermal excursions, improving cell safety and consistency.

Trade-offs

  • Low melting temperature limit: Melting temperature of 135°C for the PE base film imposes a strict upper thermal operating limit; the separator loses structural integrity above this temperature, requiring careful thermal management during cell drying or battery testing.
  • Moderate porosity may limit rate: Air permeability of 224 S combined with 39% porosity indicates moderate ionic resistance; for high-rate or thick-electrode experiments, this separator may contribute to concentration polarization effects.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
