Description

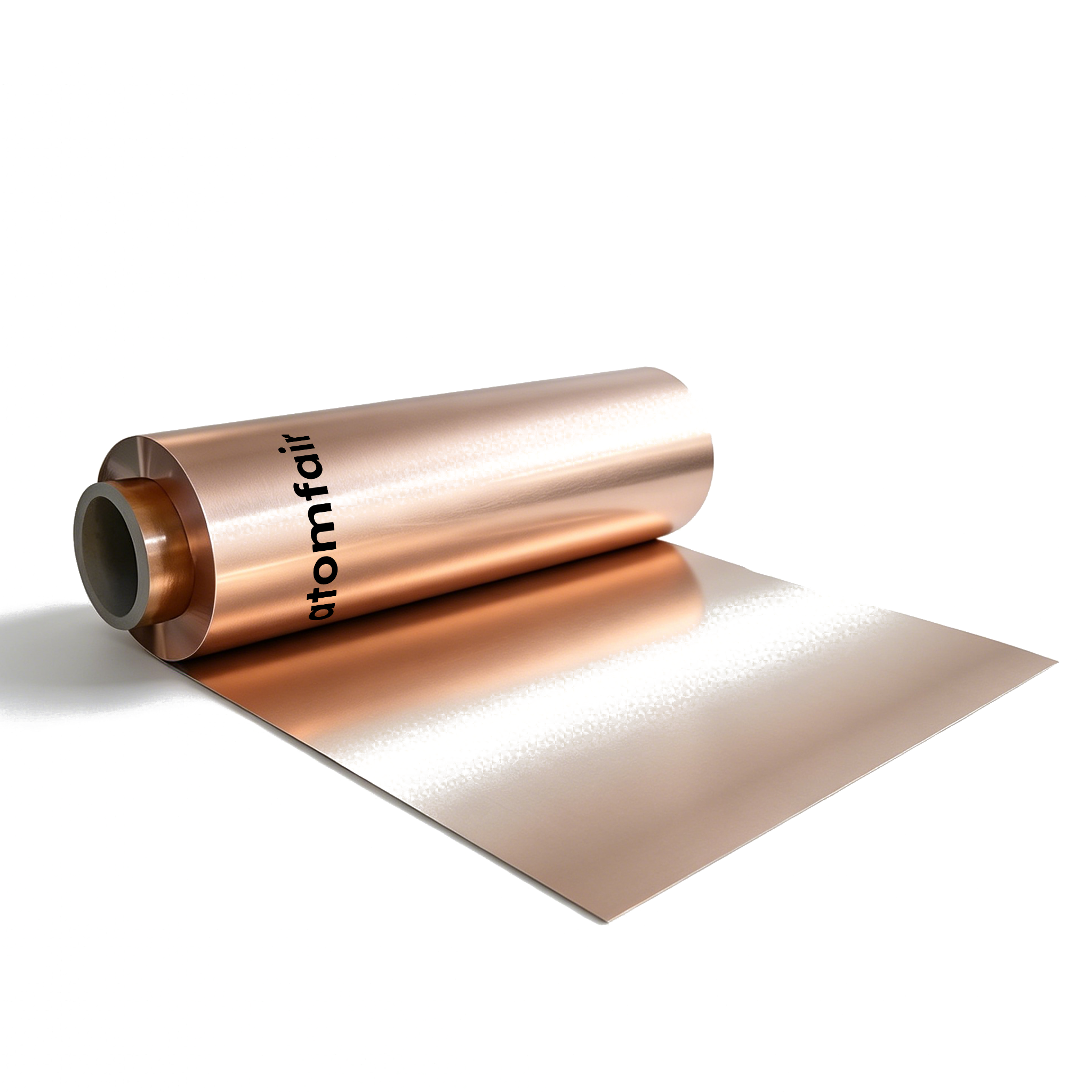

ATOMFAIR® NICKEL-PLATED COPPER FOIL

RESEARCH GRADE MATERIAL

Product Overview

The ATOMFAIR® Nickel-Plated Copper Foil is an advanced functional composite substrate engineered via professional electroplating and degreasing processing on high-purity rolled copper foil. This high-end matrix material seamlessly unifies the robust chemical shielding barriers of nickel with the premier electrical and thermal conductivity of core copper crystallites. Available in specialized weldable and non-weldable variants, this microelectronic thin-film platform delivers elite resistance against thermal oxidation, discoloration, and parasitic electronic losses, preserving long-term validation integrity in high-capacity energy storage and signal shielding applications.

Technical Specifications

PARAMETER	WELDABLE VARIANT	NON-WELDABLE VARIANT
1. Core Device & Device Root Substrate Designation
Base Substrate Type	High-Precision Rolled Copper Foil (JIS C1100 & ASTM C11000 Compliant)
Substrate Purity Profile	Copper content ≥ 99.96%
Thickness Delivery Range	0.012 × 0.15 mm (0.00047 × 0.0059 inches)
Width Delivery Range	≤ 600 mm (≤ 23.62 inches) \| Custom slicing supported
2. Half-Cell Foils, Precursor Layers & Coating Interface Parameters
Nickel Layer Thickness	≥ 0.4 μm	≥ 0.2 μm
Nickel Layer Composition	80% – 90% Nickel (Tunable matrix)	100% Pure Nickel Matrix
Coating Surface Resistance	≤ 0.1 Ω	0.05 – 0.07 Ω
Layer Adhesion Rating	Grade 5B Certified (ASTM D3359 Quality Compliant)
3. Mechanical & Structural Kinetics Retention
Tensile Strength Retentivity	Degradation ≤ 10% post-plating treatment
Elongation Retentivity Limit	Degradation ≤ 6% post-plating treatment
Manufacturing Rules	Processed under strict ISO standard experimental grade compliance conditions (ASTM D3359 and international microelectronic standards compliant)
Alternative Options	Personalized substrate dimensions, custom thermal annealing, specialized slitting profiles, and specific tempering hard states are available upon institutional request. Please contact our support team.

Key Features & Advantages

Homogeneous Material Purity: Fabricated with high-precision copper substrate and tightly linked nickel deposits, securing an uncompromised interface that prevents peeling or layer separation during rolling.
Enhanced Operational Efficiency: Specifically engineered with advanced chemical stability, demonstrating excellent corrosion resistance, anti-rust properties, and complete immunity to severe environmental discoloration at elevated temperatures below 600℃.
Optimized Microstructure: Treated with premium surface degreasing protocols to facilitate rapid compounding, composite bonding, and uniform grain boundary contact during hardware fabrication.

APPLICATION SCOPE: High-reliability printed circuit boards (PCBs), electronic connection contacts, energy storage anode electrodes, lithium-ion current collectors, outdoor communication base stations, functional routers, mirror-finish high-end hardware accessories, automotive electronics, and precision medical devices.

PACKAGING: Securely dispatched within air-tight protective enclosures backed by high-density structural cushion pads to defend product geometric parameters.

IMPORTANT NOTICE: This multi-layered functional substrate is vulnerable to abusive mechanical handling. Ensure all continuous rolls are stored securely inside dry, ventilated spaces away from intense solar baking, industrial fire, or moisture shower hazards to avoid degradation before definitive thermal validation testing workflows.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

Constraints

This product comprises a high-purity copper foil substrate with a nickel plating layer optimized for wear resistance and welding compatibility. The variant-specific nickel composition and thickness impose constraints on welding processes and require careful handling to preserve surface integrity.

Nickel Layer Composition for Welding: The weldable variant uses a nickel layer composition of 80-90% nickel to match customer welding processes, while the non-weldable variant uses 100% pure nickel.
Nickel Layer Thickness: The weldable variant requires a minimum nickel thickness of 0.4 µm and the non-weldable variant requires a minimum of 0.2 µm for proper performance.
Substrate Customization: Substrate thickness and width can be customized per customer requirements within the specified ranges.
Surface Condition: The foil undergoes degreasing treatment and should remain free of surface contaminants to maintain wear resistance and weldability.

FAQ

How does the nickel layer composition and thickness affect the weldability versus electrical conductivity trade-off in Atomfair nickel-plated copper foil?

The weldable variant uses an 80–90% nickel layer at ≥0.4 µm thickness to optimize laser or ultrasonic welding performance, while the non-weldable variant uses 100% pure nickel at ≥0.2 µm for lower surface resistance (0.05–0.07 Ω vs ≤0.1 Ω). This allows users to prioritize either robust joint formation or minimal electrical loss depending on the application, with mechanical performance retention guaranteed (tensile strength degradation ≤10%, elongation degradation ≤6% after plating).

What are the critical compatibility considerations when integrating Atomfair nickel-plated copper foil into multilayer laminate or bonding processes?

The foil's degreased surface ensures excellent adhesion with adhesives and encapsulation materials, and it supports customized annealing and slitting to meet tight dimensional tolerances. The base material is high-purity rolled copper foil (JIS C1100 / ASTM C11000, Cu≥99.96%), which is compatible with standard PCB and flexible circuit manufacturing, but the nickel plating thickness (≥0.2 or ≥0.4 µm) and purity must be matched to the specific joining technique (e.g., laser welding, soldering or ultrasonic bonding).

What are the recommended storage and handling conditions to maintain the surface integrity of Atomfair nickel-plated copper foil?

The nickel layer provides excellent oxidation and corrosion resistance below 600°C, but for long-term storage, the foil should be kept in a clean, dry environment with moderate humidity to prevent moisture-induced galvanic corrosion. Handling with clean gloves is advised to avoid contaminating the degreased surface, which would compromise subsequent bonding or plating steps, and the foil's adhesion grade (5B per ASTM D3359) ensures the nickel layer remains intact under proper handling.

Assessment

Atomfair's nickel-plated copper foil delivers robust wear and corrosion resistance with adhesion grade 5B, but its thin substrate (down to 0.012 mm) demands careful handling, and the weldable variant's nickel composition (80-90% Ni) requires process-specific adjustment.

Positive

Strong nickel layer adhesion: The nickel plating achieves adhesion grade 5B per ASTM D3359, ensuring resistance to peeling under mechanical stress and supporting reliable performance in multilayer assemblies.
High-temperature oxidation resistance: The foil resists oxidation and discoloration up to 600°C, allowing use in elevated-temperature environments without compromising surface integrity or conductivity.

Trade-offs

Thin substrate handling requirements: With substrate thickness as low as 0.012 mm, the foil is mechanically delicate and may require specialized slitting and lamination equipment to avoid tearing or deformation during downstream processing.
Variant-dependent nickel composition: The weldable variant uses 80-90% nickel, adjustable to match welding processes, meaning the standard composition may not be universally suitable and process tuning is needed to achieve optimal joint integrity.

Quality Standards & Performance Verification

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
