Tray Sticky Box 50.6 x 50.6 mm Plug-in Style

Tray Sticky Box 50.6 x 50.6 mm Plug-in Style

Price range: $37.00 through $55.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

The 50.6 x 50.6 mm tray sticky box in plug-in tray style format uses a removable sticky tray to hold delicate components during loading, inspection and transfer. The tray format allows parts to be placed on the adhesive surface first and then moved into the protective box, supporting organized handling of small components and samples.

SKU: AF-EI-A-TSBX-55PG-XL05-PARENT
Category:
Tags: , , , ,
Brands:

Description

Tray Sticky Box 50.6 x 50.6 mm PLUG-IN TYPE

Tray-based adhesive component handling

Product Overview

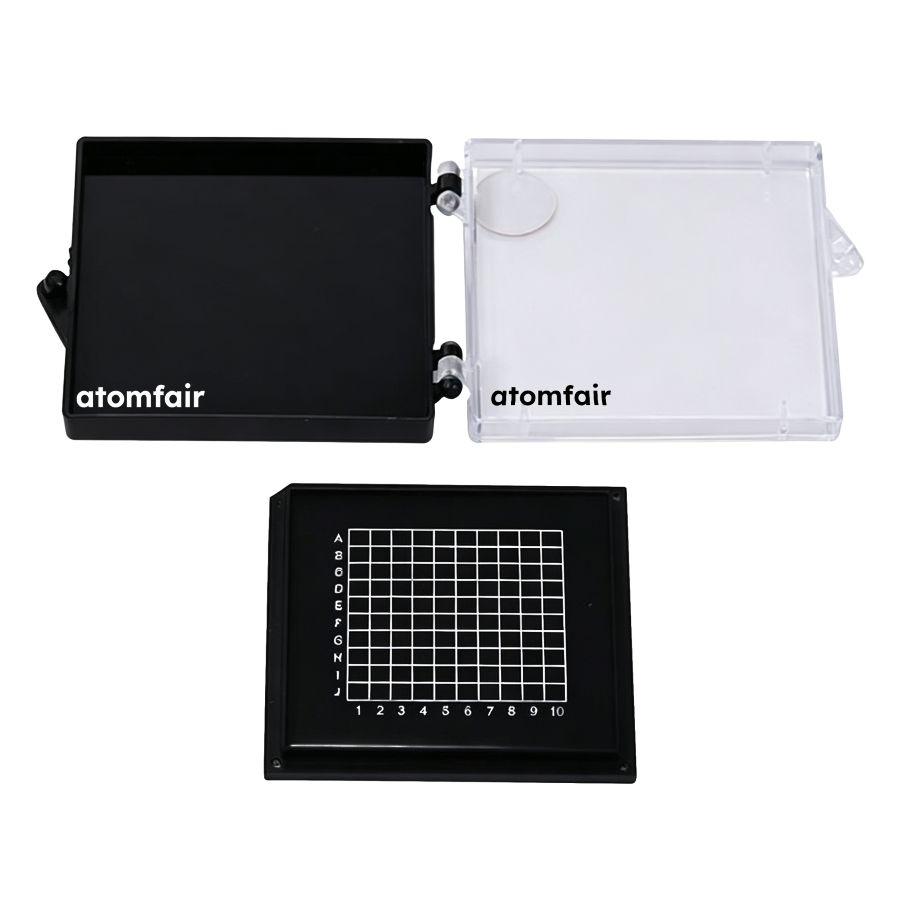

Tray Sticky Box with Tray is a tray-mounted self-adhesive storage box designed for holding, staging and transferring small precision parts. It consists of a rigid plastic outer box and a removable plastic tray, and the tray surface is coated with a specially cured self-adhesive layer. The adhesive layer is moisture-resistant, odorless, mold-resistant and aging-resistant, and its tack performance remains stable from -60 degC to 200 degC. Clear and black structural combinations can be selected to suit different visibility and handling requirements.

Compared with a standard sticky box, the tray can be taken out of the outer box for direct line-side loading and then returned to the box for protected storage and transport. The self-adhesive tray helps keep chips, optical parts, crystal parts, ceramic pieces and other delicate micro components in position without rigid clamping, reducing slip, vibration and surface contact during inspection, pick-and-place preparation, temporary storage and short-distance transfer. Different adhesion grades can be selected according to part weight, contact area and surface sensitivity.

Specifications
1. Model Options & Dimension Parameters
Model Tray Size Box Style Adhesion Grade
AF-TS-5510A-XL 50.6 x 50.6 mm Plug-in type Ultra-Low adhesion
AF-TS-5510A-L 50.6 x 50.6 mm Plug-in type Low adhesion
AF-TS-5510A-M 50.6 x 50.6 mm Plug-in type Medium adhesion
AF-TS-5510A-H 50.6 x 50.6 mm Plug-in type High adhesion
2. Technical Specifications
Parameter Details
Product Format Sticky tray with protective outer box
Package Quantity 5 pieces per pack or 10 pieces per pack
Positioning Method Adhesive tray surface for stable part placement
Tray Handling Component can be loaded on the tray before being placed into the box
Suitable Components Small optical parts, chips, precision samples and miniature assemblies
Configuration Notes Adhesion grade should be selected according to component weight and surface sensitivity

Note: An anti-static outer shell can be provided on request. Please contact inquiry@atomfair.com if this option is needed.

Key Features and Advantages
  • Tray-based loading improves access during sample placement and inspection.
  • Ultra-Low, low, medium and high adhesion options can be selected as separate model configurations.
  • Protective box structure helps reduce movement after the loaded tray is closed.
  • Suitable for repeated laboratory handling and organized sample transfer.
APPLICATION SCOPE: Optical lenses, chips, ceramic parts, wafers, miniature assemblies, laboratory samples and other delicate components that require orderly positioning during inspection, transfer and packaging.
PACKAGING: Products are packed with protective inner support and outer cushioning to reduce movement during handling. Packing method, carton quantity and transport arrangement can be matched to sample size, order quantity and delivery schedule.
IMPORTANT NOTICE: Please confirm tray size, box style and adhesion grade before ordering. For fragile or contamination-sensitive parts, ask our team to confirm the suitable tray structure and transport plan.
TAILORED SOLUTIONS FOR RESEARCH
For custom tray configuration, adhesion selection or shipment support, contact our engineering sales team.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Specification

Ultra-low adhesion, 5 pcs, 10 pcs, Low adhesion, 5 pcs, 10 pcs, Medium adhesion, 5 pcs, 10 pcs, High adhesion, 5 pcs, 10 pcs
