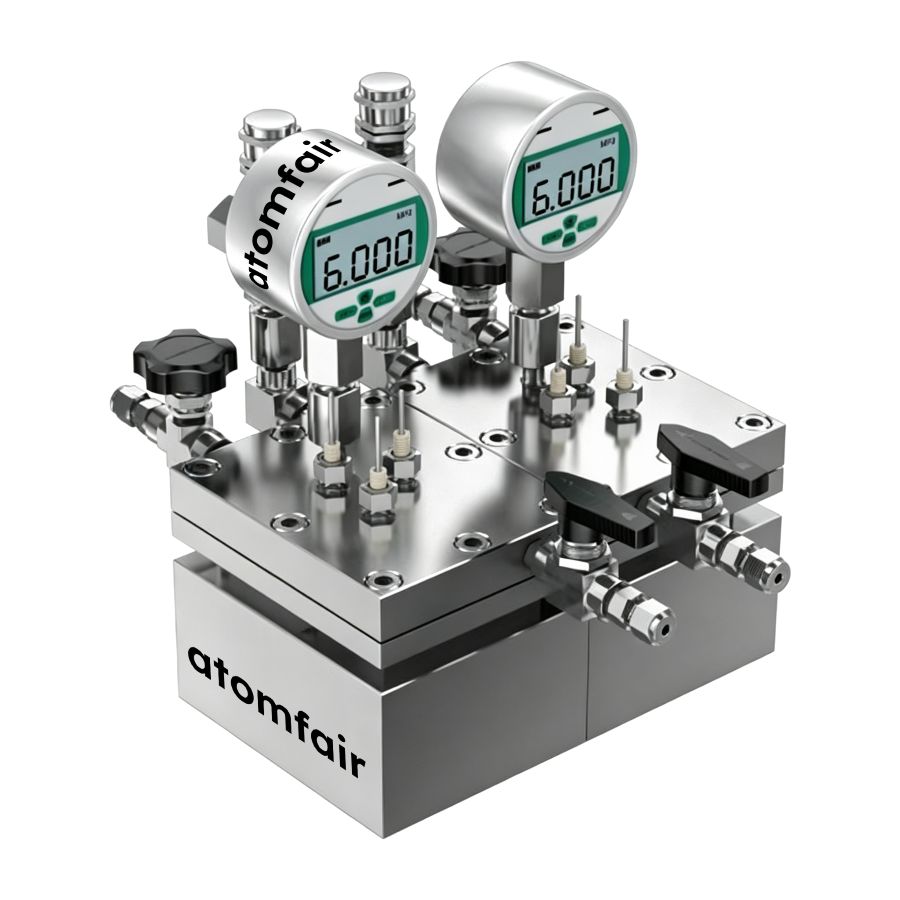

Double Chamber High-Pressure Electrochemical Cell – 100+100 mLProduct Type: Variation
Laboratory procurement configuration
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
This high-pressure electrochemical cell is rated for a maximum operating pressure of 6 MPa. The external replaceable membrane must be correctly installed and sealed to prevent leakage and maintain system integrity.
- Pressure Limit: Do not exceed the rated pressure of 6 MPa to avoid catastrophic failure.
- Membrane Sealing: Ensure the membrane is properly seated with clean sealing surfaces before tightening the chamber assembly.
Why is the counter-electrode chamber separated in the double chamber high-pressure electrochemical cell, and how does this affect measurement accuracy?
The separated counter-electrode chamber physically isolates counter electrode reaction products from the working electrode, preventing cross-contamination that could alter the working electrode's electrochemical response. This design is essential for accurate measurements in high-pressure electrochemistry, where gas evolution or side reactions from the counter electrode would otherwise interfere with working electrode data. The source specifies a 'three-electrode layout with separated counter-electrode chamber' as a core feature.
What electrodes and accessories are required to operate the AF-HC-100 100+100 mL high-pressure electrochemical cell?
The cell requires separately purchased electrodes (working, reference, and counter electrodes), membranes compatible with the external replaceable membrane configuration, windows if optical access is needed, and gas diffusion electrodes for gas-phase reactions. The source states that 'optional electrodes are sold separately' and advises confirming 'electrodes, membranes, windows, gas diffusion electrodes' for the selected configuration. Custom non-standard sizes are available upon request.
What are the material and pressure handling requirements for the titanium body and 304 stainless steel valves at 6 MPa?
The cell is constructed from a titanium chamber body and 304 stainless steel valves, both rated for the 6 MPa maximum operating pressure. Titanium provides excellent corrosion resistance and mechanical strength for high-pressure aqueous or organic electrolytes, while 304 stainless steel valves offer reliable sealing and flow control. Users must ensure all seals, including the external replaceable membrane, are properly installed and tightened before pressurization to maintain integrity.
This 100+100 mL double chamber high-pressure electrochemical cell features a titanium body rated to 6 MPa with a three-electrode layout and external replaceable membrane, suitable for high-pressure electrochemistry but requiring separate purchase of electrodes and accessories.
Positive
- Corrosion-resistant titanium body: The titanium chamber body with 304 stainless steel valves provides chemical resistance and mechanical integrity for high-pressure electrochemical experiments up to 6 MPa.
- Separated counter-electrode chamber: The three-electrode layout with a physically separated counter-electrode chamber minimizes cross-contamination and enables accurate potential control during measurements.
Trade-offs
- Pressure rating limits high-pressure use: The 6 MPa maximum pressure rating may be insufficient for applications requiring higher pressures; operation at or near this limit demands careful safety protocols and infrastructure.
- Electrodes and accessories sold separately: Electrodes, membranes, windows, and gas diffusion electrodes are not included and must be procured separately, requiring additional compatibility verification and lead time.
