ATOMFAIR® NCM811-D04 LITHIUM NICKEL COBALT MANGANESE OXIDE (NCM811) ELECTRODE SHEETRESEARCH GRADE MATERIAL | DRY PROCESS
|
|||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||

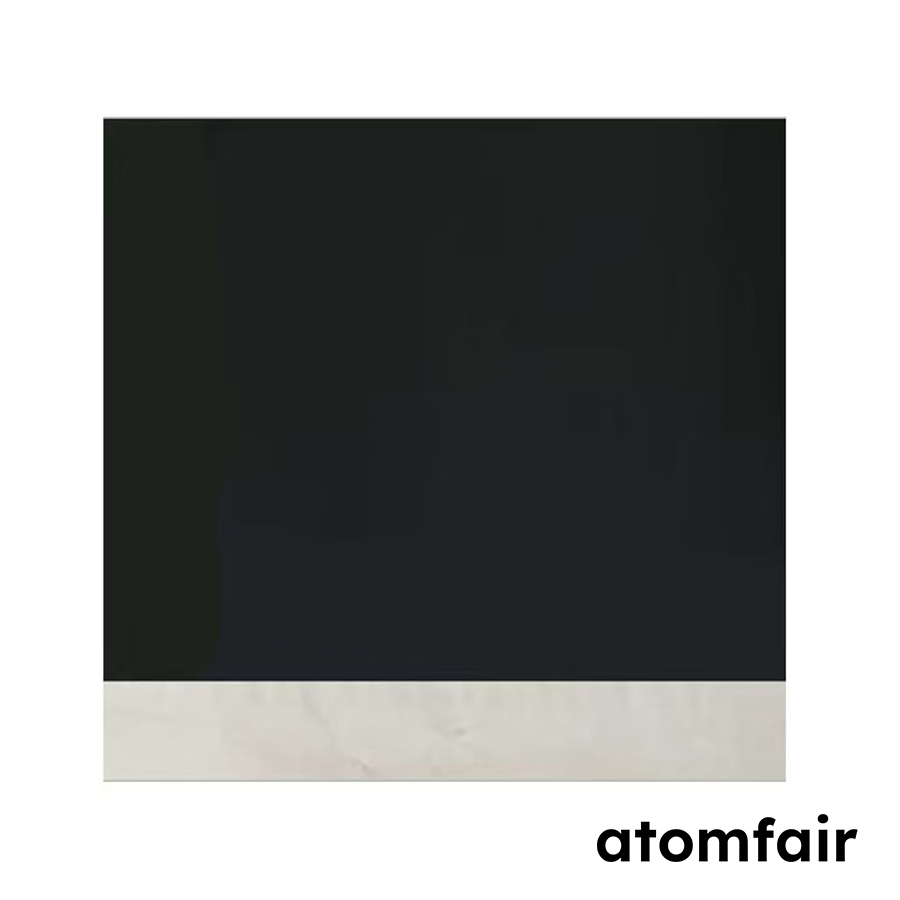

This NCM811 double-side coated cathode on carbon-coated aluminum foil is designed for lithium-ion battery R&D and requires strict environmental control during storage and handling. Key constraints include inert atmosphere storage, precise calendaring to 3.0 g/cm³ compaction density, and careful handling to preserve substrate thickness tolerance.
- Storage Atmosphere: This electrode sheet must be stored in an inert atmosphere to maintain electrochemical performance.
- Substrate Thickness Tolerance: The carbon-coated aluminum foil substrate has a total thickness of 12 μm with a tolerance of ±0.5 μm on each side.
- Coating Density Constraint: The double-side coating has a total areal density of 60 mg/cm² with an active material ratio of 96.0%.
- Compaction Density Requirement: Calendering must achieve a compaction density of 3.0 g/cm³ for optimal electrode porosity.
- Coating Area Alignment: The coating area of 90×120 mm is centered on a 90×140 mm substrate for tab alignment.
How does the 96% active material ratio in the NCM811-D04 electrode influence its capacity and compaction density trade-off?
The 96% active material ratio maximizes the electrochemically active component, delivering a capacity of 200 mAh/g as specified. The compaction density of 3.0 g/cm³, enabled by the dry process coating, balances porosity and ionic transport while maintaining structural integrity for high-density applications.
What prerequisite handling steps are required before integrating NCM811-D04 electrodes into a full cell?
The electrodes require a 12-hour vacuum bake at 100°C to remove residual moisture before assembly, as stated in the product notice. The carbon-coated aluminum foil current collector (4.4 mg/cm² areal density, 12+0.5+0.5 μm thickness) minimizes interfacial contact resistance, ensuring reliable electrochemical data in full cell testing.
What drying infrastructure is necessary to prepare NCM811-D04 electrodes for laboratory cell assembly?
A vacuum oven capable of maintaining 100°C for 12 hours is mandatory, as specified in the standard drying protocol. The NCM811 chemistry is moisture-sensitive, and failure to adhere to this protocol can degrade electrochemical performance; the dry process coating provides structural integrity only when the electrode is properly dried.
The NCM811-D04 electrode offers a high 96% active material ratio and dry-process coating for reliable R&D testing, but users must account for a 12-hour vacuum drying step and fixed electrode dimensions when planning cell assembly protocols.
Positive
- 96% Active Material Ratio: The high active material loading of 96.0% ensures minimal binder and conductive additive interference, optimizing the accuracy of electrochemical evaluation.
- Dry-Process Coating Integrity: The advanced dry coating method provides superior structural integrity and precise thickness control, enabling high-density electrode architectures with uniform performance.
Trade-offs
- Mandatory Vacuum Drying Protocol: The electrode requires a 12-hour vacuum bake at 100°C prior to use to remove adsorbed moisture, adding significant time to cell fabrication workflow.
- Fixed Coating Dimensions: The 90×120 mm coating area is predetermined, which may require trimming or custom cell fixtures for smaller-format research cells or specific test configurations.
