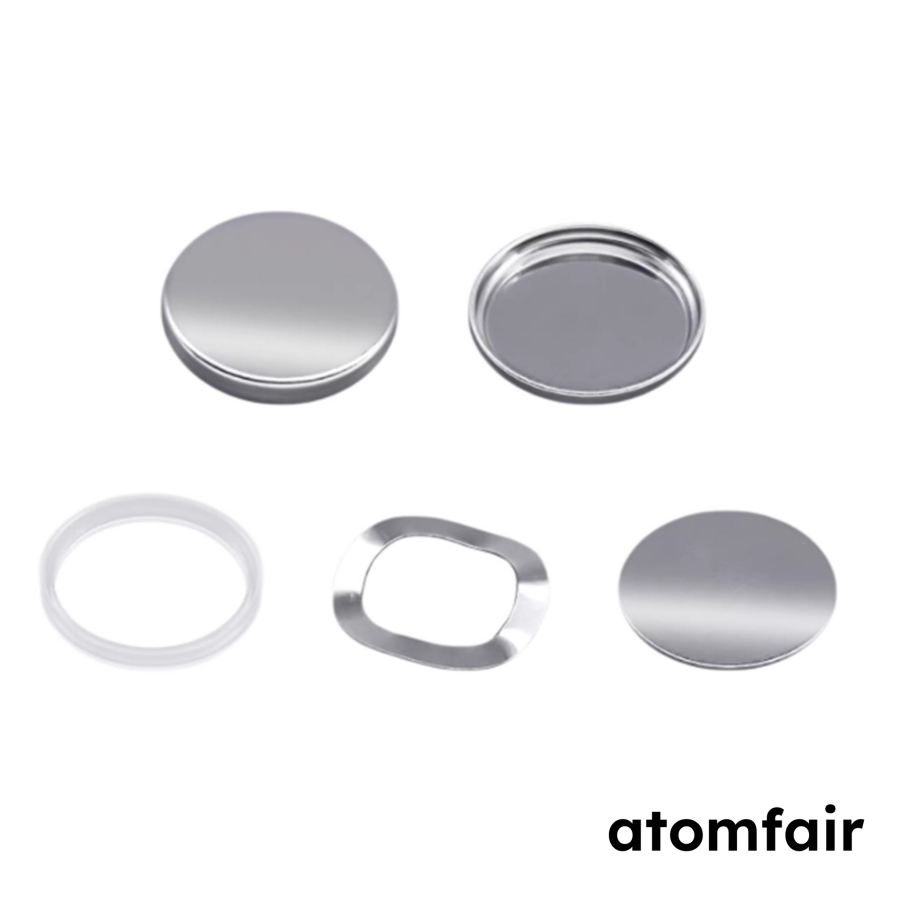

ATOMFAIR® five silver stainless steel coin cell battery case components including seals and springs on a white background.

CR2016 316L/304 Stainless Steel Coin Cell Case Set ATOMFAIR®

$170.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade ATOMFAIR® CR2016 316L/304 stainless steel coin cell case set with 15.8×0.5mm spacers and 15.4×1.1mm springs for battery research. Order now.

SKU: AFMSGMNR700
Category:
Tags: , ,
Brands:

Description

ATOMFAIR® CR2016 Coin Cell Case Sets

RESEARCH GRADE MATERIAL

Product Overview
Premium CR2016 cell cases for battery research. Includes 316L/304 stainless steel cases, 15.8 × 0.5 mm spacers, and 15.4 × 1.1 mm springs for academic R&D. Designed to provide standardized hardware support for accurate and reproducible experimental data across all cutting-edge research systems. If you require other sizes, please email inquiry@atomfair.com for customization.

ATOMFAIR® CR2016 Coin Cell Case Sets
ITEM DESCRIPTION
Product Name ATOMFAIR® CR2016 Coin Cell Case Sets
Included Components 316L/304 Stainless Steel Cases, 15.8 × 0.5 mm Spacers, 15.4 × 1.1 mm Springs
Intended Use Premium cell cases designed specifically for battery research in academic R&D environments
Customization Options For other sizes or custom specifications, please email inquiry@atomfair.com to request customization.

Research-Grade Core Quality Advantages
  • Uniform High-Precision Tolerance Control: All component dimensions strictly controlled within ±0.02 mm, ensuring perfect matching across different batches and components, completely eliminating assembly gaps and uneven pressure issues caused by dimensional errors.
  • Full Material Gradient Coverage: Provides a complete material selection from basic to high-end, allowing flexible selection based on corrosivity, voltage range, and testing precision requirements of your experimental system, avoiding experimental failure due to mismatched consumables.
  • Rigorous Electrochemical Compatibility Verification: All materials have undergone constant potential polarization, cyclic voltammetry, and other electrochemical tests to ensure no side reactions within a -0.5 V to 5.0 V voltage range, guaranteeing no interference with battery performance test results.
  • Standardized Batch Production: Fully automated production and quality control ensures highly consistent product performance within and across batches, effectively reducing experimental systematic errors.

APPLICATION SCOPE: Standardized testing and prototype preparation for conventional lithium-ion batteries, sodium-ion batteries, all-solid-state batteries, lithium-air batteries, high-voltage batteries, and other cutting-edge research systems.
PACKAGING: Standard packaging of 1000 sets/pack. 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment, ensuring oil-free, burr-free, and impurity-free conditions. Can be used directly for battery assembly inside gloveboxes.
IMPORTANT NOTICE: This series is a one-stop assembly solution for coin cells dedicated to electrochemical research. Default accompanying accessories are made of 304 stainless steel. If other materials or special dimensions are required, please email inquiry@atomfair.com for customization.

This series is a one-stop assembly solution for coin cells dedicated to electrochemical research, comprehensively covering the three mainstream models CR2032, CR2025, and CR2016. It provides a full material and specification selection of three core components—positive/negative electrode cases, conductive spacers, and elastic springs—with a unified packaging specification of 1000 sets/pack. Independent purchase of single components is supported, and pre-matched complete assembly kits are also available. Fully compatible with all cutting-edge research systems, including conventional lithium-ion batteries, sodium-ion batteries, all-solid-state batteries, lithium-air batteries, and high-voltage batteries, it provides standardized hardware support for the accuracy and reproducibility of experimental data.
Important Note: Default accompanying accessories are made of 304 stainless steel. For accessories made of other materials, please email inquiry@atomfair.com for customization.

I. Positive/Negative Electrode Cases
Type Classification Material / Special Structure Compatible Models Core Performance Parameters Optimal Application Scenarios
Basic Universal 304 Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥5 MPa
Operating Temp. -40°C to 120°C		 Conventional Li-ion/Na-ion batteries, aqueous battery basic testing, batch prototype preparation
Basic Universal 316L Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥6 MPa
Operating Temp. -40°C to 150°C		 Sulfide solid-state batteries, high-voltage batteries (>4.5 V), long-term cycling tests, highly corrosive systems
High-Performance Coated Aluminum Coated CR2032/CR2025/CR2016 Coating Thickness 5–10 μm
Adhesion ≥5B Grade
Volume Resistivity ≤3×10⁻⁸ Ω·m		 Lightweight batteries, low contact resistance precision testing, systems sensitive to metal ion contamination
High-Performance Coated Titanium Coated CR2032/CR2025/CR2016 Coating Thickness 3–8 μm
Excellent Biocompatibility
Resistant to Strong Acid/Base Corrosion		 Bio-batteries, aqueous zinc batteries, strongly acidic/alkaline electrolyte systems
High-Performance Coated Nickel Coated CR2032/CR2025/CR2016 Coating Thickness 5–12 μm
Excellent Weldability
Atmospheric Corrosion Resistant		 Battery structures requiring tab welding, pilot-scale batch production, routine electrochemical testing
High-Performance Coated Gold Coated CR2032/CR2025/CR2016 Coating Thickness 0.5–2 μm
Contact Resistance ≤1 mΩ
Superior Chemical Stability		 Ultra-precision electrochemical testing, EIS testing, micro-current testing, in-situ characterization
Specialized Research Li-Air Mesh Type CR2032/CR2025/CR2016 Pore Size 0.2–0.5 μm
Waterproof Rating IP67
Uniform Gas Distribution Design		 Lithium-air batteries, lithium-oxygen batteries, gas-involved reaction battery systems
Specialized Research Kapton Window Type CR2032/CR2025/CR2016 Window Thickness 25–50 μm
Optical Transmittance ≥85%
Electrolyte Corrosion Resistant		 In-situ optical characterization, in-situ Raman/IR spectroscopy, in-situ microscopy observation

II. Conductive Spacers
Default Size: Φ15.8 × 0.5 mm, compatible with the internal dimensions of all CR20 series cell cases. Other thicknesses and special sizes are customizable; please email inquiry@atomfair.com for customization.
Material Available Size (Diameter × Thickness) Core Performance Parameters Optimal Application Scenarios
99.5% Industrial Pure Aluminum Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Volume Resistivity 2.7×10⁻⁸ Ω·m
No Electrochemical Side Reactions		 Precision experiments requiring high contact resistance, conventional Li-ion/Na-ion batteries
304 Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
High Mechanical Strength
General Corrosion Resistant		 Most routine testing scenarios, aqueous batteries, low-to-medium voltage systems
316L Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Sulfide/Chloride Ion Corrosion Resistant
High Temperature Resistant		 Sulfide solid-state batteries, high-voltage batteries, highly corrosive systems, long-term cycling tests

III. Elastic Springs
Default Size: φ15.4 × 0.3 mm, compatible with the internal dimensions of all CR20 series cell cases. Other heights and special sizes are customizable; please email inquiry@atomfair.com for customization.
Spring Type Available Materials Available Size (Diameter × Free Height) Core Performance Parameters Optimal Application Scenarios
Wave Spring (Belleville) Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles		 Most routine testing, thin electrodes, low-loading batteries; universal preferred choice
Conical Spring Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 10 N–50 N
Good Self-Centering
Strong Anti-Buckling
Fatigue Life ≥10,000 cycles		 Thick electrodes, high-loading batteries, vibration environment testing, systems requiring precise pressure control

IV. Complete Assembly Kit Specifications
Kit Type Included Components Corresponding Battery Model Configurable Options Packaging Specification
Standard Assembly Kit Positive Case + Negative Case + Spacer + Spring CR2032/CR2025/CR2016 All materials freely combinable
Spacer thickness customizable
Spring height customizable		 1000 Sets/Pack
Li-Air Dedicated Kit Mesh Positive Case + Negative Case + Waterproof Breathable Membrane + Spacer + Spring CR2032/CR2025/CR2016 304/316L SS material optional
Spacer thickness customizable
Spring height customizable		 1000 Sets/Pack
In-Situ Characterization Kit Kapton Window Cell Case + Gold Coated Spacer + Gold Coated Spring CR2032/CR2025/CR2016 Window thickness optional
Spacer thickness customizable
Spring height customizable		 1000 Sets/Pack

International Quality Standards
  • Stainless steel materials comply with ASTM A240 international standard.
  • Pure aluminum materials comply with ASTM B209 international standard.
  • All coating thicknesses are uniform, with adhesion meeting ASTM B571 standard.
  • 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment.
  • Oil-free, burr-free, and impurity-free; ready for direct use in glovebox battery assembly.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

ATOMFAIR CR2016 coin cell case sets are precision-machined stainless steel components for battery research. These components require strict dimensional tolerance control and material selection appropriate for the electrolyte corrosivity and operating voltage range.

  • Dimensional Tolerance: All components feature dimensions controlled within ±0.02 mm to ensure proper fit and prevent assembly gaps or uneven pressure.
  • Material Compatibility: The 316L/304 stainless steel cases and spacers must be selected based on the corrosivity and voltage range of the experimental system to avoid failure.
  • Batch Consistency: The precision tolerance ensures consistent performance across different batches and components.

What are the performance trade-offs between 316L and 304 stainless steel cases in CR2016 coin cell assemblies for high-voltage battery research?

The default accompanying accessories are 304 stainless steel; 316L offers superior corrosion resistance for aggressive electrolytes. Both materials are electrochemically verified to avoid side reactions within -0.5 V to 5.0 V, ensuring no interference with battery performance tests. For high-voltage or corrosive systems, 316L is recommended to mitigate pitting corrosion risk, while 304 is suitable for standard lithium-ion and sodium-ion chemistries.

Can the 15.8 × 0.5 mm spacers and 15.4 × 1.1 mm springs from the CR2016 set be used with thicker electrode stacks or alternative cathode/anode materials?

The spacers and springs are specifically dimensioned for CR2016 cell height (1.6 mm internal clearance). The spacer is 15.8 mm diameter × 0.5 mm thickness; the spring is 15.4 mm × 1.1 mm. For thicker electrode stacks, alternative spacer thicknesses may be required to maintain proper stack pressure. Customization is available by emailing inquiry@atomfair.com for non-standard dimensions.

What are the recommended storage and handling conditions for ATOMFAIR CR2016 coin cell case sets to ensure electrochemical cleanliness for glovebox assembly?

The cases are shipped with 100% dimensional inspection, sealing performance testing, and appearance inspection ensuring oil-free, burr-free, and impurity-free conditions. They can be used directly for battery assembly inside gloveboxes without additional cleaning. For extended storage, keep in original sealed packaging in a dry, inert atmosphere to prevent oxidation; avoid exposure to humidity to maintain surface passivation.

The Atomfair CR2016 coin cell case sets offer research-grade precision with ±0.02 mm tolerance control and verified electrochemical compatibility across -0.5 V to 5.0 V, making them suitable for standardized battery R&D. However, the default 304 stainless steel spacers and springs may limit use with highly corrosive electrolytes, and the fixed CR2016 form factor requires customization for other sizes.

Positive

  • High-precision dimensional tolerance: All component dimensions controlled within ±0.02 mm, ensuring consistent assembly, eliminating gaps and uneven pressure across batches for reproducible experimental data.
  • Rigorous electrochemical verification: Materials tested via constant potential polarization and cyclic voltammetry, confirming no side reactions within -0.5 V to 5.0 V range, preventing interference with battery performance measurements.

Trade-offs

  • Default 304 SS accessories limit corrosion resistance: Standard spacers and springs are 304 stainless steel, which may corrode in aggressive electrolyte chemistries; 316L or other materials require custom ordering.
  • Fixed CR2016 form factor constrains geometry: Sized only for CR2016 coin cells; spacer (15.8×0.5 mm) and spring (15.4×1.1 mm) dimensions are not adjustable for non-standard electrode stacks without customization.
