Description

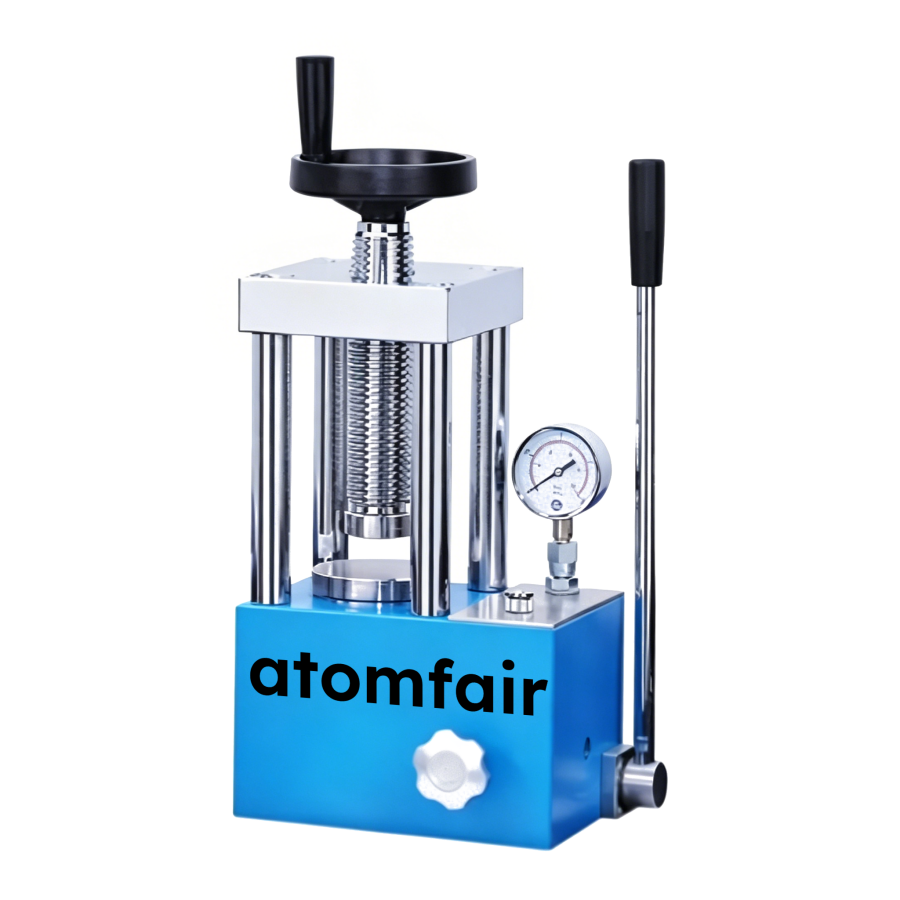

ATOMFAIR® PTP-395 POWDER TABLET PRESS (0−15 TON)RESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Store the press in a clean, dry environment to prevent contamination of the hydraulic system. Never exceed the rated 15-ton pressure to avoid oil leakage or structural damage.
- Environment Requirement: Operate the press in a clean, dry area; glove box integration is supported for controlled atmospheres.
- Pressure Safety: Use only within the 0-15 ton pressure range to prevent mechanical failure and ensure operator safety.
- Oil Leak Prevention: Regularly inspect the integrated main board seals for signs of wear to maintain leak-free operation.
This procedure guides safe and effective preparation of powder pellets using the manual hydraulic press. Adjust the target pressure based on material requirements and use the optional gauge for precise monitoring.
Required Equipment: Atomfair PTP-395 Powder Tablet Press, Optional Digital Pressure Gauge
- Prepare the Die
Load the powder sample into the die and ensure even distribution before placing it on the press platen. - Apply Pressure
Operate the pump handle to gradually increase pressure until the desired force is indicated on the gauge. - Hold Pressure
Maintain the set pressure for a dwell time sufficient to form a stable pellet, typically a few seconds. - Release Pressure
Slowly release the hydraulic pressure by opening the release valve and retract the piston completely. - Remove Pellet
Carefully take the die off the press and disassemble it to extract the pressed powder pellet.
Does the compact 28kg, 225×155×380mm form factor compromise pressing force uniformity or repeatability at the 15-ton maximum?
The compact form factor does not inherently compromise force uniformity or repeatability at 15 tons because the 2-column integrated main board structure provides sufficient rigidity for the specified pressure range. The press is designed for miniaturized infrared sample preparation, and the optional digital pressure gauge allows precise monitoring to ensure consistent pellet quality.
Can the Atomfair PTP-395 be used directly inside an argon-filled glove box for air-sensitive powder pressing without modification?
Yes, the PTP-395 is designed specifically for glove box use due to its compact size (225×155×380mm), light weight (28kg), and anti-oil leak design that minimizes hydraulic fluid vapor release. The non-sealed connection and integrated board structure reduce oil leakage risk, making it suitable for confined, inert-atmosphere environments without requiring external modification.
What specific handling precautions are necessary when moving the 28kg press in and out of a glove box?
The press weighs 28kg with dimensions 225×155×380mm, requiring two-person lift or a mechanical aid to safely transfer through a glove box antechamber. Its compact size and light weight relative to standard presses facilitate handling, but care must be taken to avoid damaging the integrated board structure or hydraulic components during transport.
The Atomfair PTP-395 Powder Tablet Press offers a compact, 2-column integrated design with reduced oil leakage, suitable for glove box use and infrared sample preparation. Its 0-15 ton pressure range and 30mm piston stroke impose specific limits on sample size and pressure requirements.
Positive
- Anti-oil leak integrated structure: The 2-column integrated main board with non-sealed connection design greatly reduces oil leakage, enhancing reliability for long-term lab use.
- Compact and glove-box compatible: With dimensions 225×155×380mm and weight 28kg, the press can be placed inside a glove box for inert-atmosphere powder tableting, enabling air-sensitive sample preparation.
Trade-offs
- Piston stroke 30mm limitation: The 30mm piston stroke restricts the maximum pellet thickness or die cavity depth, which may limit certain sample geometries or multi-layer pressing applications.
- Digital pressure gauge optional: Precise pressure monitoring requires an optional digital gauge; the base unit lacks a built-in readout, necessitating an additional purchase for quantitative pressure control.
