Highlyconductive single-walledcarbon nanotubes, OD 1-2 nm, length 5-30um; Cond>2000 s/cm; SSA>1075 m2/gor; SSA>600 m2/g, purity >95%Product Type: Single-walled carbon nanotube material
Research-grade laboratory product
|
|||||||||||||||||||
|
|||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, material specification matching, application fit or quotation confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||
|
Supplier: Atomfair
Brand: ATOMFAIR®
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
The material must be matched to the intended dispersion, composite, film, electrode, or conductivity workflow to ensure proper performance. Specification confirmation includes diameter, length, purity, surface area, functionalization, and availability notes for the selected CNT powder.
- Workflow Matching Requirement: Match the material form and dimensional or concentration specification to the intended dispersion, composite, film, electrode, conductivity or nanocarbon research workflow.
What purity and conductivity specifications are guaranteed for this SWCNT material, and how do the two specific surface area options affect material selection for conductive coatings?
The product guarantees purity >95%, electrical conductivity >2000 S/cm, outer diameter 1-2 nm, and length 5-30 µm. The specific surface area is either >1075 m²/g or >600 m²/g, depending on the selected form. The higher SSA variant is suitable for applications requiring maximum surface area, while the lower SSA variant may be preferred for minimizing aggregation in conductive coatings. Both options maintain the same high conductivity.
What functionalization options are available for this SWCNT material to ensure compatibility with different polymer matrices or dispersion media?
The product can be supplied in pristine, hydroxylated, carboxylated, amino-modified, graphitized, doped, and coated grades. These functionalized variants are matched to dispersion, electrode, composite, or conductivity workflows. The specific functional group should be selected based on the intended application to achieve optimal dispersion and integration.
Is this SWCNT material supplied as a dry powder, and what are the key considerations for handling and storage in a laboratory environment?

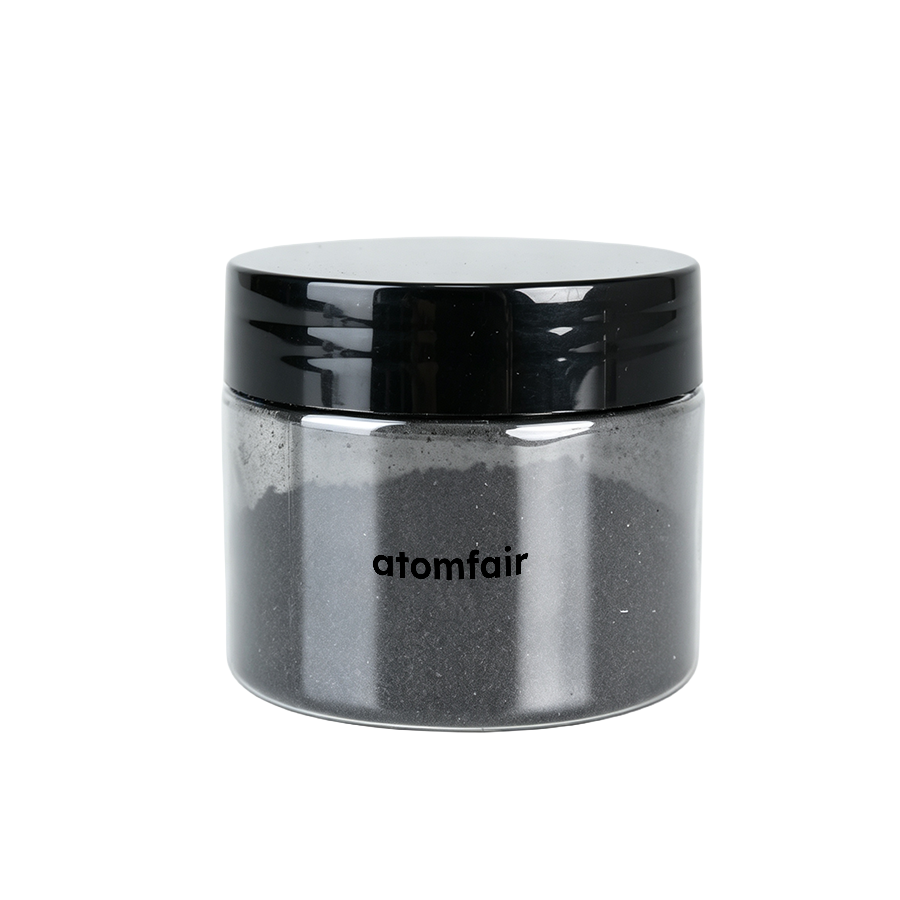

The product is supplied as a dry CNT powder, as indicated in the quotation notes. It is a research-grade laboratory product requiring standard precautions for nanomaterial handling, including use of personal protective equipment and fume hoods. The manufacturer recommends confirming package size and application requirements before quotation, and the material should be stored in a dry, sealed container to prevent contamination.
This single-walled carbon nanotube material (SKU AF-NM-C-SWCN-S030-R015) offers a conductivity exceeding 2000 S/cm and a specific surface area up to 1075 m²/g, making it suitable for high-performance electrode and conductive composite applications. The 1-2 nm outer diameter and >95% purity support consistent dispersion and electronic properties, though the 5-30 µm length range requires careful dispersion protocol optimization to avoid aggregation.
Positive
- High electrical conductivity: Conductivity >2000 S/cm enables use in conductive films, electrodes, and percolated networks with minimal loading.
- Large specific surface area: SSA up to 1075 m²/g provides extensive interface for charge transfer or catalyst support in electrochemical systems.
Trade-offs
- Dispersion challenges from high aspect ratio: Length of 5-30 µm combined with 1-2 nm diameter creates a high aspect ratio that requires optimized sonication or surfactant protocols to prevent bundling.
- Purity-dependent performance consistency: Purity >95% leaves up to 5% residual catalyst or amorphous carbon, which may affect batch-to-batch reproducibility in sensitive electronic or catalytic applications.
