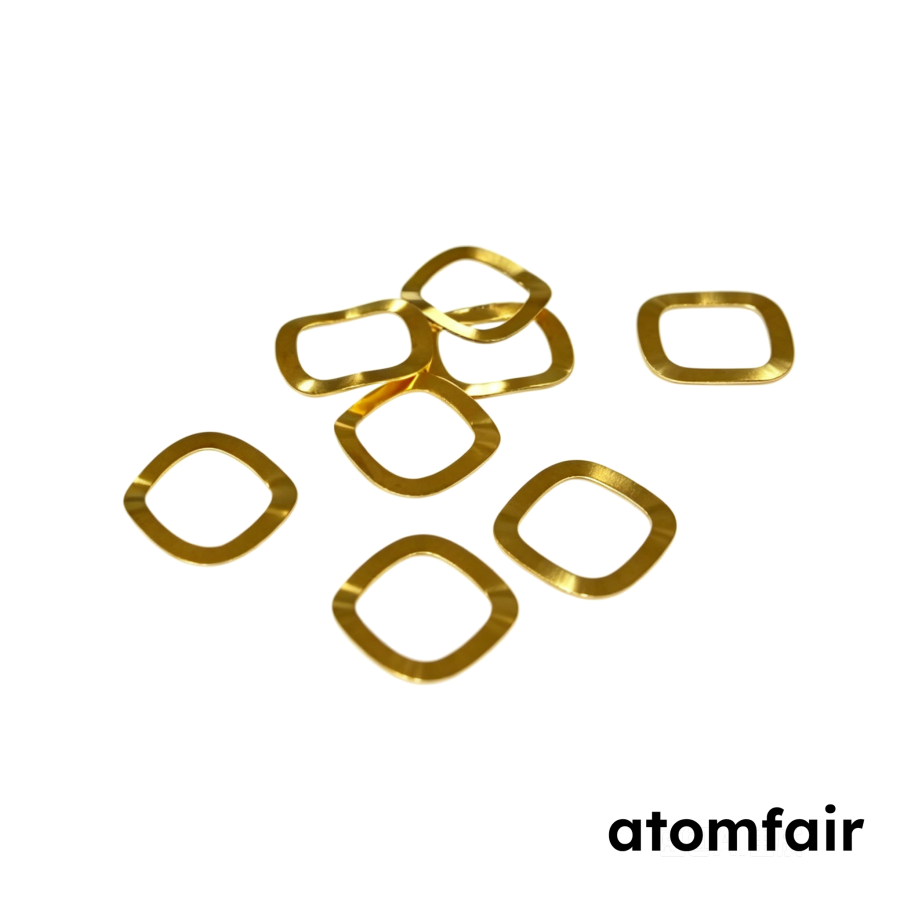

ATOMFAIR® small group of gold au-coated wave spring washers clustered on a white background.

Au-Coated Wave Springs 15.4×1.1mm Research Grade ATOMFAIR®

$89.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade Au-coated wave springs 15.4×1.1mm with 0.5–2μm gold coating, contact resistance ≤1mΩ, spring force 5-30N. Ideal for battery testing. Order now.

SKU: AFMSFIGD900
Category:
Tags: ,
Brands:

Description

ATOMFAIR® Au-Coated Wave Springs

RESEARCH GRADE MATERIAL

Product Overview
Premium gold-coated wave springs (15.4 × 1.1 mm) for battery research. Features specialized Au-plating with coating thickness 0.5–2 μm to minimize contact resistance (≤1 mΩ) and maximize electrochemical stability under demanding experimental conditions. Engineered with a large contact area and small footprint design with a spring force range of 5 N–30 N and fatigue life ≥10,000 cycles, making it the universal preferred choice for most routine testing. Custom sizes are available upon request. If you require other sizes and materials, please email inquiry@atomfair.com for customization.

ATOMFAIR® Au-Coated Wave Springs
ITEM DESCRIPTION
Product Name ATOMFAIR® Au-Coated Wave Springs
Spring Type Wave Spring (Belleville)
Material Gold-Coated Stainless Steel (Coating Thickness 0.5–2 μm, Contact Resistance ≤1 mΩ)
Dimensions (Diameter × Free Height) 15.4 × 1.1 mm (Default)
Packaging Specification 10 Pieces/Pack
Core Performance Parameters Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles
Superior Chemical Stability
Optimal Application Scenarios Ultra-precision electrochemical testing, EIS testing, micro-current testing, in-situ characterization, thin electrodes, low-loading batteries; universal preferred choice for most routine testing
Customization Options For other sizes and materials, please email inquiry@atomfair.com to request customization.

Research-Grade Core Quality Advantages
  • Uniform High-Precision Tolerance Control: All component dimensions strictly controlled within ±0.02 mm, ensuring perfect matching across different batches and components, completely eliminating assembly gaps and uneven pressure issues caused by dimensional errors.
  • Full Material Gradient Coverage: Provides a complete material selection from basic to high-end, allowing flexible selection based on corrosivity, voltage range, and testing precision requirements of your experimental system, avoiding experimental failure due to mismatched consumables.
  • Rigorous Electrochemical Compatibility Verification: All materials have undergone constant potential polarization, cyclic voltammetry, and other electrochemical tests to ensure no side reactions within a -0.5 V to 5.0 V voltage range, guaranteeing no interference with battery performance test results.
  • Standardized Batch Production: Fully automated production and quality control ensures highly consistent product performance within and across batches, effectively reducing experimental systematic errors.

APPLICATION SCOPE: Precision assembly and standardized testing for ultra-precision electrochemical experiments, EIS measurements, micro-current testing, in-situ characterization, thin-electrode low-loading batteries, and all routine testing systems requiring minimal contact resistance with a compact footprint.
PACKAGING: 10 pieces/pack. 100% dimensional inspection, coating thickness verification, and appearance inspection before shipment, ensuring oil-free, burr-free, and impurity-free conditions. Can be used directly for battery assembly inside gloveboxes.
IMPORTANT NOTICE: This series is a one-stop assembly solution for coin cells dedicated to electrochemical research. Default accompanying accessories are made of 304 stainless steel. If other materials or special dimensions are required, please email inquiry@atomfair.com for customization.



This series is a one-stop assembly solution for coin cells dedicated to electrochemical research, comprehensively covering the three mainstream models CR2032, CR2025, and CR2016. It provides a full material and specification selection of three core components—positive/negative electrode cases, conductive spacers, and elastic springs. Independent purchase of single components is supported, and pre-matched complete assembly kits are also available. Fully compatible with all cutting-edge research systems, including conventional lithium-ion batteries, sodium-ion batteries, all-solid-state batteries, lithium-air batteries, and high-voltage batteries, it provides standardized hardware support for the accuracy and reproducibility of experimental data.
Important Note: Default accompanying accessories are made of 304 stainless steel. For accessories made of other materials, please email inquiry@atomfair.com for customization.

I. Positive/Negative Electrode Cases
Type Classification Material / Special Structure Compatible Models Core Performance Parameters Optimal Application Scenarios
Basic Universal 304 Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥5 MPa
Operating Temp. -40°C to 120°C		 Conventional Li-ion/Na-ion batteries, aqueous battery basic testing, batch prototype preparation
Basic Universal 316L Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥6 MPa
Operating Temp. -40°C to 150°C		 Sulfide solid-state batteries, high-voltage batteries (>4.5 V), long-term cycling tests, highly corrosive systems
High-Performance Coated Aluminum Coated CR2032/CR2025/CR2016 Coating Thickness 5–10 μm
Adhesion ≥5B Grade
Volume Resistivity ≤3×10⁻⁸ Ω·m		 Lightweight batteries, low contact resistance precision testing, systems sensitive to metal ion contamination
High-Performance Coated Titanium Coated CR2032/CR2025/CR2016 Coating Thickness 3–8 μm
Excellent Biocompatibility
Resistant to Strong Acid/Base Corrosion		 Bio-batteries, aqueous zinc batteries, strongly acidic/alkaline electrolyte systems
High-Performance Coated Nickel Coated CR2032/CR2025/CR2016 Coating Thickness 5–12 μm
Excellent Weldability
Atmospheric Corrosion Resistant		 Battery structures requiring tab welding, pilot-scale batch production, routine electrochemical testing
High-Performance Coated Gold Coated CR2032/CR2025/CR2016 Coating Thickness 0.5–2 μm
Contact Resistance ≤1 mΩ
Superior Chemical Stability		 Ultra-precision electrochemical testing, EIS testing, micro-current testing, in-situ characterization
Specialized Research Li-Air Mesh Type CR2032/CR2025/CR2016 Pore Size 0.2–0.5 μm
Waterproof Rating IP67
Uniform Gas Distribution Design		 Lithium-air batteries, lithium-oxygen batteries, gas-involved reaction battery systems
Specialized Research Kapton Window Type CR2032/CR2025/CR2016 Window Thickness 25–50 μm
Optical Transmittance ≥85%
Electrolyte Corrosion Resistant		 In-situ optical characterization, in-situ Raman/IR spectroscopy, in-situ microscopy observation

II. Conductive Spacers
Default Size: Φ15.8 × 0.5 mm, compatible with the internal dimensions of all CR20 series cell cases. Other thicknesses and special sizes are customizable; please email inquiry@atomfair.com for customization.
Material Available Size (Diameter × Thickness) Core Performance Parameters Optimal Application Scenarios
99.5% Industrial Pure Aluminum Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Volume Resistivity 2.7×10⁻⁸ Ω·m
No Electrochemical Side Reactions		 Precision experiments requiring high contact resistance, conventional Li-ion/Na-ion batteries
304 Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
High Mechanical Strength
General Corrosion Resistant		 Most routine testing scenarios, aqueous batteries, low-to-medium voltage systems
316L Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Sulfide/Chloride Ion Corrosion Resistant
High Temperature Resistant		 Sulfide solid-state batteries, high-voltage batteries, highly corrosive systems, long-term cycling tests

III. Elastic Springs
Default Size: φ15.4 × 0.3 mm, compatible with the internal dimensions of all CR20 series cell cases. Other heights and special sizes are customizable; please email inquiry@atomfair.com for customization.
Spring Type Available Materials Available Size (Diameter × Free Height) Core Performance Parameters Optimal Application Scenarios
Wave Spring (Belleville) Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles		 Most routine testing, thin electrodes, low-loading batteries; universal preferred choice
Conical Spring Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 10 N–50 N
Good Self-Centering
Strong Anti-Buckling
Fatigue Life ≥10,000 cycles		 Thick electrodes, high-loading batteries, vibration environment testing, systems requiring precise pressure control

IV. Complete Assembly Kit Specifications
Kit Type Included Components Corresponding Battery Model Configurable Options
Standard Assembly Kit Positive Case + Negative Case + Spacer + Spring CR2032/CR2025/CR2016 All materials freely combinable
Spacer thickness customizable
Spring height customizable
Li-Air Dedicated Kit Mesh Positive Case + Negative Case + Waterproof Breathable Membrane + Spacer + Spring CR2032/CR2025/CR2016 304/316L SS material optional
Spacer thickness customizable
Spring height customizable
In-Situ Characterization Kit Kapton Window Cell Case + Gold Coated Spacer + Gold Coated Spring CR2032/CR2025/CR2016 Window thickness optional
Spacer thickness customizable
Spring height customizable

International Quality Standards
  • Stainless steel materials comply with ASTM A240 international standard.
  • Pure aluminum materials comply with ASTM B209 international standard.
  • All coating thicknesses are uniform, with adhesion meeting ASTM B571 standard.
  • 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment.
  • Oil-free, burr-free, and impurity-free; ready for direct use in glovebox battery assembly.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

These gold-coated wave springs require careful handling to preserve the 0.5–2 μm gold layer and maintain ≤1 mΩ contact resistance. The spring force must be kept within 5–30 N to avoid premature fatigue and ensure ≥10,000 cycle lifetime.

  • Coating Thickness Tolerance: Handle with non-abrasive tools to avoid scratching or wearing the gold coating.
  • Contact Resistance Limit: Ensure clean, oxide-free contact surfaces to achieve the specified ≤1 mΩ contact resistance.
  • Spring Force Range: Do not compress the spring beyond its free height to an extent that exceeds 30 N maximum force.
  • Fatigue Life Requirement: Limit repeated compression cycles to within the rated force range to achieve ≥10,000 cycle lifetime.

How does the gold coating thickness range of 0.5 to 2 μm affect contact resistance and mechanical fatigue life in these wave springs?

The gold coating is engineered to achieve a contact resistance ≤1 mΩ while maintaining a fatigue life ≥10,000 cycles across the entire thickness range. The 0.5–2 μm plating provides sufficient conductivity without compromising the spring's mechanical flexibility and durability.

What is the maximum voltage window these Au-coated wave springs can withstand without electrochemical degradation, and are they compatible with thin-electrode low-loading battery configurations?

The springs have been electrochemically verified to have no side reactions within -0.5 V to 5.0 V, making them suitable for most standard battery testing. Their large contact area and small footprint (15.4 × 1.1 mm) are specifically optimized for thin-electrode and low-loading battery assemblies requiring minimal contact resistance.

Are the ATOMFAIR Au-coated wave springs ready for immediate use in an argon glovebox without additional cleaning or preparation?

Yes, each pack undergoes 100% dimensional and coating inspection and is verified oil-free, burr-free, and impurity-free before shipment. They can be used directly from the packaging for battery assembly inside gloveboxes, eliminating pre-cleaning steps.

The ATOMFAIR® Au-Coated Wave Springs offer a gold-plated stainless steel design (0.5–2 μm coating, ≤1 mΩ contact resistance) for ultra-precision electrochemical testing, providing consistent spring force (5–30 N) and fatigue life ≥10,000 cycles; however, the single default size (15.4 × 1.1 mm) and fixed force range may require customization for non-standard battery assemblies.

Positive

  • Ultra-Low Contact Resistance: Gold coating (0.5–2 μm) achieves contact resistance ≤1 mΩ, minimizing electrical losses in EIS and micro-current measurements.
  • Broad Electrochemical Stability: Validated via constant potential polarization and cyclic voltammetry to remain inert from -0.5 V to 5.0 V, ensuring no interference with battery test results.

Trade-offs

  • Fixed Force Range Only: Spring force is limited to 5–30 N from a single spring geometry; applications requiring forces outside this range cannot be directly accommodated.
  • Single Default Dimension: Standard size (15.4 × 1.1 mm) is non-adjustable; alternative sizes require custom orders, adding lead time and minimum quantity constraints.
