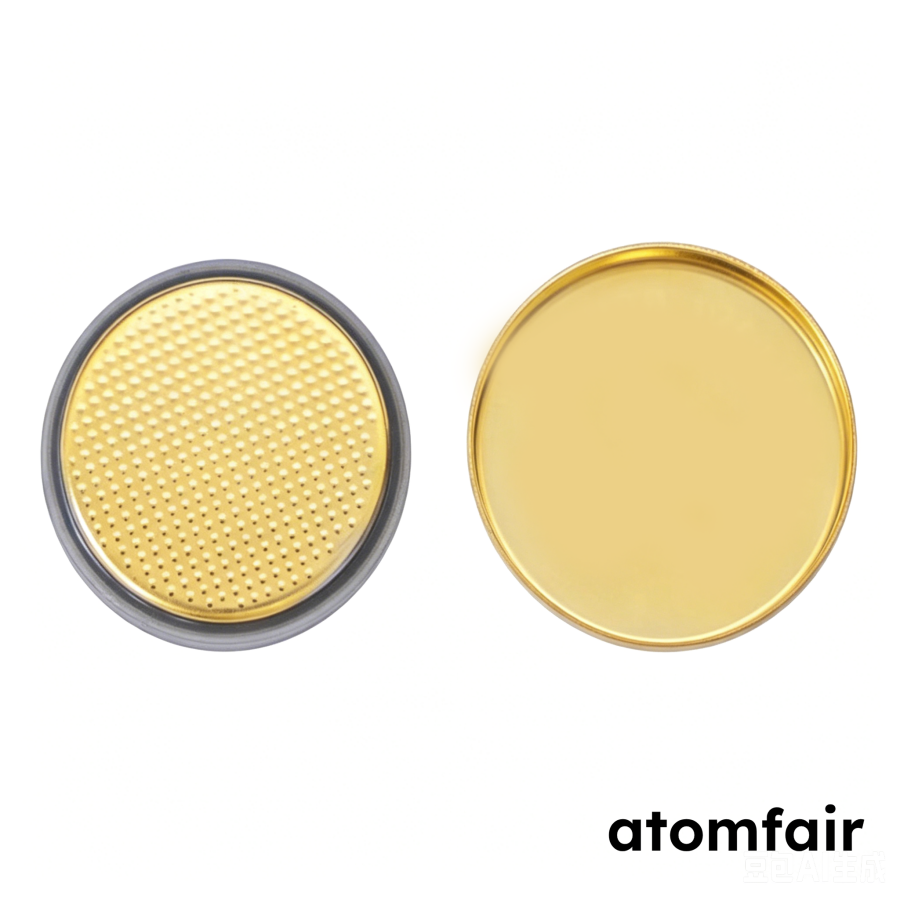

ATOMFAIR® gold au-coated coin cell case sets showing a textured mesh top cap with a black gasket next to a smooth bottom cup.

Au-Coated Coin Cell Case Sets 0.5-2μm Gold ATOMFAIR®

$100.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade Au-coated CR2032 coin cell case sets: 0.5-2μm gold on 316L SS, ≤1 mΩ contact resistance. Includes spacers & springs, 10/pack. Order now.

SKU: AFMSUMXH404
Category:
Tags: ,
Brands:

Description

ATOMFAIR® Au-Coated Coin Cell Case Sets

RESEARCH GRADE MATERIAL

Product Overview
Premium Au-coated coin cell cases for wide electrochemical window testing. Features specialized gold-plated positive and negative cases with coating thickness 0.5–2 μm on 316L/304 stainless steel substrates, 15.8 × 0.5 mm spacers, and 15.4 × 1.1 mm springs. Engineered to achieve contact resistance ≤1 mΩ and superior chemical stability, delivering standardized hardware support for rigorous R&D including ultra-precision electrochemical testing, EIS, micro-current measurements, and in-situ characterization. If you require other sizes, models, and materials, please email inquiry@atomfair.com for customization.

ATOMFAIR® Au-Coated Coin Cell Case Sets
ITEM DESCRIPTION
Product Name ATOMFAIR® Au-Coated Coin Cell Case Sets
Model CR2032
Case Material & Coating Gold-Coated (0.5–2 μm, Contact Resistance ≤1 mΩ) on 316L/304 Stainless Steel Substrate
Included Components Au-Coated Positive Case + Au-Coated Negative Case + 15.8 × 0.5 mm Spacers + 15.4 × 1.1 mm Springs
Packaging Specification 10 Sets/Pack
Intended Use Wide electrochemical window testing, ultra-precision electrochemical experiments, EIS, micro-current testing, in-situ characterization, and rigorous R&D applications
Customization Options For other sizes, models, and materials, please email inquiry@atomfair.com to request customization.

Research-Grade Core Quality Advantages
  • Uniform High-Precision Tolerance Control: All component dimensions strictly controlled within ±0.02 mm, ensuring perfect matching across different batches and components, completely eliminating assembly gaps and uneven pressure issues caused by dimensional errors.
  • Full Material Gradient Coverage: Provides a complete material selection from basic to high-end, allowing flexible selection based on corrosivity, voltage range, and testing precision requirements of your experimental system, avoiding experimental failure due to mismatched consumables.
  • Rigorous Electrochemical Compatibility Verification: All materials have undergone constant potential polarization, cyclic voltammetry, and other electrochemical tests to ensure no side reactions within a -0.5 V to 5.0 V voltage range, guaranteeing no interference with battery performance test results.
  • Standardized Batch Production: Fully automated production and quality control ensures highly consistent product performance within and across batches, effectively reducing experimental systematic errors.

APPLICATION SCOPE: Precision assembly and standardized testing for ultra-precision electrochemical experiments, EIS measurements, micro-current testing, in-situ characterization, and all rigorous R&D applications requiring wide electrochemical windows with superior chemical stability and minimal contact resistance.
PACKAGING: 10 sets/pack. 100% dimensional inspection, coating thickness verification, sealing performance testing, and appearance inspection before shipment, ensuring oil-free, burr-free, and impurity-free conditions. Can be used directly for battery assembly inside gloveboxes.
IMPORTANT NOTICE: This series is a one-stop assembly solution for coin cells dedicated to electrochemical research. Default accompanying accessories are made of 304 stainless steel. If other materials or special dimensions are required, please email inquiry@atomfair.com for customization.



This series is a one-stop assembly solution for coin cells dedicated to electrochemical research, comprehensively covering the three mainstream models CR2032, CR2025, and CR2016. It provides a full material and specification selection of three core components—positive/negative electrode cases, conductive spacers, and elastic springs. Independent purchase of single components is supported, and pre-matched complete assembly kits are also available. Fully compatible with all cutting-edge research systems, including conventional lithium-ion batteries, sodium-ion batteries, all-solid-state batteries, lithium-air batteries, and high-voltage batteries, it provides standardized hardware support for the accuracy and reproducibility of experimental data.
Important Note: Default accompanying accessories are made of 304 stainless steel. For accessories made of other materials, please email inquiry@atomfair.com for customization.

I. Positive/Negative Electrode Cases
Type Classification Material / Special Structure Compatible Models Core Performance Parameters Optimal Application Scenarios
Basic Universal 304 Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥5 MPa
Operating Temp. -40°C to 120°C		 Conventional Li-ion/Na-ion batteries, aqueous battery basic testing, batch prototype preparation
Basic Universal 316L Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥6 MPa
Operating Temp. -40°C to 150°C		 Sulfide solid-state batteries, high-voltage batteries (>4.5 V), long-term cycling tests, highly corrosive systems
High-Performance Coated Aluminum Coated CR2032/CR2025/CR2016 Coating Thickness 5–10 μm
Adhesion ≥5B Grade
Volume Resistivity ≤3×10⁻⁸ Ω·m		 Lightweight batteries, low contact resistance precision testing, systems sensitive to metal ion contamination
High-Performance Coated Titanium Coated CR2032/CR2025/CR2016 Coating Thickness 3–8 μm
Excellent Biocompatibility
Resistant to Strong Acid/Base Corrosion		 Bio-batteries, aqueous zinc batteries, strongly acidic/alkaline electrolyte systems
High-Performance Coated Nickel Coated CR2032/CR2025/CR2016 Coating Thickness 5–12 μm
Excellent Weldability
Atmospheric Corrosion Resistant		 Battery structures requiring tab welding, pilot-scale batch production, routine electrochemical testing
High-Performance Coated Gold Coated CR2032/CR2025/CR2016 Coating Thickness 0.5–2 μm
Contact Resistance ≤1 mΩ
Superior Chemical Stability		 Ultra-precision electrochemical testing, EIS testing, micro-current testing, in-situ characterization
Specialized Research Li-Air Mesh Type CR2032/CR2025/CR2016 Pore Size 0.2–0.5 μm
Waterproof Rating IP67
Uniform Gas Distribution Design		 Lithium-air batteries, lithium-oxygen batteries, gas-involved reaction battery systems
Specialized Research Kapton Window Type CR2032/CR2025/CR2016 Window Thickness 25–50 μm
Optical Transmittance ≥85%
Electrolyte Corrosion Resistant		 In-situ optical characterization, in-situ Raman/IR spectroscopy, in-situ microscopy observation

II. Conductive Spacers
Default Size: Φ15.8 × 0.5 mm, compatible with the internal dimensions of all CR20 series cell cases. Other thicknesses and special sizes are customizable; please email inquiry@atomfair.com for customization.
Material Available Size (Diameter × Thickness) Core Performance Parameters Optimal Application Scenarios
99.5% Industrial Pure Aluminum Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Volume Resistivity 2.7×10⁻⁸ Ω·m
No Electrochemical Side Reactions		 Precision experiments requiring high contact resistance, conventional Li-ion/Na-ion batteries
304 Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
High Mechanical Strength
General Corrosion Resistant		 Most routine testing scenarios, aqueous batteries, low-to-medium voltage systems
316L Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Sulfide/Chloride Ion Corrosion Resistant
High Temperature Resistant		 Sulfide solid-state batteries, high-voltage batteries, highly corrosive systems, long-term cycling tests

III. Elastic Springs
Default Size: φ15.4 × 0.3 mm, compatible with the internal dimensions of all CR20 series cell cases. Other heights and special sizes are customizable; please email inquiry@atomfair.com for customization.
Spring Type Available Materials Available Size (Diameter × Free Height) Core Performance Parameters Optimal Application Scenarios
Wave Spring (Belleville) Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles		 Most routine testing, thin electrodes, low-loading batteries; universal preferred choice
Conical Spring Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 10 N–50 N
Good Self-Centering
Strong Anti-Buckling
Fatigue Life ≥10,000 cycles		 Thick electrodes, high-loading batteries, vibration environment testing, systems requiring precise pressure control

IV. Complete Assembly Kit Specifications
Kit Type Included Components Corresponding Battery Model Configurable Options
Standard Assembly Kit Positive Case + Negative Case + Spacer + Spring CR2032/CR2025/CR2016 All materials freely combinable
Spacer thickness customizable
Spring height customizable
Li-Air Dedicated Kit Mesh Positive Case + Negative Case + Waterproof Breathable Membrane + Spacer + Spring CR2032/CR2025/CR2016 304/316L SS material optional
Spacer thickness customizable
Spring height customizable
In-Situ Characterization Kit Kapton Window Cell Case + Gold Coated Spacer + Gold Coated Spring CR2032/CR2025/CR2016 Window thickness optional
Spacer thickness customizable
Spring height customizable

International Quality Standards
  • Stainless steel materials comply with ASTM A240 international standard.
  • Pure aluminum materials comply with ASTM B209 international standard.
  • All coating thicknesses are uniform, with adhesion meeting ASTM B571 standard.
  • 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment.
  • Oil-free, burr-free, and impurity-free; ready for direct use in glovebox battery assembly.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Gold-coated coin cell cases for electrochemical testing with specified contact resistance ≤1 mΩ and coating thickness 0.5–2 μm on 316L/304 stainless steel substrate. The cases are intended for wide electrochemical window testing and require clean, dry handling to maintain performance.

  • Coating Thickness: Gold coating thickness must be maintained within 0.5–2 μm to ensure consistent contact resistance.
  • Contact Resistance: Contact resistance is specified at ≤1 mΩ and requires clean, uncontaminated surfaces.
  • Substrate Material: The substrate is 316L/304 stainless steel, providing mechanical strength and corrosion resistance.
  • Intended Use: The cases are designed for ultra-precision electrochemical testing, EIS, micro-current measurements, and in-situ characterization.

How does the gold coating thickness affect contact resistance and electrochemical stability in ATOMFAIR Au-coated coin cell cases?

The gold coating thickness of 0.5–2 μm ensures a contact resistance of ≤1 mΩ while providing superior chemical stability across a -0.5 V to 5.0 V electrochemical window. Thicker coatings within this range enhance durability without compromising the low contact resistance specification, as all layers are rigorously tested via constant potential polarization and cyclic voltammetry to guarantee no side reactions.

Are ATOMFAIR Au-coated coin cell cases compatible with high-voltage cathode materials like NMC or LCO?

Yes, the gold coating on 316L/304 stainless steel substrates provides a stable electrochemical window from -0.5 V to 5.0 V, verified by constant potential polarization and cyclic voltammetry, ensuring no side reactions with high-voltage cathodes. This makes them directly suitable for NMC, LCO, and other high-voltage materials without interfering with battery performance test results.

What handling precautions are necessary for ATOMFAIR Au-coated coin cell cases to maintain their low contact resistance?

These cases are shipped oil-free, burr-free, and impurity-free after 100% dimensional inspection, coating thickness verification, and sealing performance testing, allowing direct use inside gloveboxes without additional cleaning. To preserve the ≤1 mΩ contact resistance, avoid touching the gold-coated surfaces with bare hands and store in a dry, inert atmosphere to prevent oxidation or contamination.

These Au-coated coin cell cases deliver ≤1 mΩ contact resistance and verified electrochemical stability within -0.5 V to 5.0 V, making them well-suited for EIS and micro-current measurements. However, the included spacers and springs are 304 stainless steel (not gold-coated), and the sets are pre-configured for CR2032 format only, requiring custom orders for other sizes or materials.

Positive

  • High-Precision Dimensional Tolerance: All component dimensions are controlled within ±0.02 mm, ensuring perfect inter-batch matching and eliminating assembly gaps or uneven pressure caused by dimensional errors.
  • Validated Electrochemical Window: Materials have passed constant potential polarization and cyclic voltammetry tests, confirming no side reactions within -0.5 V to 5.0 V, guaranteeing no interference with battery performance results.

Trade-offs

  • Uncoated Steel Accessories: The included spacers and springs are made of 304 stainless steel rather than gold-coated material, which may limit corrosion resistance in highly aggressive or wide-window electrolyte systems.
  • Fixed CR2032 Format Only: The case sets are supplied exclusively in CR2032 configuration; obtaining other sizes, models, or materials requires a separate customization request, adding lead time and minimum order considerations.
