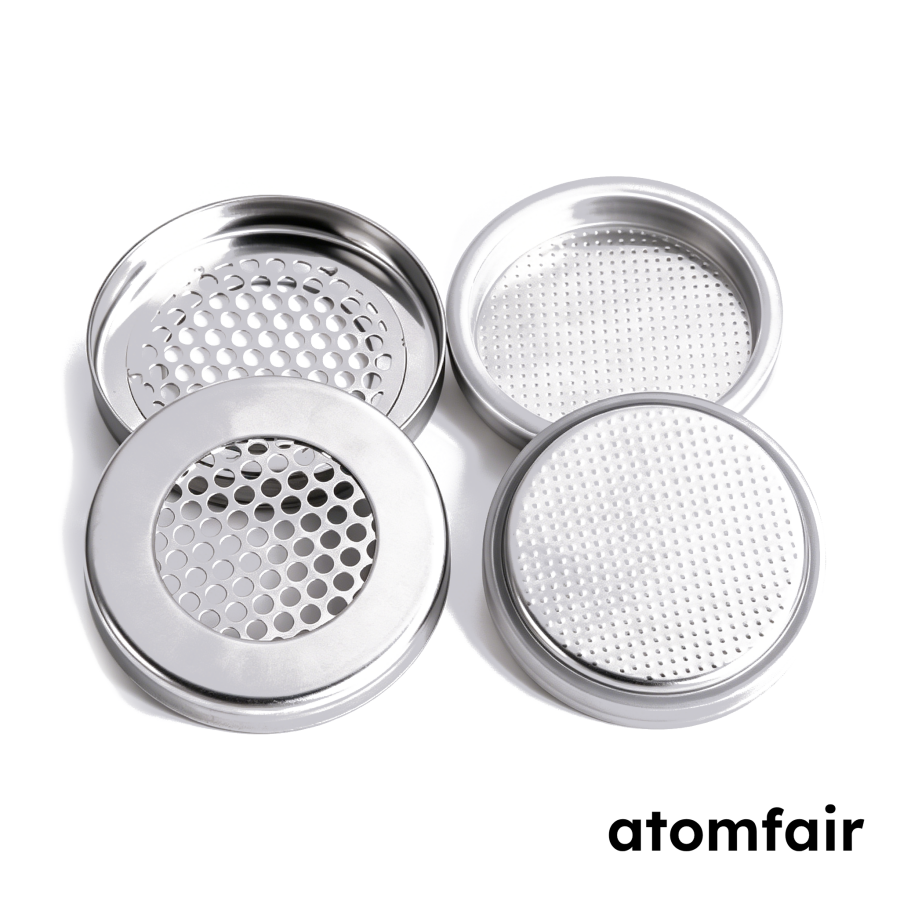

ATOMFAIR® perforated coin cell case sets showing metallic caps with large round holes and fine mesh grids on a white background.

Perforated Coin Cell Case Sets 316L CR2032 ATOMFAIR®

$154.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

CR2032 perforated coin cell case sets (316L) with precision mesh and 0.2-0.5 μm pores. Includes spacers and springs. In stock.

SKU: AFMSSODQ247
Category:
Tags: , ,
Brands:

Description

ATOMFAIR® Perforated Coin Cell Case Sets

RESEARCH GRADE MATERIAL

Product Overview
Perforated coin cell cases for gas permeation and flow battery research. Features precision-machined mesh positive caps with uniform pore distribution on 316L/304 stainless steel substrates, 15.8 × 0.5 mm spacers, and 15.4 × 1.1 mm springs. Engineered to facilitate controlled gas diffusion and electrolyte flow while maintaining structural integrity and reliable sealing, delivering standardized hardware support for accurate and reproducible experimental data. If you require other sizes and materials, please email inquiry@atomfair.com for customization.

ATOMFAIR® Perforated Coin Cell Case Sets
ITEM DESCRIPTION
Product Name ATOMFAIR® Perforated Coin Cell Case Sets
Material 316L Stainless Steel
Model CR2032
Packaging Specification 100 Sets/Pack
Positive Case Structure Precision-Machined Mesh/Perforated Positive Cap (Pore Size 0.2–0.5 μm, IP67 Waterproof Rating, Uniform Gas Distribution Design)
Included Components Perforated Mesh Positive Cases, 316L Stainless Steel Negative Cases, 15.8 × 0.5 mm Spacers, 15.4 × 1.1 mm Springs
Intended Use Specialized cell cases for gas permeation, lithium-air, lithium-oxygen, and flow battery research in academic R&D environments
Customization Options For other sizes and materials, please email inquiry@atomfair.com to request customization.

Research-Grade Core Quality Advantages
  • Uniform High-Precision Tolerance Control: All component dimensions strictly controlled within ±0.02 mm, ensuring perfect matching across different batches and components, completely eliminating assembly gaps and uneven pressure issues caused by dimensional errors.
  • Full Material Gradient Coverage: Provides a complete material selection from basic to high-end, allowing flexible selection based on corrosivity, voltage range, and testing precision requirements of your experimental system, avoiding experimental failure due to mismatched consumables.
  • Rigorous Electrochemical Compatibility Verification: All materials have undergone constant potential polarization, cyclic voltammetry, and other electrochemical tests to ensure no side reactions within a -0.5 V to 5.0 V voltage range, guaranteeing no interference with battery performance test results.
  • Standardized Batch Production: Fully automated production and quality control ensures highly consistent product performance within and across batches, effectively reducing experimental systematic errors.

APPLICATION SCOPE: Standardized testing and prototype preparation for lithium-air batteries, lithium-oxygen batteries, gas-involved reaction battery systems, flow batteries, and other cutting-edge research systems requiring controlled gas diffusion or electrolyte permeation.
PACKAGING: 100 sets/pack. 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment, ensuring oil-free, burr-free, and impurity-free conditions. Can be used directly for battery assembly inside gloveboxes.
IMPORTANT NOTICE: This series is a one-stop assembly solution for coin cells dedicated to electrochemical research. Default accompanying accessories are made of 304 stainless steel. If other materials or special dimensions are required, please email inquiry@atomfair.com for customization.



This series is a one-stop assembly solution for coin cells dedicated to electrochemical research, comprehensively covering the three mainstream models CR2032, CR2025, and CR2016. It provides a full material and specification selection of three core components—positive/negative electrode cases, conductive spacers, and elastic springs. Independent purchase of single components is supported, and pre-matched complete assembly kits are also available. Fully compatible with all cutting-edge research systems, including conventional lithium-ion batteries, sodium-ion batteries, all-solid-state batteries, lithium-air batteries, and high-voltage batteries, it provides standardized hardware support for the accuracy and reproducibility of experimental data.
Important Note: Default accompanying accessories are made of 304 stainless steel. For accessories made of other materials, please email inquiry@atomfair.com for customization.

I. Positive/Negative Electrode Cases
Type Classification Material / Special Structure Compatible Models Core Performance Parameters Optimal Application Scenarios
Basic Universal 304 Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥5 MPa
Operating Temp. -40°C to 120°C		 Conventional Li-ion/Na-ion batteries, aqueous battery basic testing, batch prototype preparation
Basic Universal 316L Stainless Steel CR2032/CR2025/CR2016 Dimensional Tolerance ±0.02 mm
Sealing Pressure ≥6 MPa
Operating Temp. -40°C to 150°C		 Sulfide solid-state batteries, high-voltage batteries (>4.5 V), long-term cycling tests, highly corrosive systems
High-Performance Coated Aluminum Coated CR2032/CR2025/CR2016 Coating Thickness 5–10 μm
Adhesion ≥5B Grade
Volume Resistivity ≤3×10⁻⁸ Ω·m		 Lightweight batteries, low contact resistance precision testing, systems sensitive to metal ion contamination
High-Performance Coated Titanium Coated CR2032/CR2025/CR2016 Coating Thickness 3–8 μm
Excellent Biocompatibility
Resistant to Strong Acid/Base Corrosion		 Bio-batteries, aqueous zinc batteries, strongly acidic/alkaline electrolyte systems
High-Performance Coated Nickel Coated CR2032/CR2025/CR2016 Coating Thickness 5–12 μm
Excellent Weldability
Atmospheric Corrosion Resistant		 Battery structures requiring tab welding, pilot-scale batch production, routine electrochemical testing
High-Performance Coated Gold Coated CR2032/CR2025/CR2016 Coating Thickness 0.5–2 μm
Contact Resistance ≤1 mΩ
Superior Chemical Stability		 Ultra-precision electrochemical testing, EIS testing, micro-current testing, in-situ characterization
Specialized Research Li-Air Mesh Type CR2032/CR2025/CR2016 Pore Size 0.2–0.5 μm
Waterproof Rating IP67
Uniform Gas Distribution Design		 Lithium-air batteries, lithium-oxygen batteries, gas-involved reaction battery systems
Specialized Research Kapton Window Type CR2032/CR2025/CR2016 Window Thickness 25–50 μm
Optical Transmittance ≥85%
Electrolyte Corrosion Resistant		 In-situ optical characterization, in-situ Raman/IR spectroscopy, in-situ microscopy observation

II. Conductive Spacers
Default Size: Φ15.8 × 0.5 mm, compatible with the internal dimensions of all CR20 series cell cases. Other thicknesses and special sizes are customizable; please email inquiry@atomfair.com for customization.
Material Available Size (Diameter × Thickness) Core Performance Parameters Optimal Application Scenarios
99.5% Industrial Pure Aluminum Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Volume Resistivity 2.7×10⁻⁸ Ω·m
No Electrochemical Side Reactions		 Precision experiments requiring high contact resistance, conventional Li-ion/Na-ion batteries
304 Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
High Mechanical Strength
General Corrosion Resistant		 Most routine testing scenarios, aqueous batteries, low-to-medium voltage systems
316L Stainless Steel Φ15.8 × 0.5 mm (Default) Dimensional Tolerance ±0.02 mm
Sulfide/Chloride Ion Corrosion Resistant
High Temperature Resistant		 Sulfide solid-state batteries, high-voltage batteries, highly corrosive systems, long-term cycling tests

III. Elastic Springs
Default Size: φ15.4 × 0.3 mm, compatible with the internal dimensions of all CR20 series cell cases. Other heights and special sizes are customizable; please email inquiry@atomfair.com for customization.
Spring Type Available Materials Available Size (Diameter × Free Height) Core Performance Parameters Optimal Application Scenarios
Wave Spring (Belleville) Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 5 N–30 N
Large Contact Area
Small Footprint
Fatigue Life ≥10,000 cycles		 Most routine testing, thin electrodes, low-loading batteries; universal preferred choice
Conical Spring Al Coated / 304 SS / 316L SS / Au Coated SS φ15.4 × 1.1 mm (Default) Spring Force Range 10 N–50 N
Good Self-Centering
Strong Anti-Buckling
Fatigue Life ≥10,000 cycles		 Thick electrodes, high-loading batteries, vibration environment testing, systems requiring precise pressure control

IV. Complete Assembly Kit Specifications
Kit Type Included Components Corresponding Battery Model Configurable Options
Standard Assembly Kit Positive Case + Negative Case + Spacer + Spring CR2032/CR2025/CR2016 All materials freely combinable
Spacer thickness customizable
Spring height customizable
Li-Air Dedicated Kit Mesh Positive Case + Negative Case + Waterproof Breathable Membrane + Spacer + Spring CR2032/CR2025/CR2016 304/316L SS material optional
Spacer thickness customizable
Spring height customizable
In-Situ Characterization Kit Kapton Window Cell Case + Gold Coated Spacer + Gold Coated Spring CR2032/CR2025/CR2016 Window thickness optional
Spacer thickness customizable
Spring height customizable

International Quality Standards
  • Stainless steel materials comply with ASTM A240 international standard.
  • Pure aluminum materials comply with ASTM B209 international standard.
  • All coating thicknesses are uniform, with adhesion meeting ASTM B571 standard.
  • 100% dimensional inspection, sealing performance testing, and appearance inspection before shipment.
  • Oil-free, burr-free, and impurity-free; ready for direct use in glovebox battery assembly.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This document outlines critical handling and compatibility constraints for the perforated coin cell case set. Adherence to these guidelines ensures reliable gas diffusion and sealing performance in battery research applications.

  • Pore Uniformity: The precision-machined mesh positive cap must be protected from physical deformation and particulate contamination to maintain the specified 0.2–0.5 μm pore distribution for uniform gas flow.
  • Material Compatibility: Electrolyte corrosion resistance of the 316L stainless steel substrate should be verified against the specific electrolyte chemistry used in the experiment to prevent pitting or sealing degradation.
  • Sealing Integrity: The IP67-rated sealing requires proper compression and alignment of the case components during crimping to ensure a watertight and gas-tight seal under operating conditions.

How does the 0.2–0.5 μm pore size in the perforated positive cap balance gas diffusion rate with electrolyte leakage risk for lithium-air battery testing?

The precision-machined mesh provides uniform pore distribution in the 0.2–0.5 μm range, which enables controlled gas permeation while maintaining an IP67 waterproof rating to prevent electrolyte leakage. This design, executed on 316L stainless steel substrates, ensures structural integrity under typical coin cell crimping pressures while delivering reproducible gas diffusion conditions for Li-air and Li-O₂ experiments.

Are these perforated coin cell cases compatible with organic carbonate electrolytes and high-voltage cathodes up to 5.0 V?

Yes, the cases are electrochemically validated for no side reactions within a -0.5 V to 5.0 V range via constant potential polarization and cyclic voltammetry tests, making them suitable for organic carbonate electrolytes common in lithium-air and gas-involved battery systems. The 316L stainless steel construction also offers corrosion resistance against mildly acidic or alkaline electrolyte environments typical in flow battery research.

Do the perforated coin cell cases require pre-cleaning or surface treatment before assembly inside an argon-filled glovebox?

No pre-cleaning is required because each set undergoes 100% dimensional inspection, sealing performance testing, and appearance inspection to ensure oil-free, burr-free, and impurity-free surfaces before shipment, and is packaged for direct glovebox use. The included 15.8 × 0.5 mm spacers and 15.4 × 1.1 mm springs are also precision-controlled within ±0.02 mm tolerances, allowing immediate assembly without additional processing.

Engineered for gas permeation and flow battery research, these perforated coin cell cases feature precision-machined 316L stainless steel mesh positive caps with 0.2–0.5 μm pores and tight ±0.02 mm tolerances, ensuring reproducible controlled gas diffusion. However, the default CR2032 size and fixed pore range may require customization for non-standard experimental setups.

Positive

  • Uniform pore distribution for reproducible gas diffusion: Precision-machined mesh positive caps provide consistent pore geometry and distribution, enabling controlled gas permeation and supporting accurate, reproducible experimental data across runs.
  • Electrochemically inert over wide voltage range: All materials have been verified via constant potential polarization and cyclic voltammetry to exhibit no side reactions within -0.5 V to 5.0 V, ensuring no interference with battery performance measurements.

Trade-offs

  • Default size limited to CR2032 format: The product is supplied only in CR2032 form factor; other cell sizes or custom dimensions require a separate customization request, potentially increasing lead time and minimum order quantities.
  • Fixed pore size range restricts gas diffusion flexibility: The positive cap pore size is fixed at 0.2–0.5 μm, which may not suit all gas diffusion or electrolyte permeation requirements; alternative porosities are only available through custom orders.
