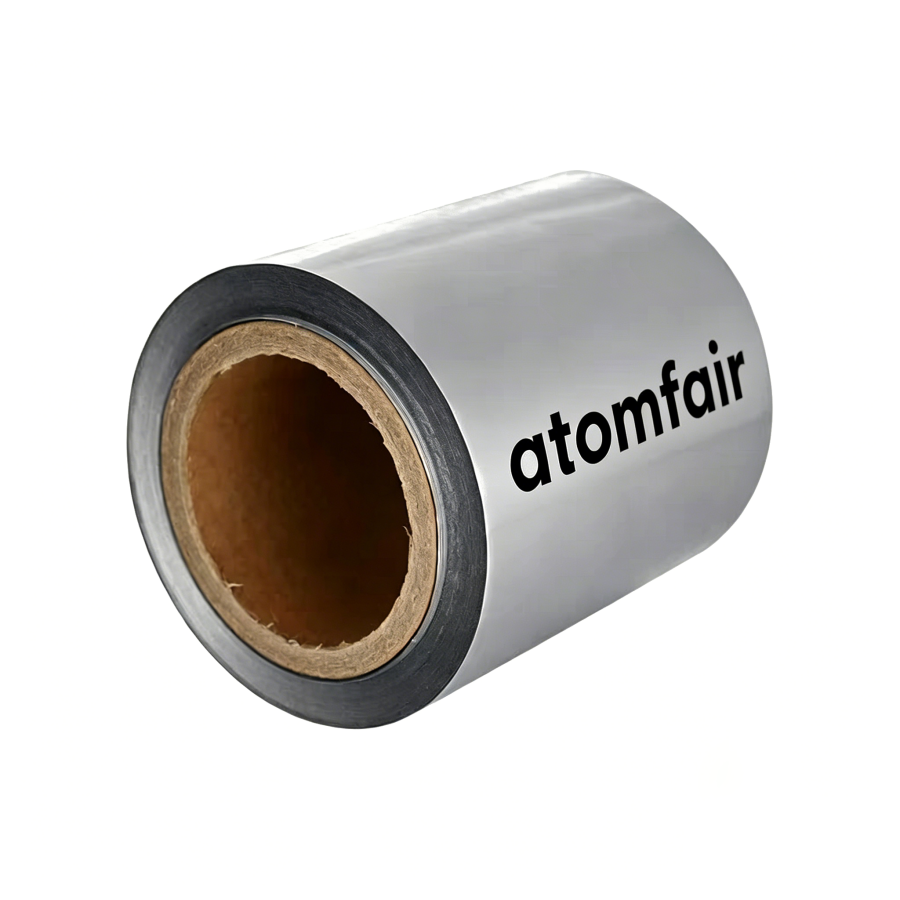

ATOMFAIR® DM ALUMINUM-LAMINATED FILM 200 MM × 10 M

RESEARCH GRADE MATERIAL

Product Overview

The ATOMFAIR® DM-L086N technical matrix introduces a cost-effective, general-purpose aluminum-laminated film built to satisfy demanding academic and industrial battery engineering paradigms. Engineered precisely as an advanced pouch cell packaging material, this 86 μm barrier roll delivers uniform structural integration for professors, Ph.D. students, and corporate R&D engineering cells. Tailored for continuous production workflows, the DM-L086N 200 mm × 10 m layer geometry establishes a premium balance between macroscopic deep-drawing limits and high electrolyte stability. It prevents phase contamination, minimizes trace fluid leakage, and provides uncompromised electrochemical cycle validation data during standard prototype verification testing.

Technical Specifications

TEST ITEM	SPECIFICATION / UNIT
Thickness	86 ± 5% μm
Peel Strength (ONY/AL)	≥3 N/15mm
Peel Strength (CPP/AL)	≥6 N/15mm
Heat-Seal Strength	≥40 N/15mm
Post-Electrolyte Peel Strength (CPP/AL)	≥5 N/15mm
Post-Electrolyte Heat-Seal Strength	≥30 N/15mm
Formability	≥5 mm
Puncture Strength	≥18 N
Tensile Strength	≥80 N/15mm
Halogen Content	Free ppm
RoHS Compliance	Free ppm
Alternative Options	Custom structural choices accessible: thickness variants (86 μm / 113 μm), customizable widths (110 mm / 200 mm), and dynamic continuous cut lengths (1 m / 5 m / 10 m / 20 m).

Key Features & Advantages

Technical Advantage: Advanced mechanical elongation layout exhibits ≥5 mm structural draw limits, optimizing edge folding parameters with zero risk of stress micro-cracking.
Technical Advantage: Modified internal CPP material offers premium chemical barrier protection, limiting degradation or phase delamination during chemical contact.
Technical Advantage: Reinforced physical layer design maintains ≥18 N puncture protection and high heat-seal strength, minimizing baseline leakage risk.
Technical Advantage: Strict adherence to halogen-free processing conditions and global RoHS constraints guarantees clean experimental validation parameters.
Technical Advantage: Optimized cost-to-performance matrix fulfills mainstream packaging requirements while maximizing budget efficiency for bench-scale laboratories.

APPLICATION SCOPE: Lithium polymer systems, wearable device packaging configurations, laboratory academic testing runs, pilot-scale and bench-scale device fabrication, and cost-sensitive power energy storage validation projects.

PACKAGING: Packaged as an 86 μm × 200 mm × 10 m continuous roll under protective isolation layers to prevent cleanroom contamination. Custom specifications can be provided on request.

IMPORTANT NOTICE: Materials intended strictly for scientific research and prototyping configurations in professional laboratory environments. Store components within a cool, dry environment away from ambient water moisture, extreme heat gradients, and volatile organic solvents. Use immediately upon opening to prevent atmospheric oxidation.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

Constraints

This aluminum-laminated film requires precise heat-seal temperature, pressure, and dwell time to meet specified seal strength and post-electrolyte peel strength. The material's formability is limited to a maximum depth of 5 mm to avoid barrier layer defects during pouch cell forming.

Heat-Seal Parameters: Maintain heat-seal temperature and pressure within the recommended window to achieve ≥40 N/15mm seal strength and ≥5 N/15mm post-electrolyte peel strength.
Electrolyte Compatibility: The inner CPP layer must resist chemical attack from common lithium-ion battery electrolytes to prevent delamination during extended cycling.
Formability Limit: Do not exceed the maximum forming depth of 5 mm to avoid pinhole formation or rupture of the aluminum barrier layer.
Puncture Resistance: Ensure all handling and forming tools are free of sharp edges to preserve the film's puncture resistance ≥18 N.
Storage Conditions: Store rolls in a clean, dry, and temperature-controlled environment to protect the adhesive layers and maintain bond integrity.

FAQ

How does the cost-effectiveness of the DM-L086N 86 μm aluminum-laminated film affect its performance in terms of barrier and mechanical properties compared to higher-grade alternatives?

The DM-L086N film delivers a balanced set of barrier, formability (≥5 mm), and electrolyte stability at a competitive price. It achieves heat-seal strength ≥40 N/15mm, puncture strength ≥18 N, and tensile strength ≥80 N/15mm, meeting mainstream pouch cell requirements while remaining ideal for R&D and small-batch production. Users prioritizing ultra-high barrier or deeper draw may need thicker films.

Is the DM-L086N aluminum-laminated film compatible with lithium-iron-phosphate (LFP) or high-nickel NMC cathode chemistries?

The film's inner CPP layer provides superior electrolyte corrosion resistance, with post-electrolyte peel strength ≥5 N/15mm and heat-seal strength ≥30 N/15mm. It is suitable for conventional pouch cell electrolytes used in LFP and standard NMC systems, but validation is recommended for high-voltage or aggressive solvent formulations.

What storage and handling conditions are critical to preserving the peel strength and formability of the DM-L086N film during pouch cell assembly?

To maintain the film's peel strength (CPP/AL ≥6 N/15mm) and formability (≥5 mm), store the roll in a cool, dry place away from UV and mechanical stress. During assembly, avoid sharp bends or punctures that could reduce the barrier integrity indicated by the puncture strength ≥18 N.

Assessment

This 86μm aluminum-laminated film delivers robust formability (≥5 mm) and electrolyte stability for pouch cell prototyping, though its fixed 200mm width and ±5% thickness tolerance impose process calibration and dimensional constraints for non-standard cell designs.

Positive

Excellent Formability for Deep Drawing: Formability ≥5 mm enables conventional pouch cell deep-drawing without cracking or delamination, accommodating edge folding and stamping in pilot lines.
Superior Electrolyte Corrosion Resistance: The inner CPP layer maintains heat-seal and peel strength after electrolyte immersion, with post-immersion peel strength ≥5 N/15mm and no swelling or delamination.

Trade-offs

Standard Dimensions Limit Flexibility: Supplied as 200mm × 10m rolls only; custom dimensions require separate inquiry, restricting adaptability for non-standard pouch cell formats.
Thickness Tolerance Requires Calibration: Thickness tolerance of ±5% (86 ± 4.3 μm) may necessitate process adjustments for consistent heat sealing and thermal management in precision assembly.

Quality Standards & Performance Verification

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
