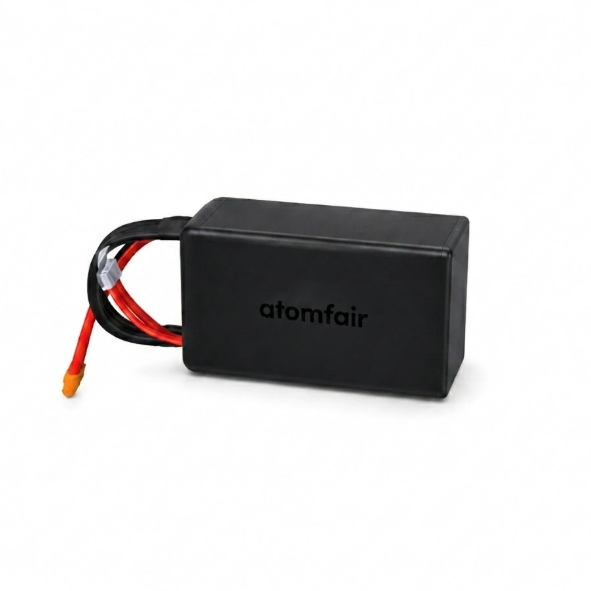

3.95V 250Wh/kg Semi-Solid Battery 8Ah Series | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The semi-solid electrolyte pouch cells require storage in a dry, non-conductive environment to prevent short circuits and electrolyte degradation. Charge and discharge must be performed within the manufacturer's rated specifications to avoid thermal runaway.
- Storage Environment: Store the battery at ambient room temperature conditions in a low-humidity area to maintain electrochemical stability.
- Electrical Safety: Ensure all connections are properly insulated and that the battery is not exposed to conductive contaminants.
- Mechanical Integrity: Avoid puncturing, crushing, or deforming the pouch cell to prevent internal short circuits.
The following steps describe the safe initialization and handling of the 8Ah semi-solid battery pack. Proper voltage verification and connection sequence prevent electrical hazards.
Required Equipment: Calibrated multimeter, Compatible lithium battery charger
- Inspect Battery
Inspect the battery pouch for any visible cracks, swelling, or leakage before handling. - Measure Voltage
Measure the open-circuit voltage using a calibrated multimeter to confirm the pack is within the safe voltage range. - Connect Charger
Connect the battery to the charger, ensuring the polarity matches the designated terminals. - Monitor Temperature
Monitor the battery temperature throughout the charging process and disconnect if any abnormal heat is detected.
How does the 300 Wh/kg energy density of the ATOMFAIR semi-solid battery compare to conventional lithium-ion pouch cells in terms of cycle life trade-off?
The 300 Wh/kg energy density is achieved through a semi-solid electrolyte design that reduces inactive material weight, but this typically imposes a cycle life trade-off compared to lower-energy-density liquid-electrolyte cells. The product supports 1C charge and 7C continuous discharge, indicating the electrolyte formulation is optimized for rate capability over extended cycling. For specific cycle life data under your duty cycle, contact ATOMFAIR directly.
Can the 3.95V 8Ah semi-solid battery be integrated into an existing BMS designed for standard LiPo or Li-ion 4.2V cells?
No, direct integration with a BMS calibrated for 4.2V LiPo or Li-ion cells is not recommended because the nominal voltage is 3.95V, which shifts the charge and discharge voltage windows. The semi-solid chemistry requires a BMS configured for its specific voltage limits and charge profile (1C max). Using an incompatible BMS risks undercharging or over-discharge protection mismatches.
What are the storage and handling requirements for the semi-solid electrolyte pouch cells to prevent performance degradation?
Store the cells in a dry, temperature-controlled environment between 10°C and 30°C to maintain electrolyte stability and prevent capacity fade. The moisture-barrier vacuum-sealed aluminum foil packaging must remain intact until use, as exposure to humidity can compromise the semi-solid electrolyte's ionic conductivity. Avoid mechanical puncture or compression of the pouch to prevent internal short circuits.
The ATOMFAIR 3.95V 300Wh/kg Semi-Solid Battery 8Ah Series offers a compelling combination of ultra-high energy density and high discharge rates in a pouch format, ideal for weight-sensitive high-power applications. However, the 1C charge limit and fixed voltage configurations impose operational constraints that must be considered during system design.
Positive
- Ultra-High Energy Density: 300 Wh/kg enables extreme lightweight design, critical for UAVs, robotics, and portable power stations where mass reduction is paramount.
- High Discharge Rate Capability: 7C continuous and 15C peak discharge rates support demanding dynamic loads in drones, electric equipment, and high-performance robotics.
Trade-offs
- Limited Charge Rate: Max charge rate of 1C extends recharge time, potentially limiting throughput in applications requiring rapid turnaround.
- Fixed Voltage Configurations: Only 6S, 8S, 12S, and 18S options are available, restricting voltage matching for systems requiring non-standard series counts.
