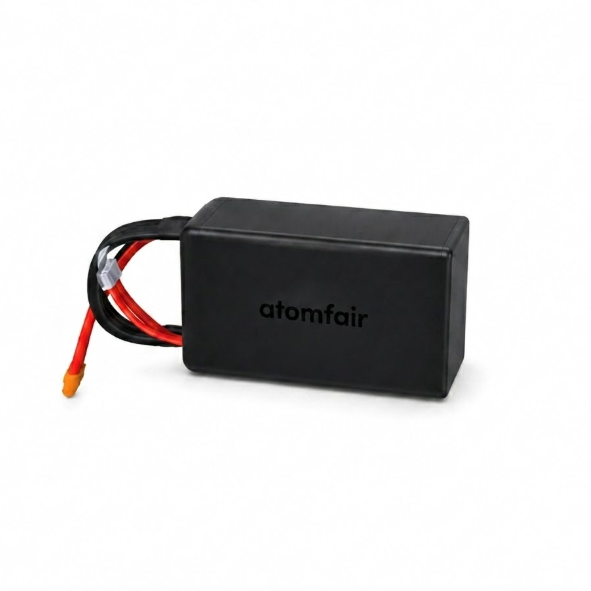

3.95V 260Wh/kg Semi-Solid Battery 43Ah Series | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Store the battery in a cool, dry environment away from direct sunlight and heat sources to prevent accelerated aging. Avoid physical puncture, crushing, or exposure to conductive materials that may cause short circuits and thermal runaway.
- Storage Environment: Maintain ambient storage within a clean, non-conductive enclosure to minimize self-discharge and material degradation.
- Electrical Safety: Keep terminals insulated and never allow contact with metal objects or liquids to prevent short circuits.
Follow these steps to safely prepare the battery for first use and connect it to a compatible system. Always use appropriate personal protective equipment and work in a ventilated area.
Required Equipment: Balanced lithium-ion battery charger with overcharge protection
- Inspection
Inspect the battery pouch and terminals for any visible damage, swelling, or leakage before handling. - Charger Connection
Connect the battery to the charger following polarity markings and set the charge rate to 2C maximum as specified. - Monitor Charging
Monitor the charging process and disconnect if the cell surface becomes abnormally hot or emits odor. - Integration
Install the charged battery into the device using secure, non-conductive mounting to prevent vibration and short circuits.
How does the 280 Wh/kg energy density of the 43Ah semi-solid battery translate to runtime trade-offs versus cycle life in high-rate UAV applications?
The 280 Wh/kg energy density enables extended runtime in lightweight UAV designs, but the 5C continuous and 10C peak discharge rates impose a trade-off: sustained high-rate discharge will reduce cycle life compared to lower-rate operation. The semi-solid electrolyte improves thermal stability and safety under these loads, but the product description does not specify cycle life at different C-rates, so engineers must validate longevity through their own testing for specific duty cycles.
Can the 3.95V 43Ah semi-solid pouch cells be integrated into existing battery management systems designed for conventional lithium-ion packs without voltage or communication protocol modifications?
Integration requires careful BMS configuration because the nominal voltage of 3.95V per cell differs from standard lithium-ion chemistries (typically 3.6-3.7V), and the 2C charge/5C continuous discharge rates demand a BMS capable of supporting those current limits. The product description does not specify cell chemistry or communication protocol, so engineers must verify that their BMS can accommodate the 3.95V nominal voltage and the high-rate charge/discharge profiles without modification.
What are the specific handling and storage requirements for the semi-solid electrolyte pouch cells to prevent leakage or performance degradation during transport and long-term storage?
The semi-solid electrolyte design reduces leakage risk compared to liquid electrolytes, but pouch cells require careful handling to avoid physical damage that could compromise the hermetic seal. The product description does not specify storage temperature, humidity, or state-of-charge recommendations, so users should follow standard lithium-ion pouch cell best practices: store at 30-50% SOC in a dry, temperature-controlled environment below 25°C, and avoid mechanical stress or puncture during transport.
The ATOMFAIR 3.95V 280Wh/kg Semi-Solid Battery 43Ah series offers a compelling balance of energy density and power capability for demanding applications like UAVs and robotics, but integrators must account for the ±5% dimensional tolerance and the restricted series voltage options.
Positive
- High Energy Density (280 Wh/kg): Delivers 280 Wh/kg, enabling extended runtime in lightweight designs such as UAVs and portable electronics, directly translating to longer mission endurance or reduced battery mass.
- High Rate Capability: Supports 2C fast charge, 5C continuous discharge, and 10C peak discharge, providing robust power delivery for high-demand applications including drones, robotics, and electric equipment.
Trade-offs
- Limited Series Configurations: Only available in 6S, 8S, 12S, and 18S configurations, restricting voltage customization for systems requiring intermediate or non-standard pack voltages.
- Dimensional and Weight Tolerances: Dimensions and weight are specified with ±5% tolerance, which must be accommodated in mechanical design and battery compartment sizing to ensure proper fit and balance.
