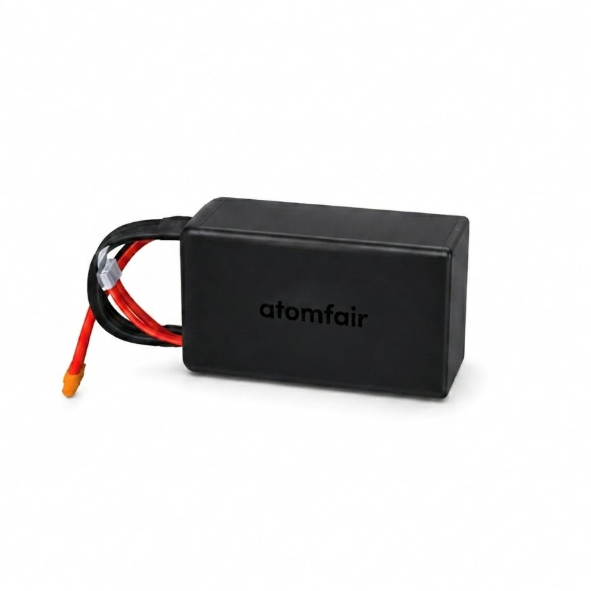

3.95V Semi-Solid Battery 280Wh/kg 23Ah Series | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This semi-solid lithium battery requires strict voltage and temperature control to prevent thermal runaway and capacity loss. Proper insulation and short-circuit prevention measures are mandatory during storage and transport.
- Voltage Maintenance: Maintain the battery within the specified voltage window to avoid over-discharge or overcharge conditions.
- Temperature Control: Store the battery in a cool, dry environment away from heat sources and direct sunlight.
- Containment and Isolation: Use non-conductive, fire-resistant packaging and isolate terminals to prevent accidental short circuits.
- Handling Precautions: Avoid mechanical deformation, puncture, or exposure to moisture during handling.
This procedure covers the safe preparation and first-use steps for the 23Ah semi-solid battery module. Follow each step to ensure correct operation and minimize risk of electrical or thermal incidents.
Required Equipment: Compatible battery charger with constant current/constant voltage profile, Digital multimeter for voltage verification, Personal protective equipment (insulated gloves, safety glasses)
- Inspect Battery Condition
Inspect the battery pouch for any visible damage, swelling, or leakage before initial use. - Verify Voltage
Measure the open-circuit voltage with a multimeter and confirm it is within the acceptable storage range. - Connect to Charger
Connect the battery to a charger set to the nominal voltage and a charge current not exceeding 1C (23 A). - Monitor Charging
Monitor the battery temperature during charging and stop immediately if it exceeds the specified limit. - Perform First Discharge
Allow the battery to discharge at a rate no more than 5C continuous while observing voltage and temperature. - Store Safely After Use
Store the battery at a partial state of charge (approximately 30–50%) in a fireproof container if not used immediately.
How does the 300 Wh/kg energy density of the semi-solid battery trade off against cycle life or power fade under 5C continuous discharge?
The 300 Wh/kg energy density is achieved using a semi-solid electrolyte, which inherently reduces liquid electrolyte volume and can improve thermal stability, but the product description does not specify cycle life or capacity retention under 5C continuous discharge. For high-rate applications, the 5C continuous and 10C peak discharge ratings indicate the cell is designed for power delivery, but quantitative fade data is not provided. Users should request cycle life test reports from ATOMFAIR for their specific duty cycle.
Can the 3.95V 23Ah semi-solid pouch cells be integrated directly into existing drone battery management systems without modifying charge profiles?
The cells have a nominal voltage of 3.95V and a maximum charge rate of 1C, which is compatible with many standard Li-ion BMS units, but the semi-solid electrolyte may require a tailored charge cutoff voltage and temperature monitoring. The product description does not specify charge termination voltage or impedance characteristics, so integration testing with the target BMS is recommended. For multi-cell configurations like 6S to 18S, ensure the BMS supports the series count and can balance cells with the semi-solid chemistry's internal resistance profile.
What are the storage and handling requirements for semi-solid electrolyte pouch cells to prevent electrolyte leakage or performance degradation?
Semi-solid electrolyte cells offer reduced leakage risk compared to liquid electrolytes, but they still require storage in a dry, temperature-controlled environment below 25°C to maintain the 300 Wh/kg energy density and prevent capacity fade. The pouch cell format necessitates careful handling to avoid puncture or compression that could compromise the semi-solid matrix. The product description does not specify storage humidity limits or shelf life, so consult ATOMFAIR for detailed handling guidelines.
The 3.95V 300Wh/kg Semi-Solid Battery 23Ah Series delivers ultra-high energy density and strong discharge capability (5C continuous, 10C peak) for weight-constrained UAV and robotics applications, but the 1C maximum charge rate limits rapid charging and the fixed 23Ah module capacity necessitates parallel stacking for higher total capacity.
Positive
- Ultra-High Energy Density: 300 Wh/kg enables extreme lightweight design ideal for drones, robotics, and portable power stations where weight reduction is critical.
- High Discharge Rate Capability: Supports 5C continuous and 10C peak discharge, delivering stable power output for high-demand electric equipment.
Trade-offs
- Limited Maximum Charge Rate: Maximum charge rate of 1C extends recharge times, which may be a constraint for applications requiring fast turnaround between cycles.
- Fixed Module Capacity: Each module offers a fixed 23 Ah nominal capacity; higher total capacity must be achieved through parallel connection of multiple modules, adding system integration complexity.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
