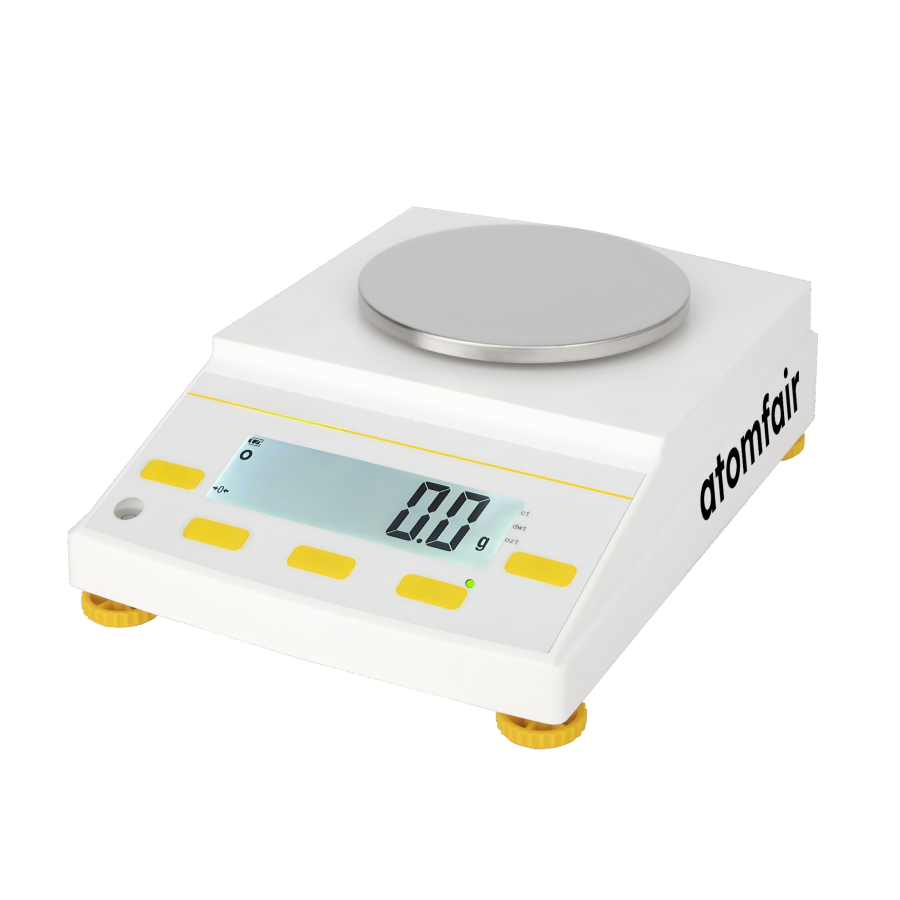

ATOMFAIR® EB1000G-0.1G-01 HIGH-CAPACITY LABORATORY PRECISION BALANCEINDUSTRIAL GRADE MEASUREMENT SYSTEM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
This procedure covers the basic setup and operation of the ATOMFAIR EB1000G-0.1G-01 precision balance. The balance features a built-in lithium battery, RS232 interface, and multi-unit mapping.
Required Equipment: ATOMFAIR EB1000G-0.1G-01 Precision Balance
- Connect Power
Connect the balance to a power source using the AC adapter or the built-in rechargeable lithium battery. - Zero the Balance
Perform one-touch structural zeroing to isolate the container weight. - Select Measurement Unit
Select the desired measurement unit using the multi-unit software mapping feature. - Connect to PC
Connect the balance to a PC via the integrated RS232 interface for data export.
How does the 9-level adjustable stabilization algorithm affect measurement speed versus accuracy on the EB1000G-0.1G-01 balance?
The 9-level stabilization algorithm lets users select speed configurations to filter ambient industrial noise. Higher levels improve stability and reproducibility by suppressing base signal fluctuations but slow the measurement response, requiring a trade-off between rapid processing and ultimate data reliability.
Can the EB1000G-0.1G-01 be integrated into an existing laboratory data acquisition system for continuous logging?
Yes, the balance includes a standard RS232 interface for instant data export to desktop PC matrices. Additionally, the dual AC/DC power loop with a high-energy rechargeable lithium battery decouples operation from building power, enabling uninterrupted logging during extended experiments or in facilities with unstable mains.
What mechanical protections does the EB1000G-0.1G-01 offer to prevent damage from overload or environmental vibrations in a busy lab?
The balance incorporates 4-stage shockproof dampening to buffer building harmonic resonance and transducer overload shielding to prevent internal damage from unexpected mass impact surges. Adjustable zero tracking sub-routines also control micro-drift, reducing the risk of calibration errors from environmental disturbances.
The Atomfair EB1000G-0.1G-01 precision balance delivers a 1000g capacity with 0.1g readability, featuring a 9-level adjustable stabilization algorithm and rechargeable lithium battery for robust performance in heavy-duty lab workflows. However, its 0.1g readability and ±0.2g linearity preclude sub-100 mg accuracy, and the fixed Φ130mm pan constrains container size compatibility.
Positive
- High-Capacity 1000g with 0.1g Precision: Weighs samples up to 1000g at 0.1g readability, enabling bulk material handling and complex sample processing without sacrificing moderate accuracy.
- 9-Level Ambient Noise Suppression: The adjustable stabilization algorithm filters building vibrations and air currents, ensuring repeatable measurements in industrial or high-traffic laboratory environments.
Trade-offs
- Low Precision and Linearity: 0.1g readability and ±0.2g linearity restrict the balance to applications tolerating 0.1g resolution, unsuitable for microgram or milligram-scale analytical work.
- 130mm Pan Size Limitation: The Φ130mm pan diameter limits the dimensions of sample containers, potentially excluding large beakers, flasks, or irregularly shaped objects.
