ATOMFAIR HP series long-life solid-state cells with 20C ultra-high power discharge for FPV racing drones and high-maneuverability UAV applications.

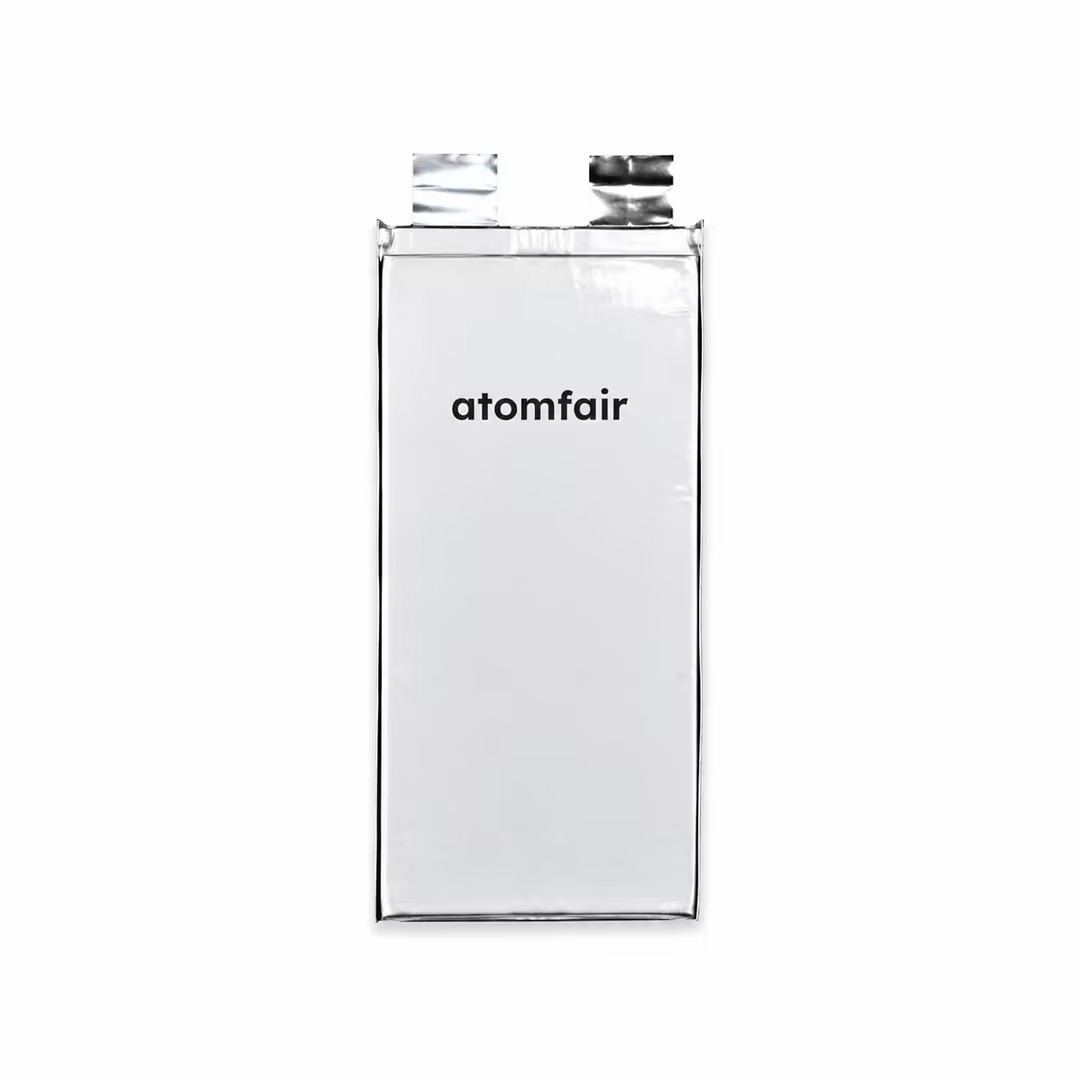

HP Series HPDG Solid-State Cell (12/20C Ultra-High Discharge Grade)

Price range: $200.00 through $250.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

ATOMFAIR® HP Series HPDG solid-state cell, 12Ah capacity with 20C continuous discharge and ≤0.6 mΩ IR. Commercial grade for UAV propulsion. Order now.

SKU: AFMSPQUW601
Category:
Tags:
Brands:

Description

HP Series HPDG Dynamic Solid-State Cells (Ultra-High Discharge Grade) | ATOMFAIR

COMMERCIAL GRADE · PRODUCTION

Product Overview
High-speed multi-rotor platforms and intensive tactical maneuvers demand extreme instant power capabilities, and this premium solid state drone battery price matrix delivers unmatched power delivery performance without risking localized structural degradation. Developed as a specialized, flagship high rate solid state cell architecture, the HPDG series introduces massive torque capabilities designed to eliminate performance bottlenecks during high-velocity climbs or high-speed racing curves. Engineered as a heavy-duty uav prototype propulsion module baseline, this product is split into two power-focused variants: a maximum-drain 12Ah cell executing an extreme 20C continuous discharge rate, and a high-capacity 22Ah cell supporting a continuous 12C load path. Low internal resistance and an advanced monolithic framework protect against severe thermal build-ups, supplying academic researchers and professional cinematography drone operators with clean, highly reproducible performance dataset traces. For bulk inquiries or official volume quotations, please contact us via email at inquiry@atomfair.com.

Technical Specifications
HARDWARE PARAMETER ITEM HPDG88124T1-12 HPDG87187T1-22
Nominal Electrical Capacity 12 Ah 22 Ah
Continuous Discharge Capacity Rate 20C Constant Amperage Output 12C Constant Amperage Output
Internal AC Resistance (IR) ≤ 0.6 mΩ (@ 30% SOC) ≤ 0.65 mΩ (@ 30% SOC)
Physical Pouch Size Dimensions 9.6 × 88 × 124 mm 11 × 87 × 187 mm
Manufacturing Tracking Metric Processed Under Strict ISO Standard Compliance and Factory Traceability Guidelines
Alternative Catalog Items Explore our alternative collection for balanced focus solid-state variants (HPEG & HPED 10C series), high-altitude lightweight power pouches (320Wh/kg series), custom airframe wiring links, or automated battery testers.

Key Features & Advantages
  • Extreme Kinetic Discharge Power: Drives continuous current loading profiles up to an aggressive 20C baseline, providing the substantial torque parameters needed for sharp vertical climbs.
  • Elite Thermal Stability Bounds: Maintains strict internal thermal control over energy conversion, protecting surrounding avionics equipment against dangerous heat spikes.
  • High-Rate Cycle Life Optimization: Engineered to withstand rigorous high-current operational schedules, retaining exceptional capacity stability across extensive testing loops.
  • Industry-Leading Low AC Resistance: Internal impedance tracks beneath ≤0.6 mΩ, minimizing energy conversion losses into passive waste heat.

APPLICATION SCOPE: High-performance drone racing platforms, commercial high-speed inspection UAV setups, heavy-lift industrial logistics aircraft, and professional cinematography multi-rotors demanding instantaneous current supply.
TECHNICAL CUSTOMIZATION & Tab Configurations: Customized physical dimensional sizing boundaries, specialized heavy-gauge current tabs, and alternative wire layouts can be specified for dedicated airframe integrations.
OPERATIONAL COMPLIANCE NOTICE: Solid-state high-drain pouch series elements demand stable external multi-point clamping forces to maintain uniform contact boundaries across active internal layers. House individual cell arrays securely within a rigid compression fixture plate structure. Follow certified charge/discharge parameters, and prevent terminal contact strings from dropping below specified low potential floors. Verified safety testing datasets (UN38.3/MSDS) can be provided for lot level monitoring.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
MANUFACTURER: ATOMFAIR LLC
BRAND: ATOMFAIR®

This document details critical operational constraints for the HPDG series solid-state cells. Adherence to these limits ensures safe and reliable performance.

  • Thermal Management: Operate the cell within its rated continuous discharge capacity to prevent uncontrolled thermal build-up.

What is the trade-off between the 12Ah 20C and 22Ah 12C HPDG variants for high-speed drone racing?

The 12Ah HPDG88124T1-12 delivers a higher continuous 20C discharge rate for extreme instant torque during sharp vertical climbs, while the 22Ah HPDG87187T1-22 provides greater total energy capacity at a lower 12C continuous discharge. The 12Ah variant has a lower internal AC resistance of ≤0.6 mΩ versus ≤0.65 mΩ for the 22Ah cell, minimizing waste heat under peak loads, but the 22Ah cell supports longer flight durations at moderate current draws.

Can the HPDG solid-state cells be integrated into existing UAV propulsion modules without modifying the battery management system?

Integration requires verifying that the UAV's battery management system can handle the extreme continuous discharge rates of up to 20C for the 12Ah variant or 12C for the 22Ah variant, as these exceed typical lithium-polymer specifications. The cells' low internal resistance (≤0.6 mΩ for the 12Ah model) demands wiring and connectors rated for high instantaneous current to avoid voltage drops, and the physical pouch dimensions (9.6 × 88 × 124 mm for the 12Ah cell) must fit the airframe's battery bay.

What handling and storage conditions are required to maintain the HPDG cell's low internal resistance and thermal stability?

The cells must be stored at a controlled state of charge, as internal AC resistance is specified at ≤0.6 mΩ for the 12Ah variant only at 30% SOC, and deviation from this SOC can increase impedance and degrade high-rate performance. The advanced monolithic framework protects against thermal build-ups, but ambient storage temperatures should remain within standard lithium-ion ranges to prevent accelerated aging, and physical puncture or compression of the pouch casing must be avoided to maintain structural integrity.

The HP Series HPDG cells deliver ultra-high discharge rates up to 20C with sub-milliohm internal resistance, providing extreme power for high-performance UAV applications, though the 22Ah variant trades peak discharge for capacity and larger dimensions require careful integration.

Positive

  • Extreme Continuous Discharge Rates: The 12Ah variant delivers up to 20C continuous discharge, enabling instantaneous high-current demands for aggressive drone maneuvers and high-velocity climbs.
  • Ultra-Low Internal Resistance: AC resistance ≤0.6 mΩ minimizes energy loss as waste heat, improving efficiency and thermal management during high-power operation.

Trade-offs

  • Capacity vs. Discharge Rate Trade-off: The 22Ah variant offers higher capacity but a reduced continuous discharge rate of 12C compared to the 12Ah variant's 20C, limiting peak power output for high-capacity configurations.
  • Form Factor Constraints for Integration: With pouch dimensions up to 11×87×187 mm, the 22Ah cell may challenge integration into compact UAV frames designed for smaller power sources, requiring careful layout planning.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Nominal Electrical Capacity

12 Ah, 22 Ah
