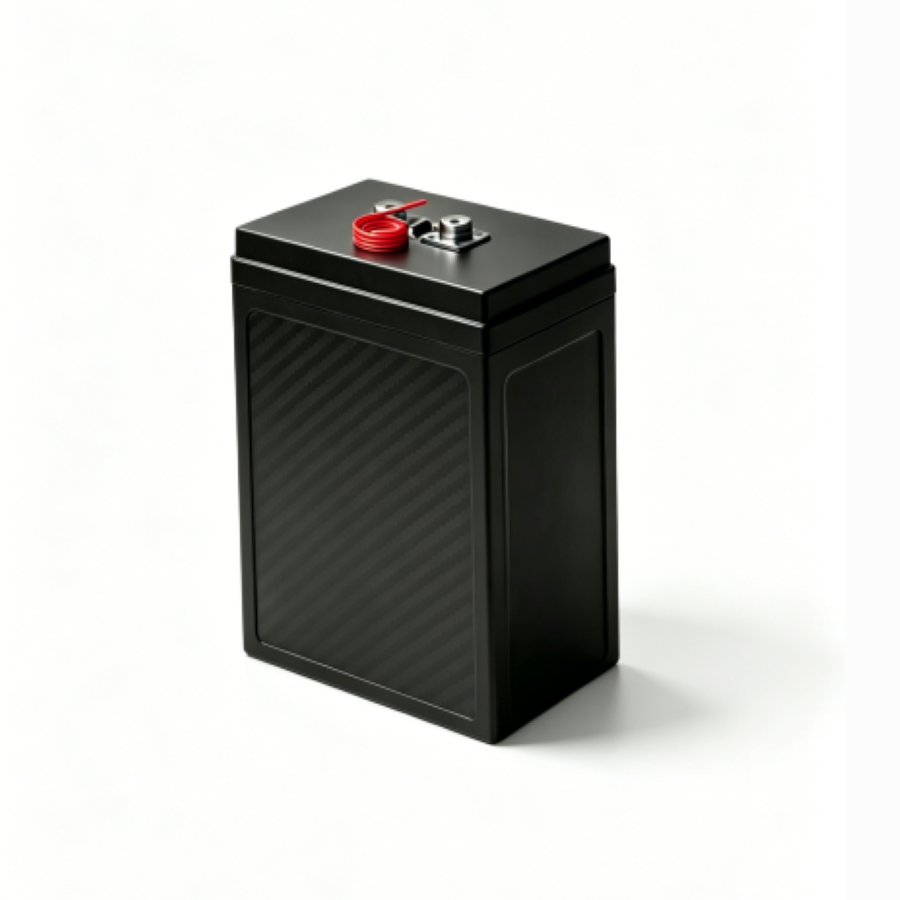

83.2V 233.1Ah ENERGY STORAGE STATION BATTERY | ATOMFAIRCOMMERCIAL GRADE · PRODUCTION
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This high-voltage battery system requires strict adherence to electrical safety protocols and environmental controls. It must be operated within the specified voltage range and at temperatures that prevent thermal runaway.
- Voltage Constraints: Operate only within 65.0 V to 94.9 V working voltage range to prevent over-discharge or overcharge.
- Current Limits: Continuous charge current must not exceed 116 A, and peak discharge current must not exceed 466 A.
- Thermal and Environmental Management: Maintain ambient temperature near 25°C and ensure weatherproof containment for outdoor installations.
Follow these steps to safely install and activate the battery system for EV fast charging. Proper initialization ensures optimal performance and longevity.
Required Equipment: High-voltage insulated gloves, Voltage multimeter, Torque wrench, Class C fire extinguisher
- Inspect
Inspect the battery chassis for physical damage or corrosion before handling. - Connect
Connect the battery output terminals to the charging station busbars using appropriate high-voltage cables. - Verify Voltage
Verify the system voltage matches the nominal 83.2 V using a calibrated multimeter. - Set Charge Current
Set the charge controller to limit charging current to a maximum of 116 A. - Monitor Temperature
Monitor the battery temperature during the first charge cycle to ensure it remains within safe limits.
What is the trade-off between continuous 1C discharge and peak 2C burst discharge for EV buffering with this 83.2V 233.1Ah battery?
The battery supports a continuous rated discharge of 233 A (1C) and a peak burst discharge of 466 A (2C), but the peak rate is limited to transient loads only, not sustained operation. This trade-off enables rapid EV buffering during high-demand spikes while maintaining thermal stability and cycle life under normal 1C continuous discharge conditions, as specified in the product's rated current thresholds.
Can this 19.39kWh storage module be integrated with existing 400V or 800V EV fast charging architectures without additional voltage conversion?
No, direct integration without conversion is not feasible because the module operates at a nominal 83.2V DC with a working range of 65.0V to 94.9V DC, which is incompatible with standard 400V or 800V EV charging bus voltages. The system is designed as a low-voltage grid buffer for step-up transformer or DC-DC converter integration, not as a direct high-voltage pack replacement.
What are the critical handling and infrastructure requirements for installing this 100 kg battery chassis in outdoor EV charging stations?
The 100 ± 5 kg chassis requires mechanical lifting equipment for installation and must be placed at altitudes ≤2000 meters to maintain structural integrity. The unit operates safely in ambient temperatures from -20°C to 50°C during discharge and 0°C to 50°C during charge, with storage limits from -30°C to 60°C and unlimited humidity protection, making it suitable for harsh outdoor environments provided proper ventilation and mounting are ensured.
This 83.2V 233.1Ah energy storage battery delivers 19.39 kWh capacity through condensed core engineering for ultra-low internal resistance, enabling 1C peak charge and 2C peak discharge for rapid EV buffering, but requires careful site planning due to its 100 kg mass and ≤2000 m altitude ceiling.
Positive
- Ultra-low internal resistance design: Condensed core infrastructure power hardware engineering achieves ultra-low internal resistance, enabling 1C peak charge (233A) and 2C peak discharge (466A) for rapid EV buffering.
- Wide temperature tolerance and rugged chassis: Supports charging from 0°C to 50°C and discharging from -20°C to 50°C, with storage from -30°C to 60°C, housed in a 100 kg vertical chassis designed for harsh outdoor conditions.
Trade-offs
- Significant mass and footprint requirements: The 100±5 kg assembly with dimensions 395×245×1145 mm demands proper mounting infrastructure and mechanical handling for installation and maintenance.
- Altitude operational ceiling of 2000 m: Maximum operating altitude is 2000 meters, which may preclude use in high-altitude installations without derating or alternative solutions.
