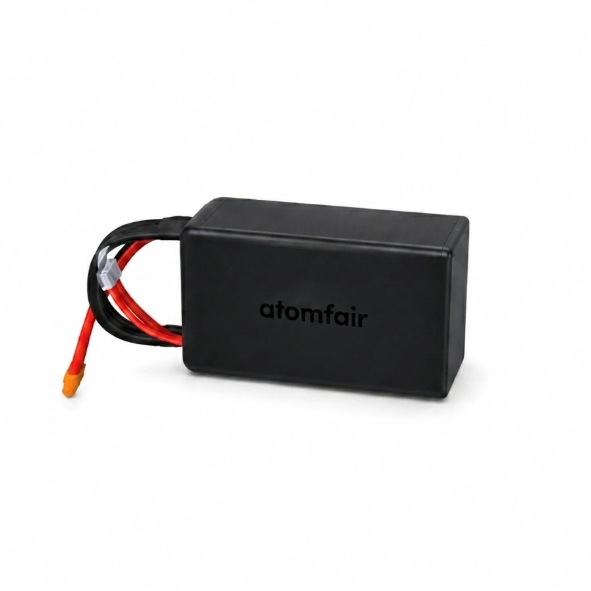

51.2V 50Ah Condensed Core Battery Mining Marine Power Supply

51.2V 50Ah Condensed Core Battery Mining Marine Power Supply

$790.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Commercial-grade 51.2V 50Ah condensed core battery pack with 2.56kWh capacity, IP67/IP68 ingress protection, and Ex(ia)IIICT6Gb explosion rating for mining and marine use. Order now.

Category:
Tags:
Brands:

Description

51.2V 50Ah CONDENSED CORE BATTERY – MINING/MARINE POWER SUPPLY | ATOMFAIR

COMMERCIAL GRADE · PRODUCTION

Product Overview
High-capacity safety systems demand rugged layouts, and this premium mining marine power supply battery delivers extreme durability via an advanced condensed core battery pack matrix. Engineered to perform as a reliable 51.2V 50Ah explosion proof power standard, the system supplies a robust 2.56kWh industrial battery baseline capacity. It easily supports a 1C to 6C continuous discharge rate window alongside a stable 1C maximum charging input profile. Built with a highly reinforced, sealed chassis meeting strict IP67/IP68 ingress limits and Ex(ia)IIICT6Gb industrial explosion ratings, it isolates heavy-duty cells from volatile external environments completely. It serves as an essential infrastructure instrument for subterranean mining machinery, heavy electric vessels, marine propulsion systems, and harsh industrial automated equipment interfaces. For bulk inquiries or official volume quotations, please contact us via email at inquiry@atomfair.com.

Technical Specifications
PARAMETER VALUE
Nominal Voltage 51.2 V
Rated Capacity 50 Ah
Rated Stored Energy 2.56 kWh
Charge Cut-off Voltage 58.4 V
Charge Rate Current 0.3C – 1C (Standard Range), Max 1C Continuous
Discharge Voltage Range 40.0 V – 58.4 V Cut-off Limits
Discharge Rate Capacity 1C – 6C Continuous High Rate Deployment
Explosion Protection Rating Ex(ia)IIICT6Gb Certified (Specialized Mining Infrastructure Configuration)
Ingress Protection Envelope IP67 / IP68 Dust and Deep Water Hermetic Seal
Flame Retardant Matrix UL94 V-0 Certified High-Safety Structural Composites
Operating Temperature Envelope Discharging: -20°C to 65°C | Charging: -10°C to 45°C
Mechanical Stress Resistance IEC60068-2-6 Vibration, Moisture, Salt Fog, and Acid/Alkali Shielded
Transport Safety Standard UN38.3 Certified and Validated Group Packing
Alternative Catalog Items Explore our complete component catalog for alternative volumetric capacities, high-conductivity polymer separators, aluminum-laminated protective packaging films, or multi-channel battery cycling systems.

Key Features & Advantages
  • Intrinsic Explosion-Proof Safety: Outfitted with an official Ex(ia)IIICT6Gb rating to securely suppress ignition risks inside high-dust or volatile mining shafts.
  • Hermetic IP67/IP68 Environment Shield: Advanced structural enclosure repels water submersion, salt spray oxidation, and alkaline deterioration seamlessly.
  • Heavy High-Rate 6C Output Profile: Easily fires high continuous discharge rates up to 6C, handling instant motor surges without transient voltage drops.
  • IEC60068-2-6 Certified Rigidity: Absorbs severe cyclical engine vibrations and physical shock waves typical of deep-sea hulls and heavy drilling rigs.

APPLICATION SCOPE: Highly recommended for underground heavy mining machinery, electric workboats, harbor transport ships, remote marine diagnostic arrays, and rugged industrial automation grids.
SHIPPING & LOGISTICS: Dispatched in industrial shock-insulated packing crates compliant with international maritime and trans-rail transit safety guidelines. Arrives complete with calibrated technical sheets and formal UN38.3 documentation.
OPERATIONAL COMPLIANCE NOTICE: Wear suitable protective gear during module link adjustments and parameters tracking. Never cross the physical 6C maximum discharge or 1C maximum charge ceilings to protect interior line parameters. Securely anchor heavy-duty cases to structural tables to mitigate sliding hazards in rough sea environments. Follow regional electrical codes during installation.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This battery pack must remain within its sealed IP67/IP68 chassis to preserve the Ex(ia)IIICT6Gb explosion-proof integrity. Charging current must not exceed the maximum continuous 1C rate to prevent thermal runaway and cell degradation.

  • Chassis Integrity: Do not open, modify, or penetrate the sealed chassis as this voids the explosion-proof rating and creates a safety hazard.
  • Charging Current Limit: Always charge using a system that limits continuous current to 1C (50 A) to avoid overcurrent-induced failure.
  • Discharge Rate Window: Operate only within the 1C to 6C continuous discharge window to prevent excessive heat generation and capacity loss.
  • Environmental Isolation: Do not expose the battery to environments exceeding IP67/IP68 ingress limits or lacking the required explosive atmosphere certification.

Deploy the battery into a mining or marine power system following strict safety protocols. Verify all environmental and electrical parameters before energizing the system.

Required Equipment: Compatible charging system with adjustable voltage and current limiting

  1. Inspect the battery chassis
    Inspect the battery chassis visually for cracks, dents, or compromised seals before any installation activity.
  2. Configure the charging system
    Set the charging system to a maximum voltage of 58.4 V and a maximum continuous current of 50 A to match the battery charge cut-off and 1C rate.
  3. Verify the operating environment
    Verify that the installation location meets IP67/IP68 ingress protection and Ex(ia)IIICT6Gb explosion-proof classification requirements.
  4. Connect the battery terminals
    Connect the battery positive and negative terminals to the load or charging system using appropriately rated, insulated connectors.
  5. Perform initial power-up check
    Monitor the battery voltage and current during the first charge cycle to confirm the system operates within the specified discharge voltage range of 58.4 V down to the minimum cutoff.

What is the trade-off between continuous discharge rate and thermal stability for the 51.2V 50Ah Condensed Core Battery in mining applications?

The battery supports a 1C to 6C continuous discharge rate window, but sustained high-rate discharge at 6C generates significant internal heat that must be managed within the -20°C to 65°C operating envelope. The UL94 V-0 flame-retardant matrix and IP67/IP68 sealed chassis mitigate thermal runaway risk, but the Ex(ia)IIICT6Gb intrinsic safety rating imposes strict energy-limiting constraints that cap peak current draw in volatile environments. Engineers must balance power demand against ambient temperature and enclosure ventilation to avoid exceeding the 65°C discharge ceiling.

Can the 51.2V 50Ah Condensed Core Battery be integrated into existing marine propulsion systems with standard BMS communication protocols?

Integration requires verifying compatibility with the battery's charge cut-off voltage of 58.4 V and discharge voltage range of 40.0 V to 58.4 V, as well as its 1C maximum continuous charge rate. The system is built for harsh industrial interfaces but does not specify standard CAN bus or RS485 protocols in the provided description, so custom BMS integration may be needed for marine propulsion controllers. The IP67/IP68 hermetic seal and IEC60068-2-6 vibration resistance ensure it withstands marine environments, but electrical interface details must be confirmed with the manufacturer for seamless integration.

What are the specific handling and storage requirements for the 51.2V 50Ah Condensed Core Battery to maintain UN38.3 certification compliance?

The battery is UN38.3 certified for transport, requiring validated group packing to prevent short circuits and physical damage during shipment. Storage must adhere to the charging temperature range of -10°C to 45°C and avoid exposure to moisture or corrosive atmospheres due to the IP67/IP68 seal integrity. The Ex(ia)IIICT6Gb rating mandates that storage areas be free of explosive gas concentrations, and the UL94 V-0 composite housing should not be subjected to mechanical stress that could compromise the flame-retardant matrix.

This 51.2V 50Ah condensed core battery delivers a high continuous discharge window of 1C to 6C for demanding mining and marine applications, paired with IP67/IP68 sealing and Ex(ia)IIICT6Gb explosion-proof certification. The unit's charging is limited to a maximum 1C rate and requires ambient temperatures above -10°C during charge, which may constrain fast turnaround operations in cold environments.

Positive

  • High continuous discharge rate: Supports 1C to 6C continuous discharge, enabling sustained high-power delivery for heavy mining machinery, marine propulsion, and industrial automated equipment.
  • Rugged environmental and explosion protection: IP67/IP68 hermetic sealing and Ex(ia)IIICT6Gb explosion rating, combined with IEC60068-2-6 vibration, moisture, salt fog, and acid/alkali resistance, ensure reliable operation in volatile and harsh conditions.

Trade-offs

  • Limited charging rate: Maximum charging current is 1C continuous (standard range 0.3C to 1C), which may require longer downtime for recharging relative to the high discharge capability.
  • Restricted charging temperature range: Charging is only permissible between -10°C and 45°C; subzero charging below -10°C is not supported, potentially limiting cold-weather operational cycles.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
