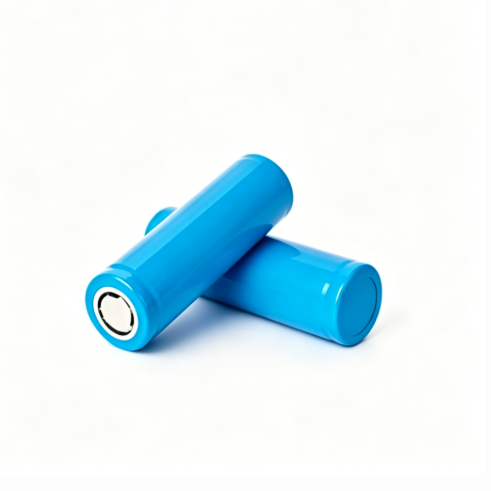

Wide Temperature Range 21700 Tablets Lithium-Ion Battery | ATOMFAIR

Wide Temperature Range 21700 Tablets Lithium-Ion Battery | ATOMFAIR

$6.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

5.0Ah 3.6V 21700 tabless Li-ion cell with NCM/Gr+SiOx chemistry. Supports 15C continuous discharge, 30C pulse (10s), 5C fast charge. Ultra-wide temperature: discharge -60°C to +60°C. High energy density ≥250Wh/kg. Ideal for EVs, power tools, and extreme environments.

Category:
Tags:
Brands:

Description

WIDE TEMPERATURE RANGE 21700 TABLEtS LITHIUM-ION BATTERY

COMMERCIAL GRADE · PRODUCTION

Product Overview
Designed for severe environmental deployment and high-frequency power demands, this high-performance tabless lithium ion battery features an innovative cylindrical configuration optimized to eliminate standard current collectors. Implementing a specialized wide temperature range 21700 architecture, the 5.0Ah 3.6V cell utilizes an advanced NCM silicon oxide chemistry platform (Nickel Cobalt Manganese / Graphite + Silicon Oxide) to yield low impedance metrics (≤3.5 mΩ). This structural configuration supports a secure 15C high rate continuous discharge profile with high energy density parameters (≥250 Wh/kg). Its heavy-duty tabless engineering path balances internal heat profiles safely under continuous loads, supplying reliable, high-power electron flow down to cold sub-zero environments, acting as the definitive power baseline for modern electric vehicle powertrains, portable tools, and aerospace engineering tasks. For bulk inquiries or official volume quotations, please contact us via email at inquiry@atomfair.com.

Technical Specifications

PARAMETER VALUE
1. Core Device & Electrochemical Design
Cell Format Standard Cylindrical Form Factor (Tabless 21700 Profile)
Cell Chemistry Link NCM / Gr+SiOx (Nickel Cobalt Manganese / Graphite + Silicon Oxide)
Rated Capacity / Rated Voltage 5.0 Ah / 3.6 V (@ 0.2C Evaluation Rate)
Voltage Range Parameters 4.20 V Cut-off – 2.50 V Cut-off
AC Internal Resistance ≤ 3.5 mΩ (@ 50% State of Charge)
2. Cathode & Charge Parameters
Standard Charge Current 1.0 C
Max. Continuous Charge 5.0 C (Thermal cut-off @ 60°C)
Charge Temperature Range 0 °C ~ +60 °C
3. Anode & Discharge Parameters
Standard Discharge Current 1.0 C
Max. Continuous Discharge 15.0 C (Thermal cut-off @ 80°C)
Pulse Discharge Current (10s) 30.0 C (≥ 30% State of Charge)
Discharge Temperature Range -60 °C ~ +60 °C
4. Physical Package & Energy Metrics
Estimated Dimensions 21 mm × 70 mm (Φ × H)
Estimated Weight 70 g
Gravimetric Energy Density ≥ 250 Wh/kg (@ 0.2C Rate)
Volumetric Energy Density ≥ 720 Wh/L (@ 0.2C Rate)
Verified Lifecycle Metrics (@ 25°C) ≥ 1000 cycles (1C/1C 100% DOD) | ≥ 500 cycles (1C/4C 100% DOD) | ≥ 300 cycles (2C/10C 80% DOD)
Alternative Catalog Items Explore our complete component catalog for alternative volumetric capacities, high-conductivity polymer separators, aluminum-laminated protective packaging films, or multi-channel battery cycling systems.

Key Features & Advantages
  • Ultra-Wide Temperature Range: Discharge from -60°C to +60°C and charge from 0°C to +60°C, enabling reliable operation in extreme cold and hot environments.
  • Tabless Architecture: Innovative tabless design drastically reduces internal resistance (≤3.5 mΩ), minimizing heat generation and enabling high continuous discharge up to 15.0C and pulse discharge up to 30.0C (10s).
  • High Power & Fast Charge: Supports 5C maximum continuous charge for rapid recharging, ideal for high-uptime applications.
  • High Energy Density: ≥250 Wh/kg and ≥720 Wh/L, offering 5.0Ah capacity in a compact 21700 form factor.
  • Robust Cycle Life: ≥1000 cycles at 1C/1C, ≥500 cycles at 1C/4C, and ≥300 cycles at 2C/10C 80% DOD, ensuring long-term durability.

APPLICATION SCOPE: Highly recommended for aerospace drone configurations, automotive powertrain prototyping, high-capacity uninterruptible UPS lines, and next-generation extreme environment energy storage system testing.
SHIPPING & LOGISTICS: Secured within shock-damping hazardous material transport packaging boxes to preserve terminal connections. Arrives pre-calibrated and complete with comprehensive factory batch inspection data certificates.
IMPORTANT NOTICE: This tabless 21700 cell features ultra-low internal resistance and excellent thermal management. Charge with CCCV profile, cut-off at 60°C. Discharge cut-off at 80°C. Do not exceed rated currents. For extreme low temperature operation (-60°C), pre-conditioning may be required. Store in dry, ventilated area between 15-30°C. Do not disassemble, short circuit, or expose to fire.

WIDE TEMP & TABLESS SOLUTIONS
Request a quote for samples, pilot runs, or mass production. Our engineering team supports high-rate tabless cell integration for extreme environments.
EMAIL: INQUIRY@ATOMFAIR.COM
Global logistics · Fast sample delivery · Technical datasheets available

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
