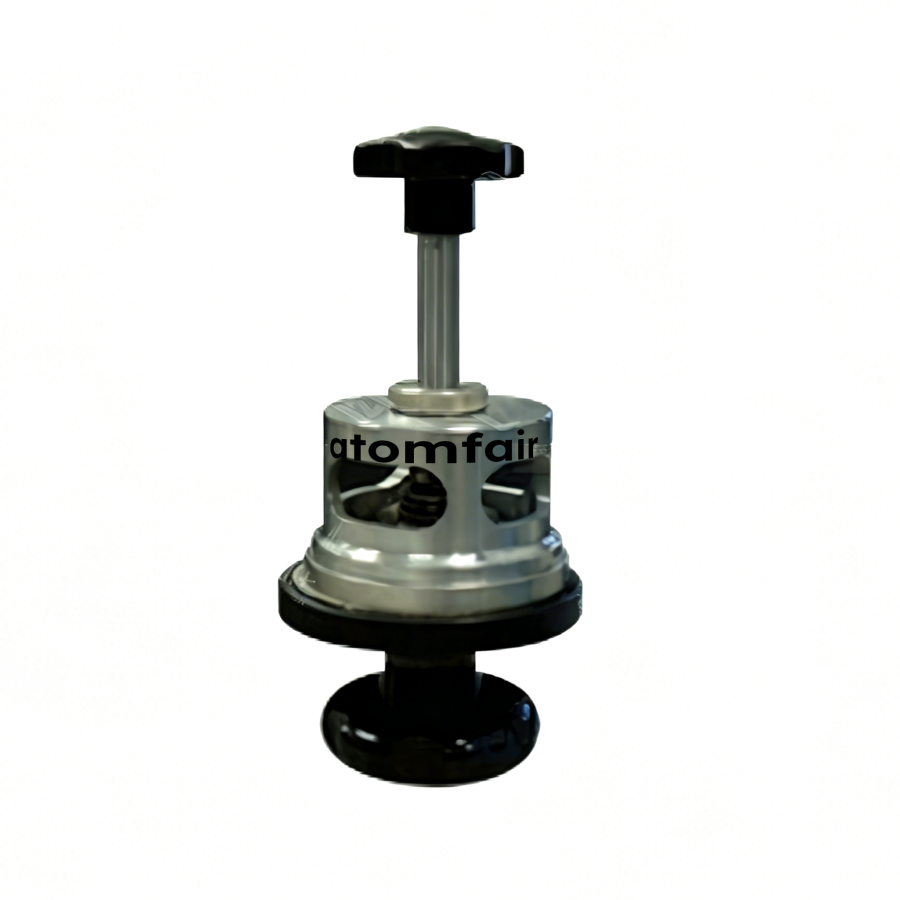

ATOMFAIR® SMP-58 electrode sampler punch with a silver body metallic shaft and black knob on top and bottom.

SMP-58 Electrode Sampler Punch Φ50mm 0.05-0.5mm ATOMFAIR®

$303.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Laboratory-grade electrode sampler punch for 0.05-0.5mm foils. 50mm clean cuts, stainless steel/aluminum. Ideal for R&D and production sampling. Order now.

SKU: AFMSYXEF557
Category: ,
Tags:
Brands:

Description

ATOMFAIR® SMP‑58 ELECTRODE SAMPLER PUNCH (Φ50 MM)

RESEARCH GRADE MATERIAL

Product Overview
The ATOMFAIR® SMP‑58 system introduces a highly precise, compact electrode sampler punch architecture developed to secure uniform circular cutouts from continuous thin-sheet materials. Specifically engineered for academic professors, Ph.D. students, and corporate R&D engineers operating industrial or pilot-scale electrode coaters, this tool utilizes advanced micro-clearance matching blades. The optimized SMP‑58 Φ50 mm dimensional template allows researchers to execute clean material separation on delicate metallic current collectors and multi-layer composites. By utilizing a highly rigid alignment axis, the portable mechanism delivers high cutting precision without wrinkling or macro-deformation, yielding pristine specimen edges for downstream volumetric and electrochemical evaluation.

Technical Specifications
PARAMETER SPECIFICATION DETAILS
Product Model Code Atomfair SMP‑58 (Version V2.0 / Stable Release)
Sampling Geometry Standard Fixed Diameter: Φ50 mm
Hardware Dimensions Φ100 mm Base × L175 mm Length Cylindrical Form Factor
Net Equipment Weight Approximately 1.0 kg (Optimized for handheld and tabletop portability)
Structural Substrates High-grade Stainless Steel and Anodized Structural Aluminum Alloy
Applicable Thickness Range 0.05 – 0.5 mm continuous sheet materials
Target Compatibility Metallic foils (Cu, Al), polymer battery separator films, and coated battery electrode substrates
Alternative Options Explore our related catalog of automatic disc cutters, heavy-duty pneumatic punch presses, or customized blade geometries (Φ6 mm to Φ100 mm). For bespoke structural spacing or bulk laboratory hardware supply packages, please contact our support team.

Key Features & Advantages
  • Technical Advantage: Compact, ergonomics-driven external layout enables flexible handling and simple handheld operations across standard lab benches or interior glovebox workspaces.
  • Technical Advantage: Hardened micro-honed internal blade matrices execute high-fidelity matrix shear control, yielding clean specimen edges free of physical micro-burrs, tear lines, or layer marks.
  • Technical Advantage: Lightweight 1.0 kg hardware configuration scales up process mobility, allowing seamless transit between standalone roll-to-roll slitting and separate analytical benches.
  • Technical Advantage: Built with high-purity stainless steel and anodized aluminum plates to guarantee absolute mechanical rigidity, structural durability, and low long-term maintenance overhead.

APPLICATION SCOPE: Rapid coin-cell and pouch-cell active material sampling, current collector substrate verification, post-mortem electrode battery analysis, polymer protective film blanking, material density tracking, and multi-vendor laboratory testing loops.
PACKAGING: Dispatched safely inside a custom-fitted, impact-absorbing research toolkit case enclosing 1x fully calibrated SMP‑58 punch mechanism, 1x matching standard Φ50 mm blade matrix, and 1x protective handling guide.
IMPORTANT NOTICE: Fabricated exclusively for scientific evaluation and prototyping routines in professional laboratory facilities. Do not exceed the maximum 0.5 mm thickness threshold or attempt to slice hardened metal tabs to protect internal die clearance boundaries. Clean substrate particulate accumulations from the lower tray promptly using cleanroom gas purges or anhydrous ethanol to prevent edge degradation.
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The Atomfair SMP-58 Electrode Sampler Punch is a manual tool for cutting circular samples from thin sheet materials. It requires matching blades and is limited to materials with thickness between 0.05 and 0.5 mm.

  • Thickness constraint: The punch is only applicable to materials with a thickness in the range of 0.05 to 0.5 mm.
  • Material compatibility: The punch is designed for use with metal foils, films, and electrode substrates.
  • Blade requirement: Matching blades must be installed for correct operation.

How does the Atomfair SMP-58 achieve no-burr cutting on both thin 0.05 mm metal foils and thicker 0.5 mm electrode substrates?

The SMP-58 uses matching blades with high cutting precision, ensuring clean cuts without burrs or marks across the full 0.05–0.5 mm thickness range, as specified in its design for thin sheet materials including metal foils and electrode substrates.

Can the SMP-58 punch be used for sampling coated lithium-ion battery electrodes without delaminating the active material?

Yes, it is suitable for electrode substrates and films, as it is explicitly designed for clean sampling of thin sheet materials up to 0.5 mm thick. The cutting action minimizes mechanical stress on coatings, reducing the risk of delamination.

Does the Atomfair SMP-58 require any external power, pneumatic supply, or special tools for operation?

No, the SMP-58 is a fully manual punch tool; it requires no external power or pneumatic supply. Its compact design (Φ100 × L175 mm, ~1 kg) and simple operation allow it to be used directly on a laboratory benchtop without additional infrastructure.

The Atomfair SMP-58 Electrode Sampler Punch delivers high-precision, burr-free sampling for thin electrode materials and metal foils within a 0.05–0.5 mm thickness range, though its fixed 50 mm sampling diameter and limited material thickness compatibility constrain its versatility for thicker substrates or variable sample sizes.

Positive

  • High cutting precision, no burrs: The punch produces clean, burr-free cuts on thin sheet materials, which minimizes edge defects and preserves the integrity of electrode samples for accurate testing.
  • Compact and portable design: With a diameter of 100 mm and weight of 1 kg, the tool is small and lightweight, enabling flexible deployment in both R&D labs and production environments without requiring permanent installation.

Trade-offs

  • Fixed sampling diameter: The punch provides a single sampling diameter of 50 mm, which limits its use for applications requiring different or variable sample sizes for electrode or foil analysis.
  • Narrow material thickness range: The tool is designed exclusively for materials between 0.05 and 0.5 mm thickness, excluding thicker substrates such as rigid electrodes or structural foils from its sampling capability.
