Seamless industrial roller PTFE grinding jars featuring airtight sealing lids for high-purity chemical and corrosive material milling.

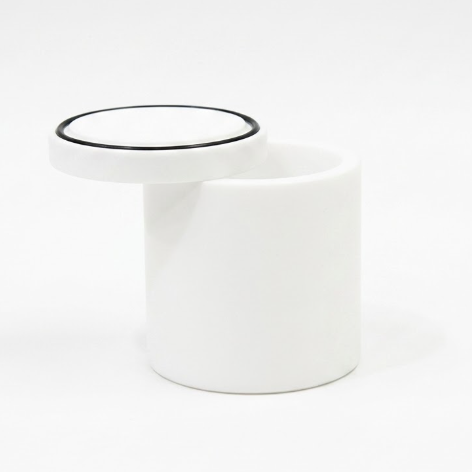

Roller PTFE Grinding Jars Seamless Corrosion-Resistant Containers

$140.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Premium seamless roller PTFE grinding jars engineered for high-purity and corrosive material milling. Acid-proof, non-stick, and low-friction layouts from 500ml up to 20L.

Category:

Description

ROLLER PTFE GRINDING JARS

COMMERCIAL GRADE · PRODUCTION

Product Overview
The roller PTFE mill vessels introduce a premier fluoropolymer material processing advancement engineered to guarantee absolute chemical passivity during aggressive sample pulverization scripts. Operating as high-performance, ultra-pure Grinding Jars, these processing vessels are machined using a raw material stock method to present a completely solid architecture. This technical polymer framework serves as an optimal layout matrix for demanding high-purity material milling, successfully withstanding harsh acids, concentrated alkalis, and complex organic solvent concentrations without leaching trace impurities into the batch. Purpose-built to avoid material cross-contamination or mechanical friction drift, these seamless anti-corrosion containers leverage a highly non-stick, low-friction profile to provide clean sample recovery and flawless mechanical repeatability across premier biochemical laboratories and industrial testing facilities.

Technical Specifications
MODEL VOLUME OUTER DIAMETER (mm) INNER DIAMETER (mm) HEIGHT WITH LID (mm)
500 ml Φ 108 mm Φ 88 mm Φ 137 mm
1000 ml (1L) * Φ 128 mm Φ 108 mm Φ 179 mm
1500 ml Φ 128 mm Φ 108 mm Φ 202 mm
2000 ml Φ 158 mm Φ 134 mm Φ 207 mm
3000 ml Φ 178 mm Φ 154 mm Φ 237 mm
5000 ml Φ 197 mm Φ 173 mm Φ 282 mm
10 L Φ 249 mm Φ 214 mm Φ 328 mm
15 L Φ 298 mm Φ 266 mm Φ 340 mm
20 L Φ 298 mm Φ 262 mm Φ 451 mm
* NOTICE: The listed price is for a single unit of the 1000 ml (1L) specification model. If you require other available volumetric capacities or customized hardware fittings, please contact our support team via email to place your request.

Key Features & Structural Advantages
  • One-Piece Seamless Construction: Engineered via solid polymer raw block machining to remove joints, eliminating processing leak tracks or material fatigue cracking.
  • Absolute Universal Chemical Inertness: Selected premium polytetrafluoroethylene delivers complete corrosion protection against high-concentration acids, bases, and organic solvents.
  • Ultra-Low Friction Adhesion: Highly lubricated non-stick interior properties prevent pulverized cake sticking, minimizing material loss and providing fast, easy rinsing sweeps.
  • Excellent Dynamic Thermal Stability: Retains high structural toughness, elasticity, and anti-aging qualities across extreme high and low operational temperature fields.

APPLICATION SCOPE: Optimized for high-purity fine trace screening, corrosive chemical acid blending, aggressive geological matrix preparation, non-toxic pharmaceutical milling, and semiconductor element processing.
RECOMMENDED BULK PURCHASING MATRIX: Standard delivery package covers the individual solid-molded container vessel and integrated matching sealing lid gasket arrangement. Compatible pure fluoropolymer grinding balls can be added as separate lines.
IMPORTANT PERFORMANCE NOTICE: Maintain standard rotational parameters to minimize frictional heat accumulation past the target material boundaries. Confirm the structural outer diameter profile closely corresponds to your targeted machine roller spacing distances before starting a continuous run.
TAILORED SOLUTIONS FOR RESEARCH
For bulk inquiries or official volume quotations, please contact us via email.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
