ATOMFAIR® RAMAN SPECTROSCOPY TESTING FIXTURE FOR BATTERIESRESEARCH GRADE HARDWARE
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support, special configuration adjustments, or official pricing quotes.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|

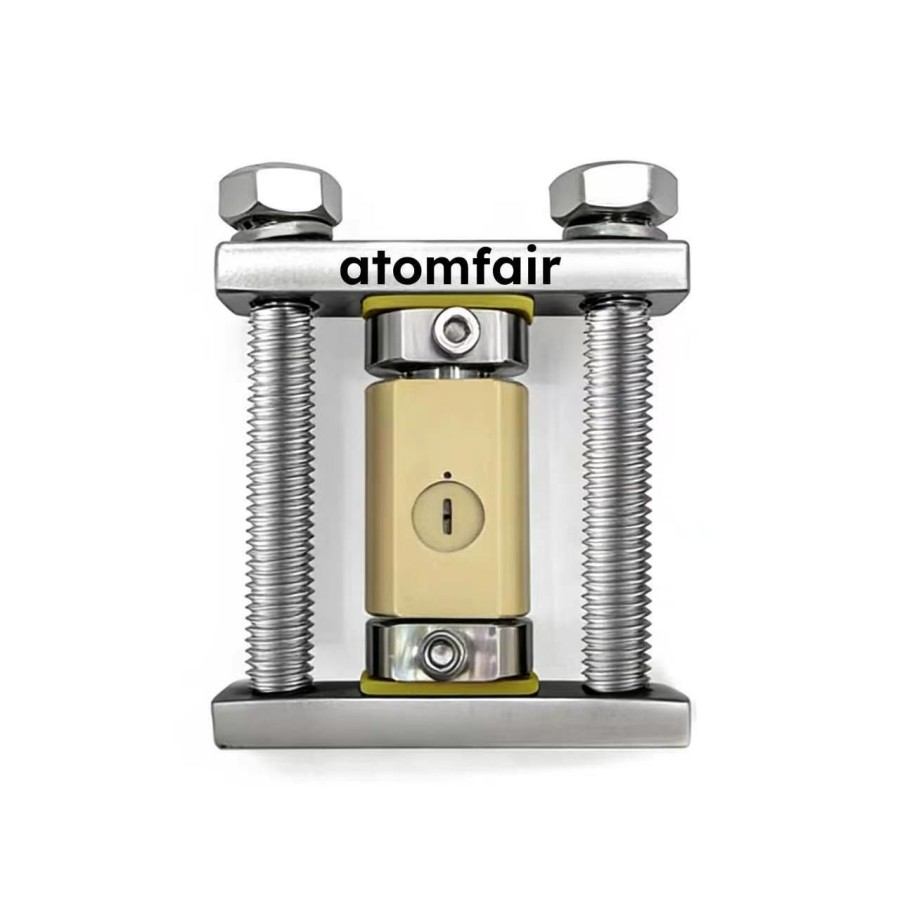

This fixture provides a stable platform for battery sample mounting under Raman spectroscopy. It requires precise alignment for optimal spectral data and operates only at room temperature with a maximum pressure of 500 MPa.
- Pressure Constraint: Operating pressure must not exceed 500 MPa to maintain structural integrity.
- Temperature Constraint: Use exclusively at room temperature to prevent material deformation or spectral interference.
- Alignment Requirement: Precise optical alignment is mandatory for reproducible spectral measurements.
- Material Compatibility: Stainless steel, special steel, and PEEK components are chemically resistant to common battery electrolytes.
- Sample Size Compatibility: Fixture accommodates battery samples with inner diameters ranging from 6 to 20 mm.
Can the Atomfair Raman fixture operate at elevated temperatures while maintaining the 500 MPa working pressure?
No. The fixture is specified for use at room temperature only. While it can withstand up to 500 MPa, operating above room temperature would exceed the stated operating conditions and may compromise performance or safety.
Is this Raman spectroscopy fixture compatible with lithium-ion battery pouch cells or only coin cells?
The fixture features adjustable sample holders with an inner diameter range of 6–20 mm (default 10 mm) and overall dimensions of 80×100 mm, making it suitable for various battery form factors including cylindrical and pouch cells that fit within those size constraints. It is designed for battery R&D including lithium-ion technologies.
What are the recommended storage conditions for this Raman fixture to prevent damage or degradation?
The fixture should be stored in a controlled environment to prevent damage. Disposal must follow local regulations for laboratory equipment. The materials—stainless steel, special steel, and PEEK—require standard care to avoid corrosion or chemical attack.
This fixture enables researchers to perform Raman spectroscopy on battery samples under high pressure (up to 500 MPa) with adjustable sample holders for 6–20 mm diameters, but operates only at room temperature and requires controlled storage to prevent damage.
Positive
- Adjustable sample holders for varied sizes: The fixture's adjustable sample holders accommodate inner diameters from 6 to 20 mm, allowing researchers to mount different battery form factors without requiring multiple fixtures.
- High-pressure capability up to 500 MPa: With a maximum working pressure of 500 MPa, this fixture enables Raman analysis of battery materials under significant mechanical stress, relevant for studying pressure-induced structural changes during cycling.
Trade-offs
- Room temperature operation only: The fixture is specified for use at room temperature, limiting its application for in situ or operando studies that require elevated or cryogenic thermal conditions.
- Controlled storage environment required: The manufacturer recommends storing the fixture in a controlled environment to prevent damage, adding logistical overhead for labs without dedicated storage facilities.
