ATOMFAIR® PTP-572 POWDER TABLET PRESS (0−24 TON)RESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
Do not exceed the rated pressure of 24 tons to prevent structural failure. Inspect hydraulic seals for oil leakage before each use to maintain safe operation.
- Pressure Limit: Never apply pressure beyond 24 tons to avoid mechanical rupture.
- Oil Leak Prevention: Check for hydraulic oil leaks around the seals prior to each operation to prevent contamination and slip hazards.
How does the 0.01MPa precision of the optional digital gauge affect the reproducibility of KBr pellet pressing for FTIR analysis compared to standard analog gauges?
The optional digital gauge provides 0.01MPa resolution, enabling precise pressure monitoring critical for achieving uniform pellet thickness and transparency in FTIR sample preparation. Standard analog gauges typically offer lower resolution, making the digital option essential for applications requiring tight pressure tolerance across the 0–24 Ton range. The press's stable 4-column integrated structure ensures consistent pressure application, further enhancing reproducibility.
What die sizes are compatible with the PTP-572's 95mm piston for preparing samples for infrared detection?
The 95mm piston diameter and 30mm stroke accommodate standard die sets up to approximately 80mm in outer diameter, constrained by the 80×150mm column spacing. For infrared detection, 13mm and 7mm KBr die sets are commonly used and fit within this area, allowing reliable pellet pressing for FTIR analysis as specified in the product's application scenarios.
What are the installation requirements and maintenance benefits of the PTP-572's anti-oil leak 4-column design?
The press weighs 42kg with a 245×175×415mm footprint, requiring a sturdy bench rated for at least 50kg and adequate clearance for operation. The 4-column integrated main board with non-sealed connection design reduces oil leakage paths, eliminating frequent seal replacements and enabling reliable long-term continuous operation. User-friendly maintenance further lowers operating costs.

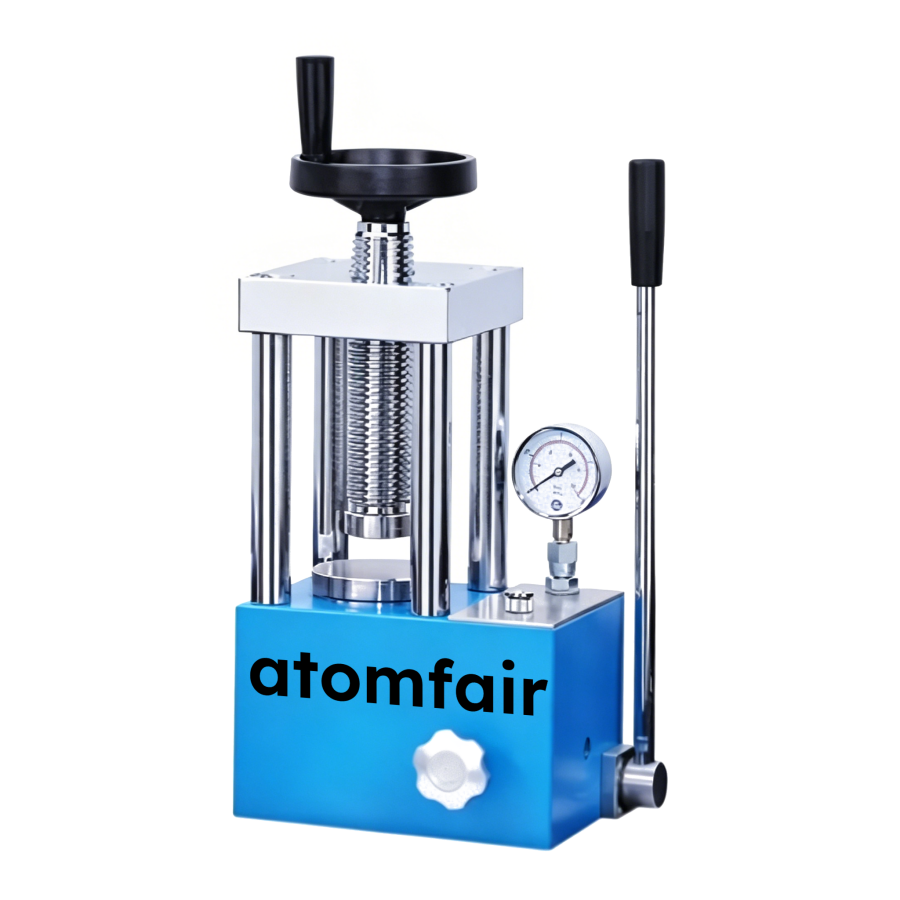

The Atomfair PTP-572 Powder Tablet Press features a 4-column integrated frame with a non-sealed connection design that reduces oil leakage, and an optional digital gauge providing 0.01 MPa pressure precision, making it suitable for laboratory infrared sample preparation and materials testing.
Positive
- Integrated anti-oil leakage structure: The 4-column integrated main board uses a non-sealed connection design that effectively reduces oil leakage, improving long-term reliability and reducing maintenance frequency.
- High-precision pressure monitoring option: An optional digital pressure gauge with 0.01 MPa display accuracy enables precise pressure monitoring for applications requiring fine control, such as infrared detection sample preparation.
Trade-offs
- Digital gauge is optional: The high-precision digital pressure gauge is not included by default; it must be ordered separately to achieve 0.01 MPa monitoring accuracy.
