ATOMFAIR® PTP-837 POWDER TABLET PRESS (0−24 TON)RESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|

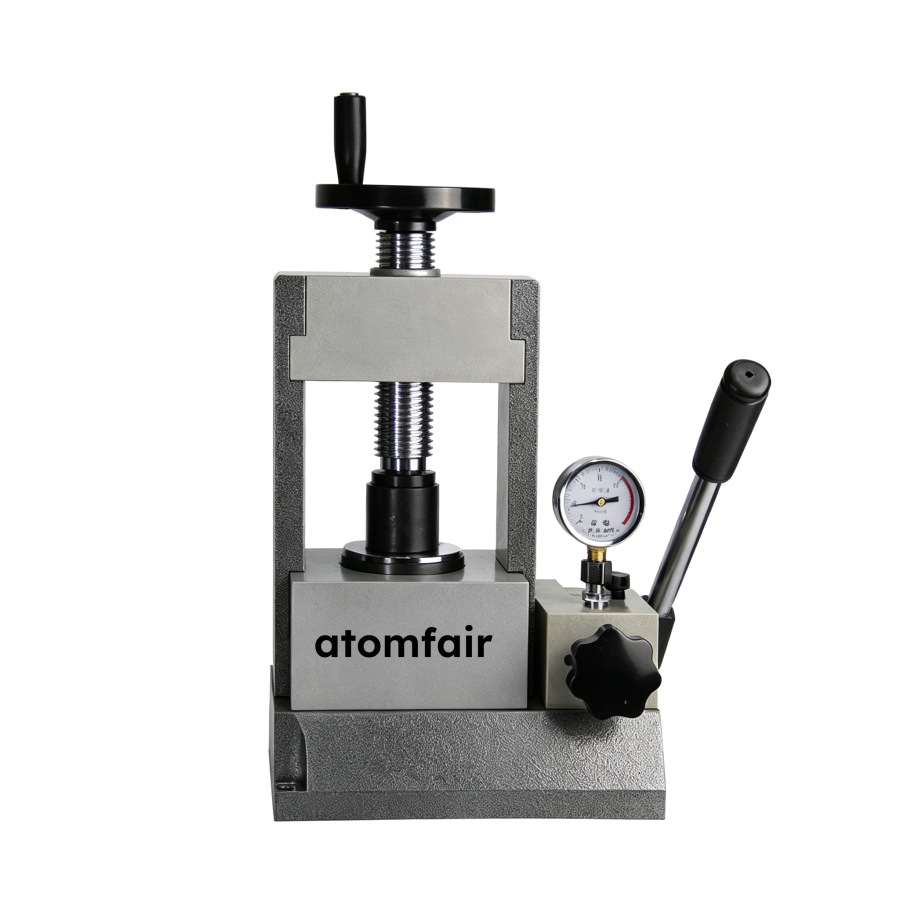

The Atomfair PTP-837 is a laboratory powder tablet press with a maximum pressure of 24 tons and an automatic piston reset. It incorporates an overpressure warning system to prevent operation beyond rated limits.
- Pressure Limit: The press must not be operated above 24 tons to avoid mechanical failure.
- Piston Travel: The piston stroke is limited to 20mm; exceeding this may damage the press.
- Overpressure Warning: The built-in warning system triggers at the pressure threshold to alert the user.
- Weight and Stability: The 49kg press requires a sturdy bench to ensure safe operation.
- Side Wall Design: The side wall design ensures structural stability under vertical loads.
This procedure describes the safe operation of the PTP-837 press for powder tablet preparation. Always verify the overpressure warning is functional before use.
- Setup
Set the press on a level, stable workbench and confirm the piston is fully retracted. - Load Sample
Load the powder sample into an appropriate die set and place it centrally under the piston. - Apply Pressure
Operate the press handle slowly to apply force while monitoring the overpressure warning and staying within the 24-ton limit. - Release and Reset
Release the pressure, allow the automatic piston reset to retract the piston, then remove the die set.
How does the side wall design improve structural stability compared to traditional two-column presses?
The side wall design effectively prevents metal deformation under high pressure, providing a stable and reliable structure. This is achieved through the integrated compact structure with two side wall columns spaced at 110×140 mm, ensuring consistent force distribution across the φ86 mm piston over the 0–24 ton range.
What are the dimensional limitations for the pressing die sets that can be used with the PTP-837?
The press has a column spacing of 110×140 mm and a piston stroke of 20 mm, which constrain the maximum die set dimensions. The φ86 mm piston diameter limits the pellet diameter to ≤86 mm, and the 20 mm stroke restricts the achievable pellet thickness to within 20 mm.
How does the overpressure warning system protect the press during operation?
The built-in overpressure warning line provides real-time operational safety protection by alerting users when the pressure approaches the 24-ton maximum, preventing pressure overload risk. This feature reduces the chance of structural damage or operator injury during high-load tablet pressing.
The Atomfair PTP-837 powder tablet press employs a side-wall design to resist metal deformation during high-force operation and an automatic piston reset to streamline workflow, but the 20mm piston stroke and 110×140mm column spacing limit the maximum pellet thickness and die dimensions, making it best suited for standardized infrared sample preparation in small-scale laboratories.
Positive
- Side-wall structural stability: The side-wall column design prevents metal deformation under load, ensuring long-term dimensional accuracy and repeatable tablet quality even during repeated high-tonnage operation.
- Automatic piston reset: The built-in auto-reset mechanism reduces manual intervention and cycle time, enhancing operational efficiency for batch sample preparation in R&D or quality control workflows.
Trade-offs
- Limited piston stroke: With only 20mm of piston travel, the press cannot accommodate thick powder beds or tall die assemblies, constraining the range of tablet geometries and sample masses achievable.
- Narrow column spacing: The 110×140mm column spacing limits the maximum die diameter and lateral accessory dimensions, potentially excluding larger or non-standard pressing tooling without modification.
