Platinum wire counter electrode series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

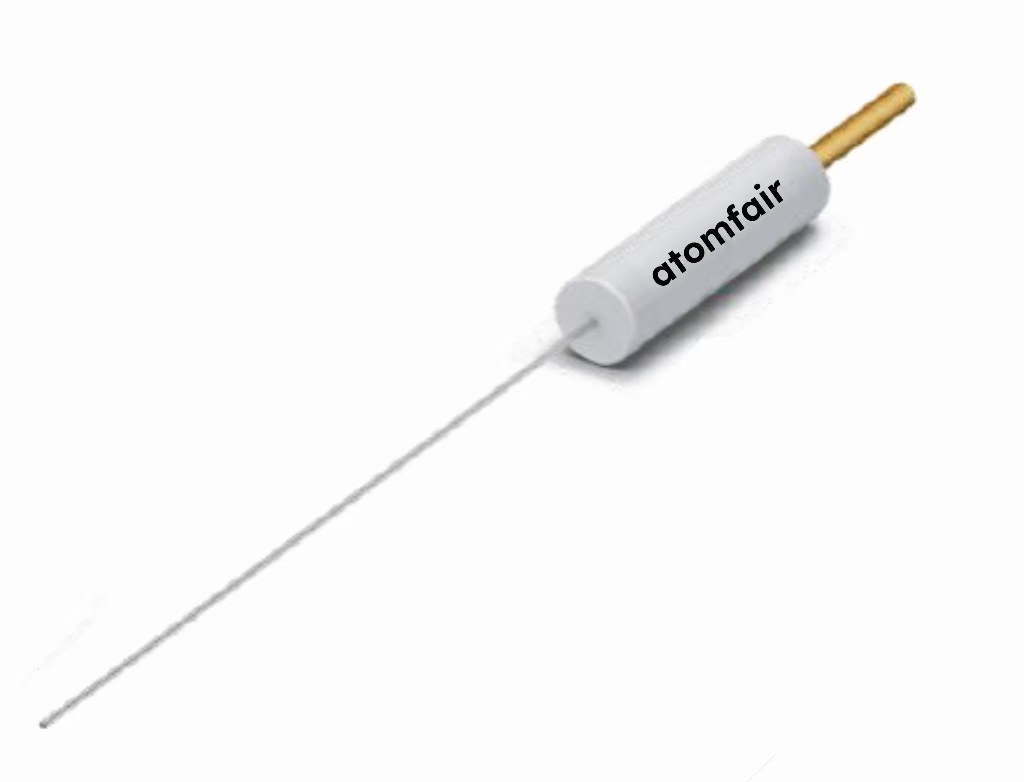

The ATOMFAIR® Platinum Wire Counter Electrode is constructed with a high-purity platinum wire measuring 0.5mm or 1.0mm in diameter and 37mm in length. The electrode body is manufactured from PEEK with dimensions of 6mm x 20mm, offering excellent chemical resistance and thermal stability. A gold-plated copper rod (1.5mm x 15mm) serves as the conductive medium, ensuring low contact resistance and superior corrosion protection. All dimensions listed are standard options; custom specifications are available upon request.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Cylindrical configuration
Insulative Body PTFE
Conductive Medium Gold-plated copper rod (1.5mm x 15mm)
2. Electrode Material Portfolio Parameters
Material Platinum wire
Purity 99.99%
Exposed Platinum Wire Dimensions 0.5*37 (mm), 1.0*37 (mm) (Available for other dimensions upon special request)


Key Features & Advantages
  • Large Active Surface Area: The extended 37mm wire length offers high current capacity, making this electrode suitable for a broad range of electrochemical cell configurations.
  • High-Purity Platinum: 99.99% platinum wire ensures minimal contamination and highly reproducible electrochemical behavior across experiments.
  • Stable Conductive Path: Gold-plated copper rod (1.5mm x 15mm) minimizes contact resistance and provides long-term oxidation protection.
  • Flexible Customization: All parameters including wire diameter, wire length, rod dimensions, and body size can be tailored to specific experimental requirements.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Size

0.5*37 (mm), 1.0*37 (mm)
