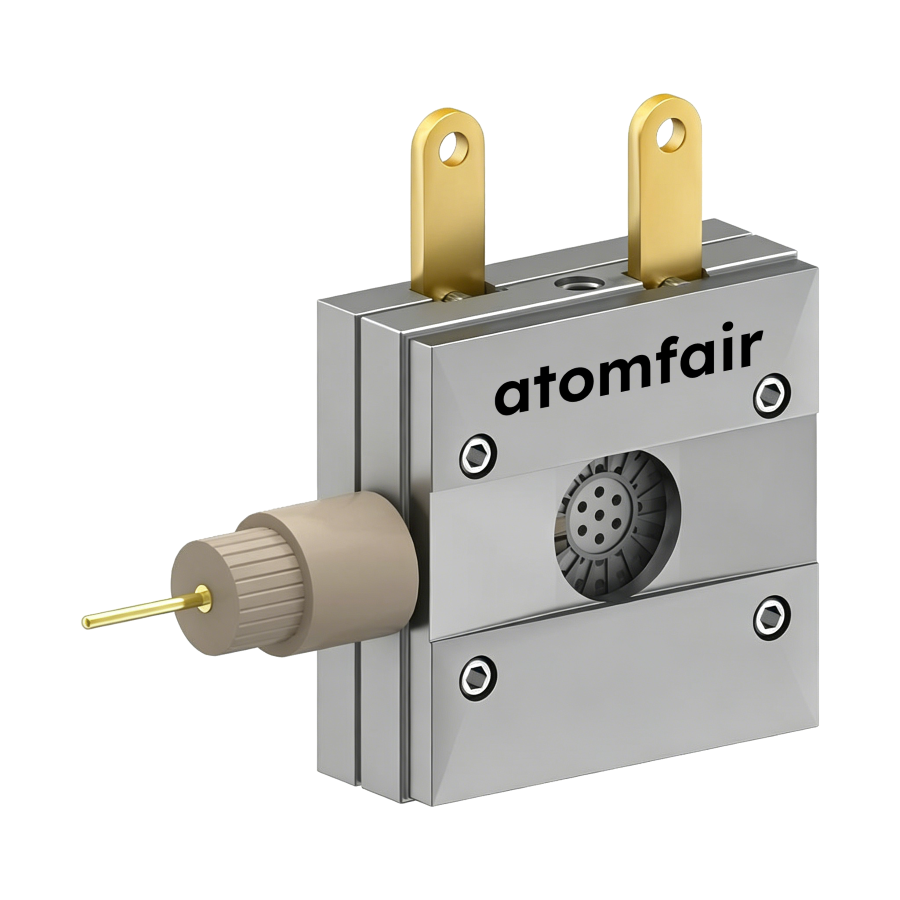

ATOMFAIR® three-electrode XRD battery cell with metallic body, two top gold tabs, and a protruding side reference pin.

ATOMFAIR® In-Situ XRD Three-Electrode Battery Cell

$1,020.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando three-electrode battery cell price deals for precision diffraction spectroelectrochemical platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® IN-SITU XRD THREE-ELECTRODE BATTERY CELL

OPERANDO THREE-ELECTRODE X-RAY DIFFRACTION

Product Overview
This professional diffraction battery installation is engineered to unlock uncompromised cell-to-cell consistency during live phase structural and crystalline transformations. Upgraded to feature an integrated reference terminal circuit, it separates working substrate polarization metrics from counter overpotential effects under true constant tracking profiles. It establishes an uncompromised operando three-electrode battery cell price validation platform for cutting-edge precision diffraction spectroelectrochemical platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Structural Architecture & Upgraded Topology
Design Integration Advanced 3-electrode configuration upgraded with an independent reference track integrated onto standard footprint lines
Outer Dimensions 50 × 50 × 24 mm compact block layout optimized for constrained diffractometer staging zones
2. X-Ray Window & Boundary Interfaces
X-Ray Window Diameter ∅8 mm optimized clear aperture window clearing intense beam footprints
Channel Aperture Width 8 mm optimized geometric internal path supporting wide diffraction scattering tracking angles
Interfacial Gap Profile Ultra-short working electrode-to-window clearance gap of <2 mm suppressing X-ray background scatter
Hermetic Sealing System High-performance, chemical-resistant perimeter O-ring system ensuring reliable ambient gas-tight isolation
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • True Three-Electrode Half-Cell Tracking: Dedicated reference circuit isolates the active phase kinetics from overlapping counter-electrode drift.
  • High Transmission Low-Attenuation Gap: Strict <2 mm window clearance distance keeps background X-ray attenuation minimized.
  • Robust Ambient Interoperability: Superior sealing structures support extended open-air diffraction runs after glovebox preparation loops.

APPLICATION SCOPE: In-situ XRD 3-electrode battery profiling, precise operando structural decay profiling, and reference-tracked half-cell lattice indexing.
PACKAGING: Sealed high-protection cleanroom box featuring individual molded slots for structural components and fittings.
IMPORTANT NOTICE: When mounting the upgraded active layer stack, verify structural components sit flat to preserve the true <2 mm parallel focal distance. Symmetrically compress all perimeter locking fasteners to protect internal seals and prevent windows from misaligning.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
