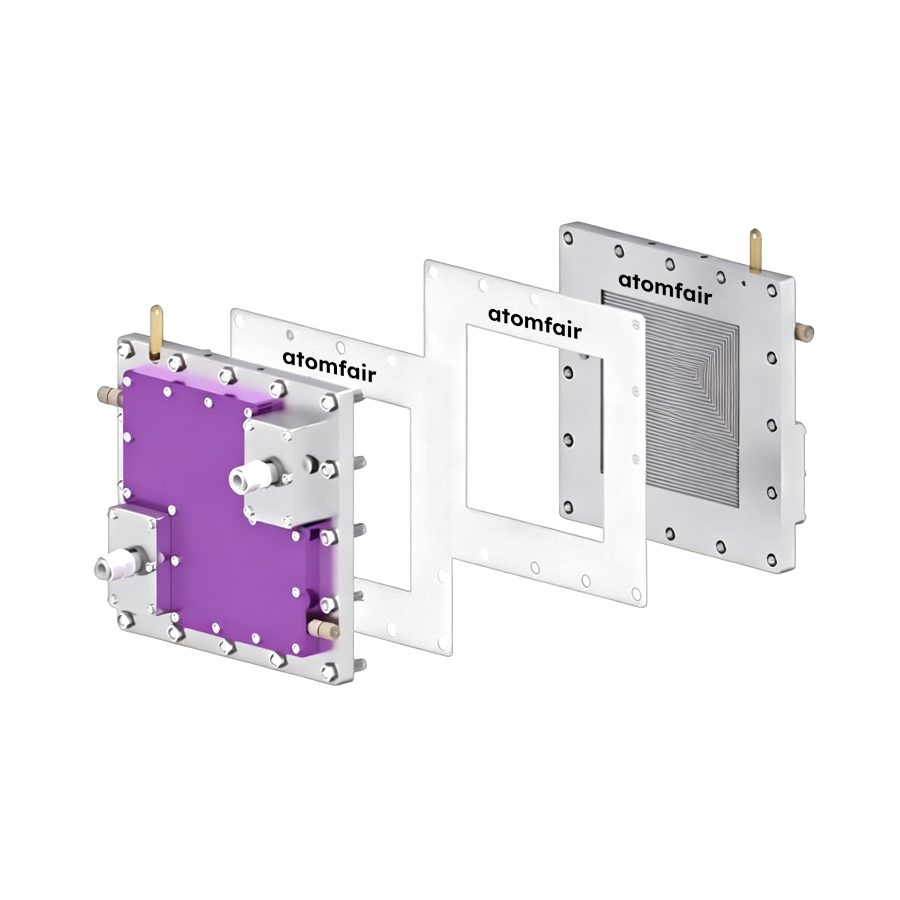

ATOMFAIR® water jacket MEA cell exploded 3D model with purple end plate, white gaskets, and a metallic flow field plate.

ATOMFAIR® Water Jacket Membrane Electrode Assembly Cell

Price range: $2,194.00 through $8,335.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando water jacket electrochemical cell price deals for large scale CO2 reduction electrolysis platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® WATER JACKET MEMBRANE ELECTRODE ASSEMBLY CELL

OPERANDO THERMAL-CONTROL ELECTROCATALYSIS

Product Overview
This professional scale-up analytical installation is engineered to unlock uncompromised cell-to-cell consistency and ultra-precise thermal equilibrium tracking across expanded geometric surfaces. Specifically optimized for large-format electrocatalytic carbon dioxide reduction (CO2RR) and water splitting validation under rigorous temperature-controlled testing profiles, it integrates an advanced integrated fluid heating jacket with dual-source loop monitors to eliminate hot spots. It establishes an uncompromised operando water jacket electrochemical cell price validation platform for cutting-edge large scale CO2 reduction electrolysis platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Scale-Up Geometry & Thermal Balance
Active Channel Areas Multi-size platform cross compatibility supporting large-format 50 × 50 mm, 100 × 100 mm, and 200 × 200 mm active areas
Thermal Management Equipped with a built-in constant-temperature water circulation jacket alongside a dual-control thermal system (heating element and thermocouple loop)
2. Fluidic Tracking & Terminal Interfaces
Flow Path Architecture Anode and cathode plates feature multi-channel macro-serpentine high-flow geometries with advanced internal shear stress balancing
Pressure Compatibility Optimized to work with high-pressure fluidic pumps up to 1 MPa to dramatically suppress internal ohmic contact resistance
Electronic Terminals Removable heavy-duty gold-plated copper tabs enhancing interface conductance while simplifying replacement
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Isothermal Boundary Regulation: Fluidic water jacket shell prevents localized heat accumulation during high-current-density scale-up electrolysis runs.
  • 1 MPa Hydrodynamic Handling: Structural track layout safely handles tight 1 MPa feed pump dynamics, ensuring thorough gas purge kinetics.
  • Optimized Shear Flow Field: Integrated shear stress channels maximize gas diffusion layer wetting to lower overall cell overpotential.

APPLICATION SCOPE: Scale-up MEA cell validation, temperature-regulated CO2 reduction sweeps, high-current water splitting, and industrial-format hydrodynamic mapping.
PACKAGING: Reinforced transit wood crate casing with anti-static structural support foam fitted for large titanium blocks and thermal couplings.
IMPORTANT NOTICE: When running feed streams up to 1 MPa, check the plumbing adapters and water jacket links for tight seals. Torque perimeter bolts progressively using an industrial click wrench to distribute forces evenly across the expanded membrane area.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Multi-size

50*50mm, 100*100mm, 200*200mm
