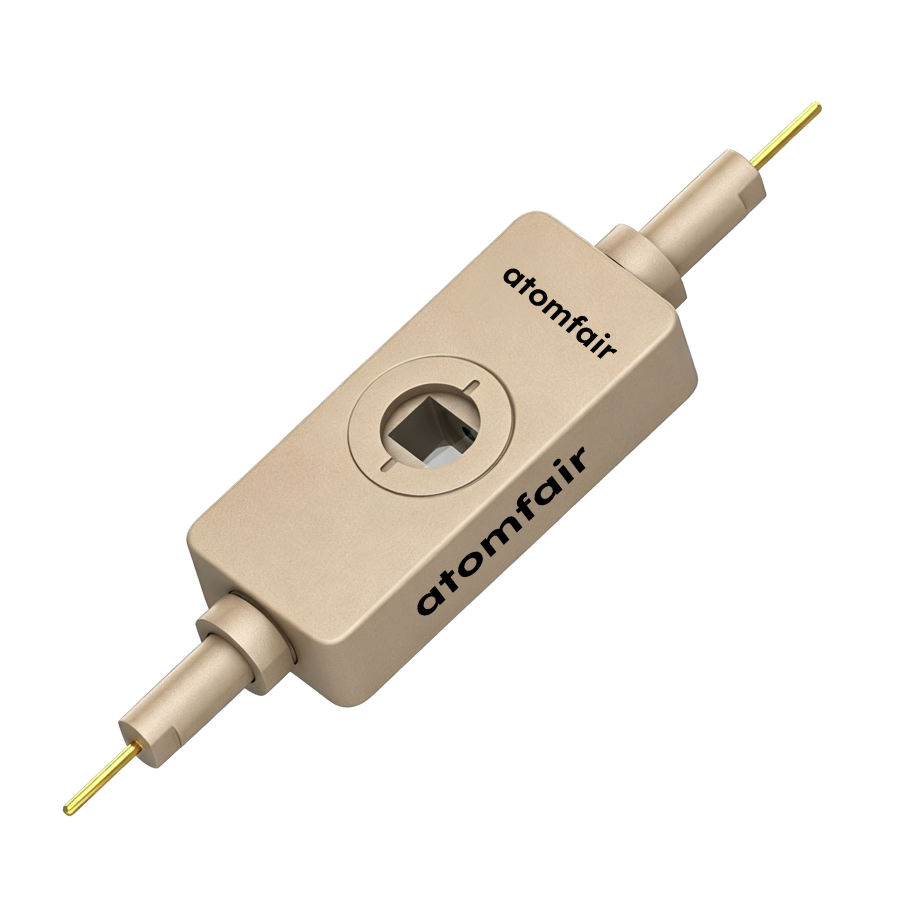

ATOMFAIR® visual Swagelok cell with rectangular beige body, central square window, and two protruding gold pins.

ATOMFAIR® Visual Swagelok Two-Electrode Battery Cell

$936.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy visual coin cell simulator price setups for PEEK operando microscopy cell platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® VISUAL SWAGELOK TWO-ELECTRODE BATTERY CELL

OPERANDO WINDOWED COIN CELL SIMULATION

Product Overview
This ultimate-tier analytical battery setup integrates an advanced Swagelok-style compression core with a high-transmittance bilateral observation system. Upgraded on the core framework block to incorporate specialized optical window fields on both sides of the reaction area, it unlocks real-time tracking of crystalline morphology changes and gas evolution under microscopy. It establishes an uncompromised visual coin cell simulator price validation platform for cutting-edge PEEK operando microscopy cell platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Core Material Premium solid Polyetheretherketone (PEEK) delivering outstanding galvanic insulation and elite chemical resistance bounds against battery solvents
Conductive Plungers Dual horizontal current collectors crafted from high-purity Glassy Carbon rods (GC-Φ3 mm) ensuring zero metallic dissolution background noise
Disc Size Tracking Universal cross-compatible slot tracking: handles standard active sample sheet diameters of 10 mm, 12 mm, or 16 mm
2. Plunger Mechanics & Bilateral Optical Integration
Optical Viewing Field Upgraded layout featuring integrated high-extinction observation windows on both flanking surfaces to support real-time microscopy
Assembly Topology Classic two-electrode architecture: active working and counter film targets face each other directly, sandwiching a thin separator layer between them
Mechanical Compression Dual-axis screw compression: rotating the left and right thread columns forces the glassy carbon rods forward to achieve tight electronic contact
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Dual-Sided Window Windows: Integrated clear aperture fields permit seamless open-air camera or microscope focusing over active materials.
  • GC-Φ3 Current Collection: Elite glassy carbon plunger tips prevent parasitic anodic corrosion artifacts, securing clean baseline results.
  • Rigid Insulated PEEK Block: Tough PEEK polymer framing provides total electronic isolation while sealing corrosive electrolytes.

APPLICATION SCOPE: Windowed visual Swagelok cell testing, operando electrode morphology mapping, button coin cell battery simulation, and micro-photography degradation indexing.
PACKAGING: Sealed protective cleanroom box featuring individual molded slots for windowed PEEK frames, glassy carbon collectors, and seals.
IMPORTANT NOTICE: Glassy Carbon rods and window facets possess highly fragile structures. When turning the thread adapters to secure 10/12/16 mm foil discs, adjust compression forces smoothly by hand. Prevent point stress or secondary contamination over the optical paths during washing cycles.
