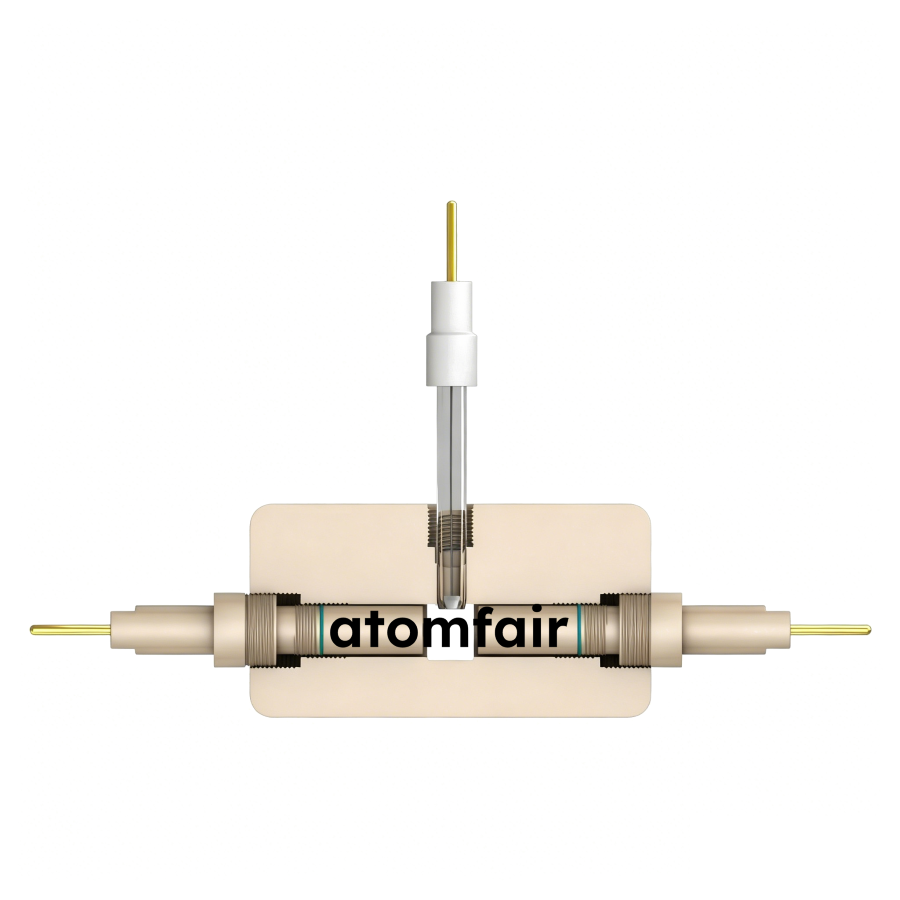

ATOMFAIR® visual Swagelok cell cross-section showing T-shaped beige body, lateral pins, and center optical gap.

ATOMFAIR® Visual Swagelok Three-Electrode Cell

$955.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy visual coin cell simulator price setups for PEEK operando microscopy cell platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® VISUAL SWAGELOK THREE-ELECTRODE BATTERY CELL

OPERANDO REFERENCE-INTEGRATED COIN SIMULATION

Product Overview
This ultimate analytical battery setup integrates high-transmittance bilateral observation window fields with upgraded half-cell potential diagnostics. Upgraded directly from classic two-electrode foundations to feature an independent built-in reference terminal aperture circuit, it separates active electrode morphology changes from counter polarization instabilities under live tracking. It establishes an uncompromised visual coin cell simulator price validation platform for cutting-edge PEEK operando microscopy cell platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Upgraded Three-Electrode Architecture
Design Integration Upgraded true three-electrode diagnostic configuration engineering an independent vertical reference electrode track built onto visual platform footprints
Reference Interface Dedicated top insertion port accommodating standard high-stability Ag/AgCl reference probes
2. Structural Materials & Bilateral Optics
Cell Body Material Premium solid Polyetheretherketone (PEEK) delivering complete electronic insulation and elite chemical resistance bounds against corrosive battery solvents
Conductive Plungers Dual horizontal current collectors crafted from high-purity Glassy Carbon rods (GC-Φ3 mm) ensuring zero metallic dissolution background noise
Optical Viewing Field Bilateral observation apertures polished to mirror grade, permitting unhindered in-situ microscope focusing on target active materials
Disc Size Tracking Universal cross-compatible slot tracking: handles standard active sample sheet diameters of 10 mm, 12 mm, or 16 mm
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • True Three-Electrode Potentiostat Link: Integrated reference terminal completely isolates working overpotential sweeps from counter drift.
  • Bilateral Aperture Vision: Clear double-sided window zones support continuous long-working-distance camera tracking.
  • GC-Φ3 Pure Core Collectors: Elite glassy carbon tips avoid unwanted metallic oxidation background current anomalies.

APPLICATION SCOPE: Reference-integrated visual Swagelok cell testing, operando phase transformation mapping, half-cell coin simulations, and crystal growth indexing.
PACKAGING: Sealed protective cleanroom kit with dedicated component slots for the windowed PEEK body, glassy carbon plungers, and vertical reference columns.
IMPORTANT NOTICE: Glassy Carbon collectors and window perimeters possess highly fragile properties. When tightening the left and right plunger shafts to compress 10/12/16 mm foil active layers, handle components gently by hand. Protect optical surfaces from scratch contamination or point strain.
