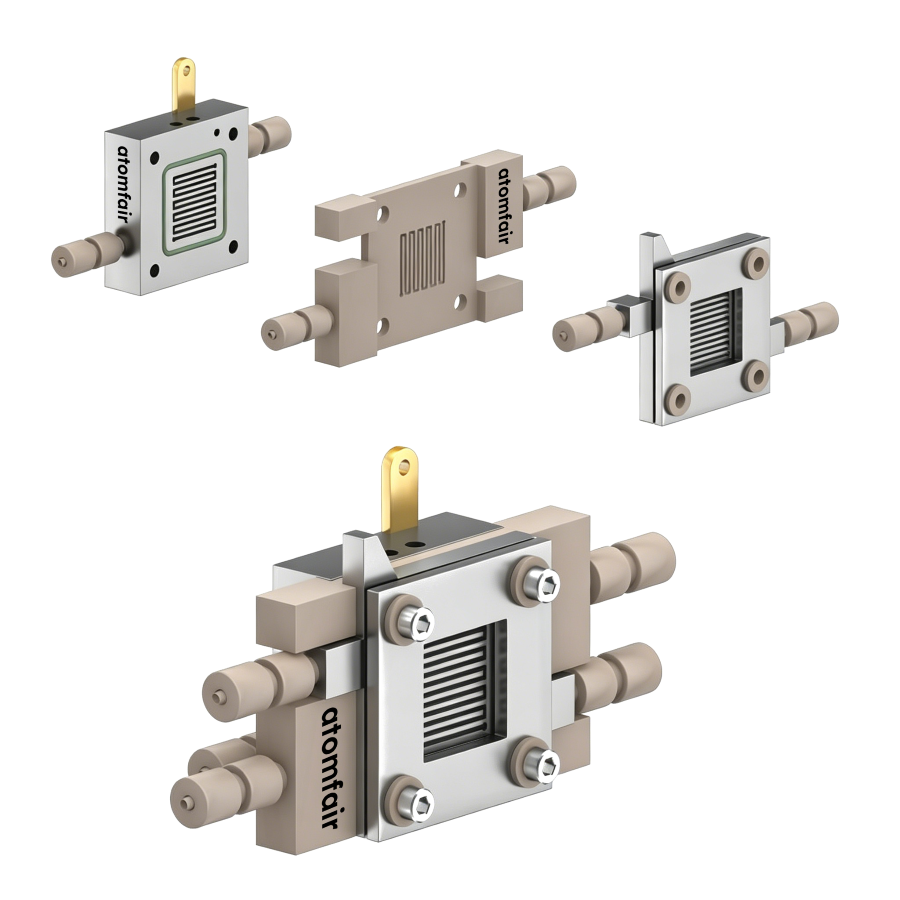

ATOMFAIR® solid electrolyte cell 3D view with clear square windows, serpentine channels, and fully assembled block.

ATOMFAIR® Visual Serpentine Solid Electrolyte Cell

$1,813.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy pure liquid product electrolyzer price configurations for solid polymer electrolyte validation platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® VISUAL SERPENTINE SOLID ELECTROLYTE CELL

OPERANDO WINDOWED PRODUCT ELUTION & PHOTO-CATALYSIS

Product Overview
This ultimate-tier analytical setup integrates an upgraded serpentine micro-channel center core with an advanced optical observation system. Upgraded on the cathode compartment assembly to feature a high-transmittance monocrystalline quartz viewing window, it enables direct real-time tracking of intermediate bubble evolution and interface morphology changes under active illumination or micro-photography setups. By replacing liquid electro-baths with high-conductance solid polymer membranes, it completely eliminates salt ion crossover to isolate high-purity liquid fuels directly into a water stream. It establishes an uncompromised pure liquid product electrolyzer price validation platform for cutting-edge solid polymer electrolyte validation platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Upgraded Optical Integration & Visual Manifold
Visualization Portal Upgraded cathode chamber configuration featuring a built-in high-transmittance monocrystalline Quartz window aperture
Optical Versatility Enables direct structural micro-photography indexing of the working electrode face and permits uniform external solar spectrum beam illumination for coupled photo-electrochemical tracking
2. Flow Architecture & Center Core Medium
Center Elution Channel Middle core component engineered with a continuous serpentine micro-channel network to optimize pure water flushing flow metrics
Outer Framework High-purity Titanium (Ti) construction standard on retaining plate surfaces to eliminate background electronic current losses
Membrane Boundary Stack Dual-sided matrix configuration sandwiching an independent anion film and proton exchange film to isolate active interfaces
Solid Ionomer Support Accepts compact beds of particulate ion-exchange polymer resins or functional porous ceramics to manage ionic transfer fields without liquid salt additions
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • High-Transmittance Quartz Window: Premium viewing portal permits unhindered phase tracking and full-spectrum light injection into the cathode chamber.
  • Serpentine Elution Manifold: Integrated middle-layer channel pattern sweeps liquid fuels away immediately, achieving elite mass transport recovery.
  • Salt-Free Fuel Synthesis: Advanced solid electrolyte barrier blocks inorganic salt migrations to yield clean liquid fuel solutions.

APPLICATION SCOPE: Visualized solid polymer electrolyte catalysis, photo-electrochemical gas conversion, salt-free pure fuel elution tracking, and operando high-speed photography.
PACKAGING: Cleanroom sealed package with custom-slotted high-density internal tracks to secure the windowed cathode array, serpentine plates, and gaskets.
IMPORTANT NOTICE: Monocrystalline quartz window targets possess fragile precision-polished optics. When tightening the cell assembly, torque all outer clamping fasteners symmetrically in a cross pattern to secure uniform sealing compression without inducing mechanical localized stress over the viewing path.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
