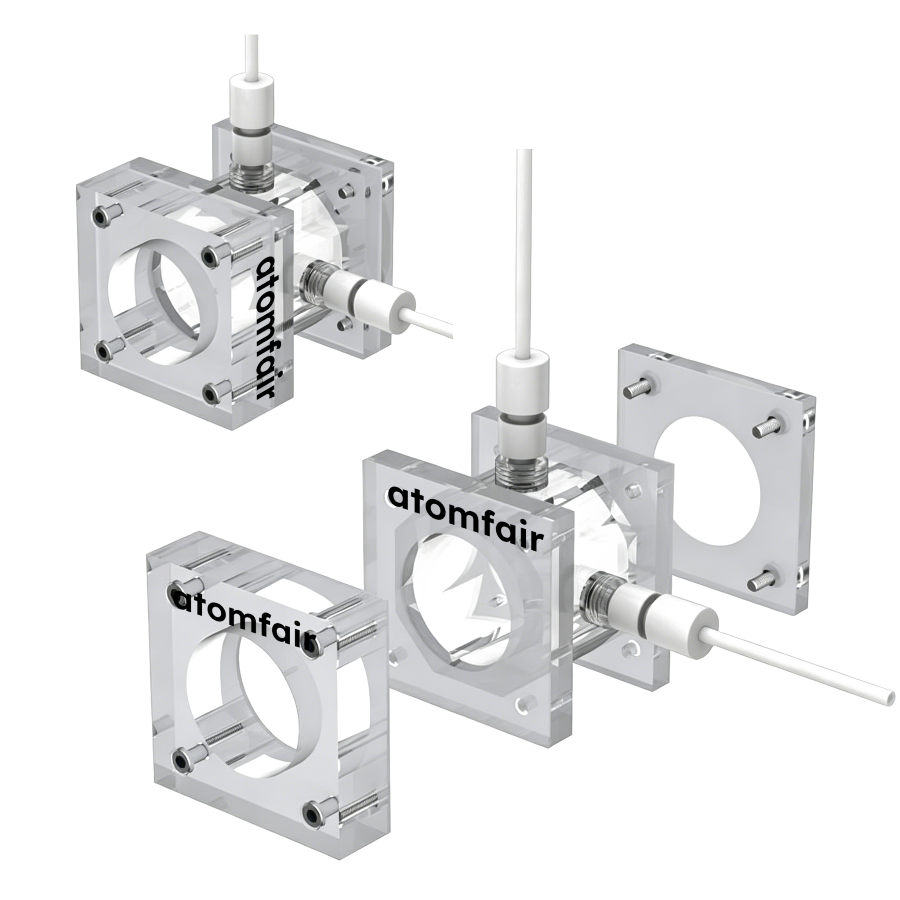

ATOMFAIR® zinc-air cell 3D model with transparent plates, circular windows, horizontal gas tubes, and assembled blocks.

ATOMFAIR® Visual Metal-Air Gas-Circulated Cell (Zn-2)

$493.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy zinc-air flow battery price setups for PMMA operando battery testing platform R&D. ISO 9001 compliance validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® VISUAL METAL-AIR GAS-CIRCULATED CELL (ZN-2)

OPERANDO WINDOWED GAS-CIRCULATED BATTERY MECHANICS

Product Overview
This premium gas-circulated battery characterization setup is explicitly overhauled to incorporate wide-view window perimeters. Engineered on model Zn-2 to support optimized focal paths under macro lenses and operando microscopy tracking, it maintains continuous gas transmission sweeps directly across the porous breathing interface. It establishes an uncompromised customizable parameter validation matrix for cutting-edge zinc-air flow battery price deals and advanced lithium-air testing workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Body Material Premium high-transmittance Poly(methyl methacrylate) (PMMA) providing absolute 360-degree optical tracking and robust alkaline electrolyte compatibility
Fluidic Topology Equipped with integrated gas circulation inlets and outlets to support continuous gas-fed loops (e.g., O2, Air, CO2) directly across active breathing substrates
Custom Dimensions Biaxial modular compression plate framework fully customizable to tailored structural specifications and larger geometric window bounds upon request
2. Electrode Sealing & Visual Fluidics
Visual Upgrades Upgraded configuration featuring mirror-polished front observation window fields to track solid byproduct precipitation and zinc metal passivation tracks
Anode Assembly Slot Optimized clamping path accommodating metal sheets such as high-purity Zinc (Zn) plates or Lithium (Li) foils
Gas Cathode Interface Engineered to compress hydrophobic gas-diffusion layers paired with active breathing catalyst meshes
Hermetic Sealing System High-performance fluoroelastomer gaskets ensuring absolute fluidic tracking and zero electrolyte bypass leakage under continuous circulation loops
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Mirror-Polished Window Tracking: Model Zn-2 introduces targeted observation paths to capture real-time dendritic profiles or carbonate crystal build-up.
  • Active Gas Circulation Manifold: Integrated loop channels keep the oxygen supply uniform, avoiding gas transport latency during cycling.
  • Tailored Dimension Modularity: Cell boundaries and active window areas adjust easily to host proprietary catalyst sheets or commercial gas diffusion electrodes.

APPLICATION SCOPE: Visualized Zinc-Air battery characterization, Lithium-Air flow testing, operando gas-diffusion fluid profiling, and windowed interface engineering.
PACKAGING: Sealed protective cleanroom box featuring individual molded slots for the windowed clear PMMA flow housing, gaskets, and port connectors.
IMPORTANT NOTICE: PMMA polymer bodies provide high structural transparency but are sensitive to heavy organic solvents. Clean only with aqueous neutral or basic washes. Torque the clamping frame fasteners symmetrically to align the zinc plate or carbon cloth flat without cracking the plastic thread perimeters or scratching the polished window path.
