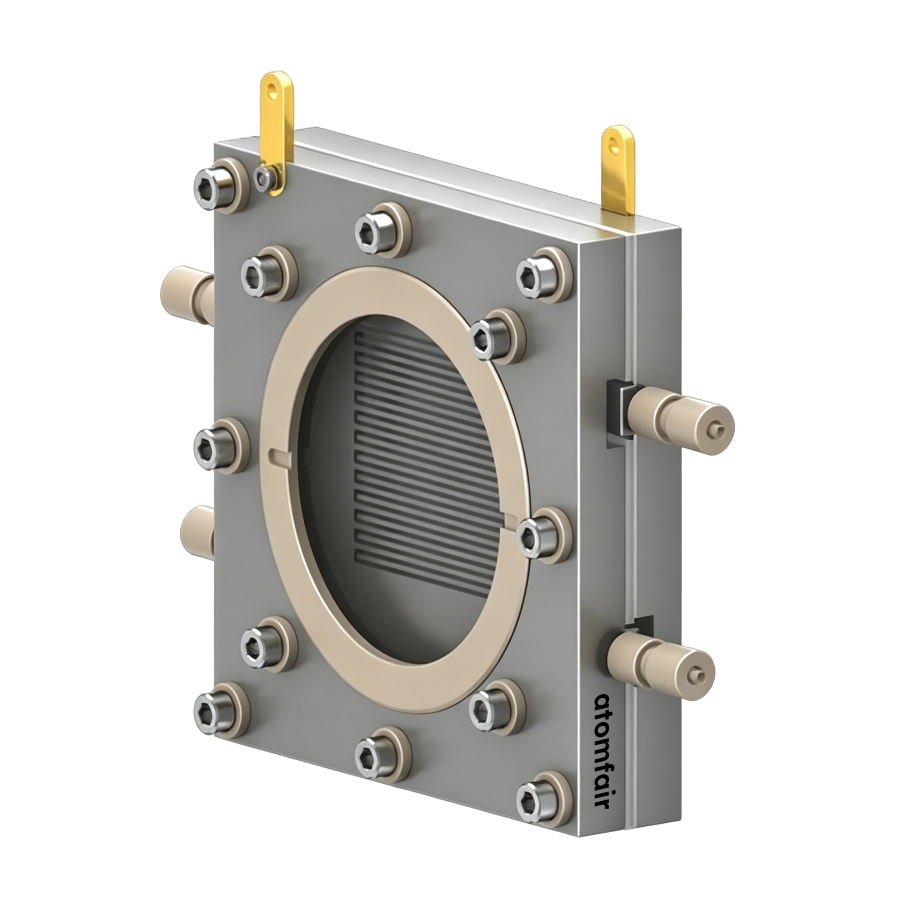

ATOMFAIR® visual MEA cell type A with large circular viewing window, parallel flow channels, and perimeter bolts.

ATOMFAIR® Visual Membrane Electrode Assembly Cell (Type A)

$1,500.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy operando membrane electrode assembly cell price deals for high speed photography electrocatalysis platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® VISUAL MEMBRANE ELECTRODE ASSEMBLY CELL (TYPE A)

OPERANDO HIGH-SPEED OPTICAL METROLOGY

Product Overview
This premium optical zero-gap reactor is engineered to unlock uncompromised cell-to-cell consistency and dual-sided interface monitoring during advanced electrocatalytic workflows. Optimized for real-time evaluation of electrochemical carbon dioxide reduction (CO2RR) and alkaline anion exchange membrane (AEM) water splitting, it integrates dedicated optical ports on both anode and cathode channels. It establishes an uncompromised operando membrane electrode assembly cell price validation platform for cutting-edge high speed photography electrocatalysis platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Optical Profiling & Geometry Variation
Visualization Mode Dual-sided active viewing: both cathode and anode plates contain open optical paths supporting in-situ microscopy and high-speed photography tracking
Window Field Option Bespoke structural variations matching experimental footprints: Type A features circular window targets (Type B features rectangular viewing frames)
2. Fluidic Tracking & Channel Topologies
Cathode Flow Field Precision hollowed-out serpentine channel layout managing localized mass transport and fluid removal
Anode Flow Field Precision hollowed-out multi-parallel linear channel geometry supporting uniform gas-liquid dispersion profiles
Hermetic Sealing System High-integrity micro-engineered boundaries avoiding volatile bypass leaks under active fluidic circulation
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Simultaneous Bilateral Observation: Permits capture of co-evolving gas release kinetics on the anode alongside compound reduction changes on the cathode.
  • Hollowed-Out Serpentine Mechanics: Specialized fluid tracks provide unhindered optical access while establishing tight electronic compression across active materials.
  • High-Speed Photography Baseline: High-extinction tracking windows are optimized to reduce flare, capturing millisecond gas bubble creation events cleanly.

APPLICATION SCOPE: Visual zero-gap MEA electrocatalysis, operando bubble evolution profiling, multi-channel flow camera tracking, and cross-contamination boundary indexing.
PACKAGING: Sealed high-protection cleanroom box with dedicated custom stabilization liners for brittle window frames and core flow plates.
IMPORTANT NOTICE: The hollowed-out channel ribs dictate internal electronic contact resistance. When closing the cell assembly, torque all outer compression frame screws sequentially in a cross pattern to prevent fluid bypassing while shielding open glass paths from asymmetric point strain.
