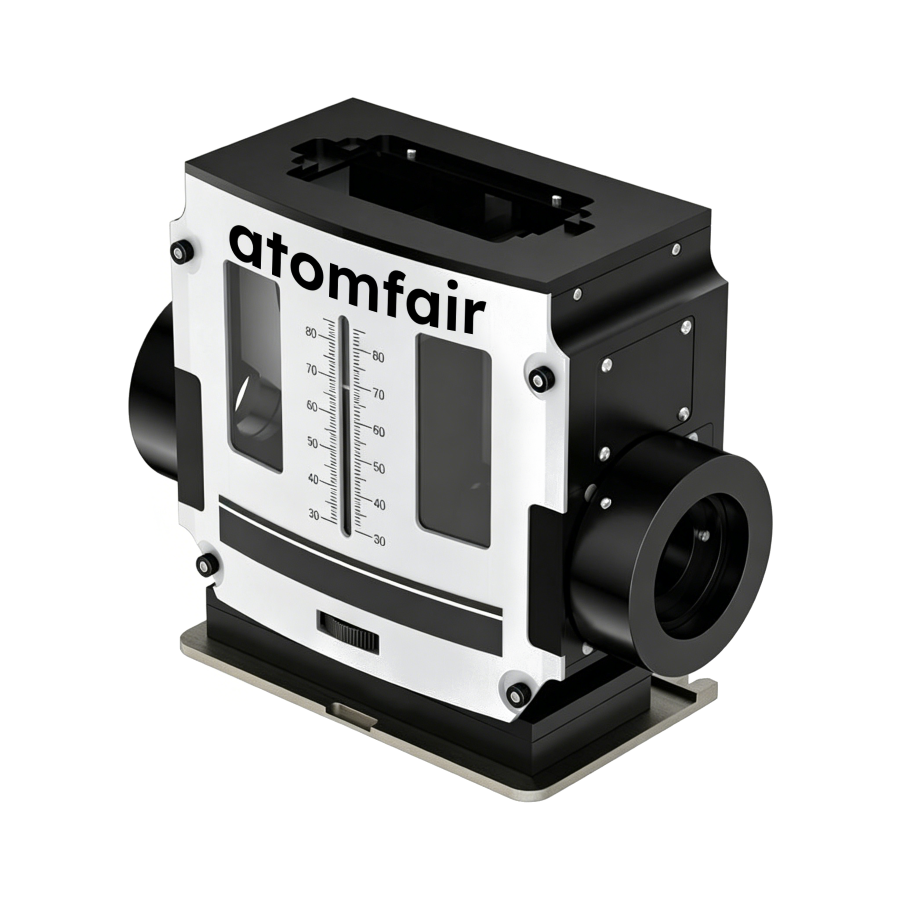

ATOMFAIR® ATR spectroscopy stage with metallic housing, dual optical cylinders, and a central alignment scale.

ATOMFAIR® Variable Angle ATR Spectroscopy Optical Stage

$16,470.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy variable angle ATR accessory price deals for infrared spectroscopy depth profiling platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® VARIABLE ANGLE ATR SPECTROSCOPY OPTICAL STAGE

INFRARED DEPTH PROFILING & OPTICAL METROLOGY

Product Overview
This advanced analytical optical platform is engineered to unlock uncompromised cell-to-cell consistency and selective depth profiling tuning during high-end spectroscopy runs. Featuring a continuous incident beam sweep angle track paired with dynamic crystal substrate exchange options, it delivers superior throughput metrics to minimize signal integration times when mapping dilute components. It establishes an uncompromised variable angle ATR accessory price validation platform for cutting-edge infrared spectroscopy depth profiling platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Angular Precision & Depth Tuning Metrics
Incident Angle Range Continuous variable setting range adjustable from 30° to 80° for fine tuning reflection paths
Penetration Depth Field Tunable infrared skin depth ranging from 0.4 to 46 μm, delivering an ideal choice for multi-layer chemical profiling
Optical Window Throughput High-transmission optics supporting >50% energy throughput utilizing a 45° Zinc Selenide (ZnSe) core crystal substrate
2. System Modularity & Fixture Interface
Polarizer Integration Equipped with a built-in dedicated alignment mount matching both manual and automated polarizer components
High-Pressure Clamp Option Optional high-load mechanical compression clamp tailored for rigid thin films, coatings, or packed powders
Crystal Adaptability Multi-crystal interface base supporting swappable internal element configurations (e.g., Ge, ZnSe, Si)
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Continuously Tunable Depth Selection: Sweep settings from 30° to 80° allow precise gradient chemical mapping across thin film interfaces without swapping crystals.
  • Outstanding Energy Throughput: Optimized ZnSe configuration exceeds 50% optical throughput to capture low-concentration trace components.
  • Integrated Polarization Slot: Built-in staging adapter accepts polarizing filters to support advanced crystal orientation and molecular alignment profiling.

APPLICATION SCOPE: Variable angle internal reflection spectroscopy, multi-layer coating depth profiling, polymer film orientation indexing, and high-pressure powder validation platforms.
PACKAGING: Shockproof industrial instrument container featuring laser-cut foam tracking for internal mirrors and optical crystal plates.
IMPORTANT NOTICE: Internal reflection elements (ZnSe or Ge) are highly polished and brittle. When engaging the optional high-pressure clamp over powder or coating samples, apply mechanical loading forces gently to avoid shattering or scratching the active crystal face.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
