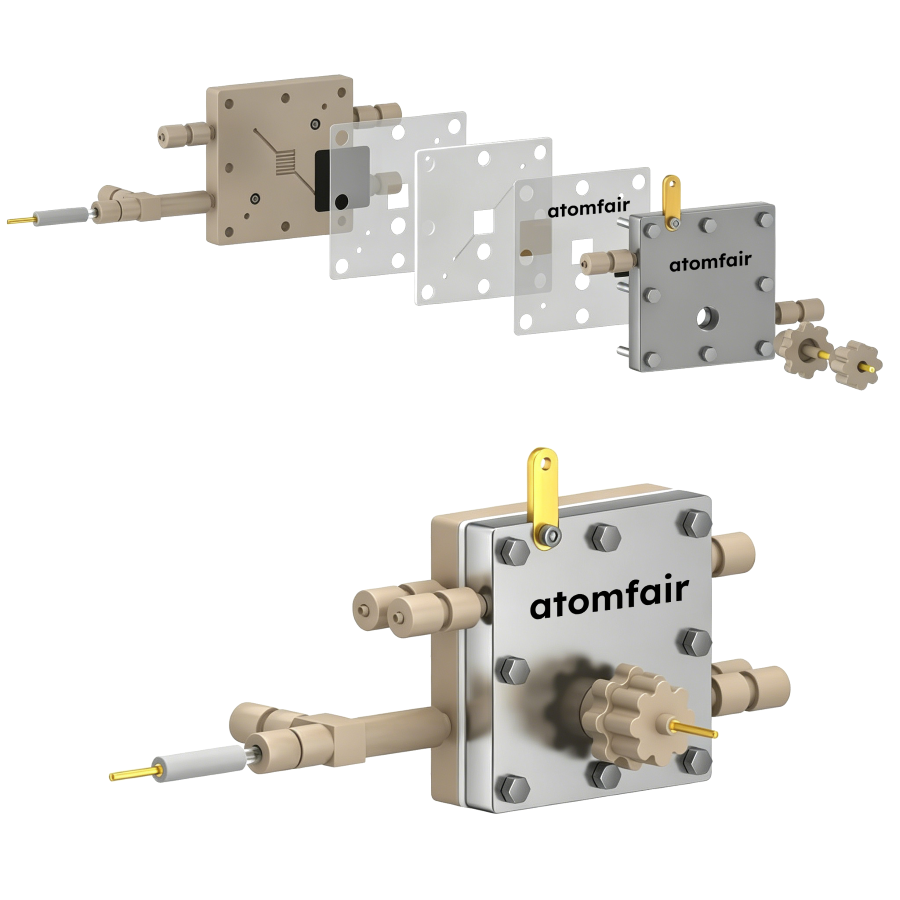

ATOMFAIR® ultimate MEA cell 3D view showing layered flow plates, gaskets, side tubes, and a fully assembled unit.

ATOMFAIR® Ultimate MEA Gas Diffusion Electrolysis Cell

Price range: $1,534.00 through $1,646.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy zero gap MEA electrolyzer price deals for titanium spectroelectrochemical cell platform R&D. ISO 9001 validation.

Category:
Tags:
Brands:

Description

ATOMFAIR® ULTIMATE MEA GAS DIFFUSION ELECTROLYSIS CELL

OPERANDO ULTIMATE ZERO-GAP METROLOGY

Product Overview
This ultimate-tier analytical architecture represents a revolutionary advancement over conventional membrane electrode assembly (MEA) setups. Engineered with a specialized serpentine micro-channel network in the gas manifold to maximize the active interaction time between gas reactants and the cathode substrate, it features a completely overhauled flow loop path that compresses the spacing down to a minimum distance. It establishes an uncompromised zero gap MEA electrolyzer price validation platform for cutting-edge titanium spectroelectrochemical cell platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Structural Housing & Channel Topologies
Plate Framework Material Premium high-purity solid Titanium (Ti) delivering absolute stability against corrosion fields
Flow Channel Geometry Standard configuration features high-convective serpentine flow tracks (full support available for bespoke channel blueprints)
Active Reaction Areas Cross-compatible platform geometries accommodating standard 10 × 10 mm and 20 × 20 mm testing footprints
2. Electrode Separation & Interface Networks
Interelectrode Gap Overhauled internal cathode flow path structure holding a strict, ultra-short 0.4 mm working-to-counter electrode gap spacing to drastically cut solution resistance
Working Electrode Support Optimized for seamless integration with specialized gas diffusion electrodes (user-supplied)
Reference Interface Standard configuration includes a high-purity Ag/AgCl reference electrode probe module
Counter Electrode Support Tailored to clamp porous counter-substrates such as iridium oxide (IrOx) mesh or activated foam metal screens (user-supplied)
Standard Included Accessory Shipped complete with a premium calibrated torque wrench to ensure accurate repeatable clamping torque
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • Elite 0.4 mm Gap Boundaries: Overhauled cathode structural loop holds a strict 0.4 mm gap to eliminate ohmic drop limitations under high current density.
  • Serpentine Kinetic Retention: Gas-phase micro-channels extend active transport residence times to drastically maximize absolute product conversions.
  • Calibrated Torque Assembly: Standard-inclusion torque tool locks in a highly reproducible gasket compression map for perfect cell-to-cell data replication.

APPLICATION SCOPE: Ultimate-tier gas diffusion electrocatalysis, zero-gap MEA reaction optimization, high-current carbon dioxide reduction, and porous mesh substrate screening.
PACKAGING: Cleanroom sealed container with dedicated high-density protection tracks for titanium blocks, reference probes, and the torque wrench accessory.
IMPORTANT NOTICE: Because the internal spacing is held precisely at 0.4 mm, avoid using wrinkled or variable-thickness gas diffusion backings. Always utilize the standard included torque wrench tool to compress the titanium framing bolts to factory-recommended limits to safeguard internal zero-gap tracks against localized crushing.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

size

10*10mm, 20*20mm
