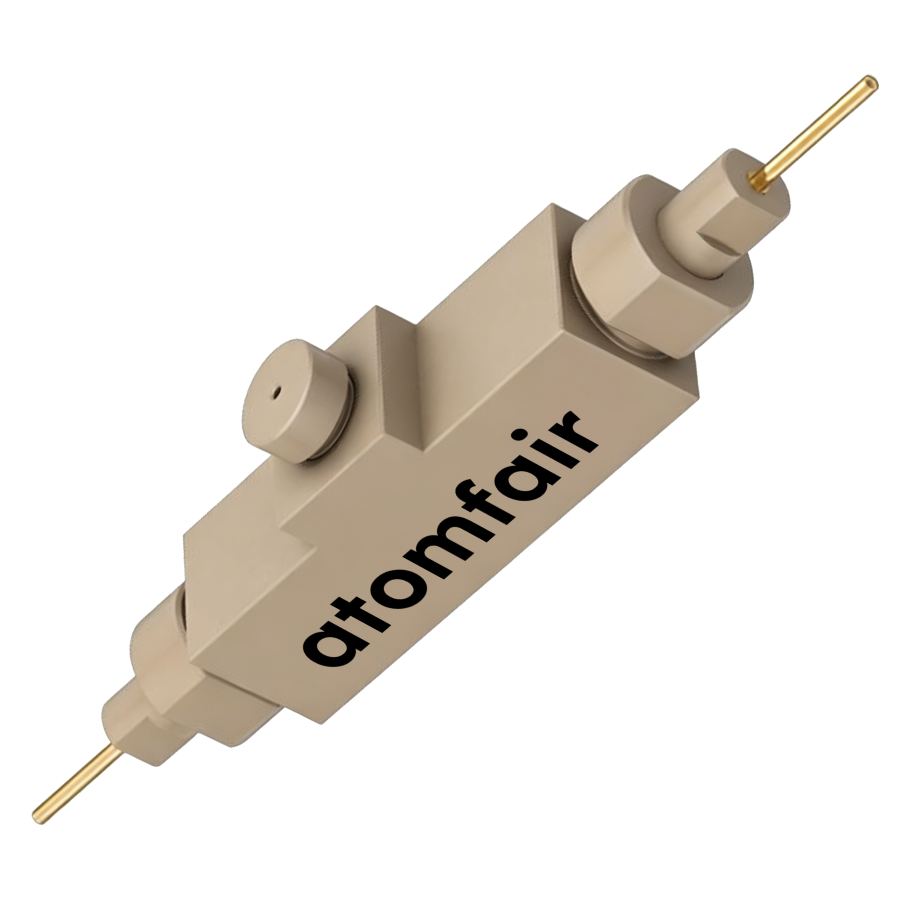

ATOMFAIR® Swagelok cell with rectangular beige PEEK body and two linear protruding gold electrode pins.

ATOMFAIR® Swagelok Type Two-Electrode Battery Cell

$802.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Buy two electrode coin cell simulator price setups for PEEK button battery testing platform R&D. ISO 9001 validation. Contact inquiry@atomfair.com.

Category:
Tags:
Brands:

Description

ATOMFAIR® SWAGELOK TYPE TWO-ELECTRODE BATTERY CELL

OPERANDO TWO-ELECTRODE COIN CELL SIMULATION

Product Overview
This professional Swagelok-style two-electrode analytical cell is explicitly engineered to unlock uncompromised cell-to-cell consistency during high-throughput button battery characterization. Simplifying classic multi-element lines into a compact dual-terminal housing, it utilizes dual horizontal compression plungers to clamp active working and counter substrates tightly over thin separator layers, successfully replicating the strict mechanical profile of button coin cells. It establishes an uncompromised two electrode coin cell simulator price validation platform for cutting-edge PEEK button battery testing platform R&D workflows.

Technical Specifications

PARAMETER DETAILS
1. Core Structural & Material Matrix
Cell Body Material Premium solid Polyetheretherketone (PEEK) delivering complete electronic insulation and elite chemical resistance bounds against organic electrolytes
Conductive Plungers Dual horizontal current collectors crafted from high-purity Glassy Carbon rods (GC-Φ3 mm) ensuring zero metallic corrosion or background dissolution artifacts
Compatible Targets Universal cross-compatible slot tracking: handles standard active disc sample diameters of 10 mm, 12 mm, or 16 mm
2. Two-Electrode Alignment & Plunger Mechanics
Assembly Topology Classic two-electrode architecture: positive substrate (anode) and negative sample (cathode) face each other directly, sandwiching an active separator layer between them
Mechanical Compression Dual-axis screw compression: rotating the left and right thread adapters moves the glassy carbon rods to compress the core stack, securing 100% stable electronic contact tracking
Fluid Injection Port Integrated top cap screw-opening allows clean post-assembly liquid introduction without disturbing internal plunger pressure loads
Hermetic Sealing System The upper injection screw manifold integrates a specialized gas-tight polymer cushion gasket to prevent gas crossover and air leaking variables
3. Regulatory & Manufacturing Trace
Manufacturing Rules Processed under strict ISO 9001 compliance validation conditions

Key Features & Advantages
  • GC-Φ3 Current Collection: High-purity glassy carbon rods provide excellent conductivity while preventing background anodic current interference.
  • Gas-Tight Seal Manifolds: Built-in polymer gas cushions ensure strict hermetic bounds for reliable ambient desk testing.
  • Streamlined Two-Electrode Loop: Simplified layout allows high-throughput cycling analysis with quick tool-less assembly.

APPLICATION SCOPE: Swagelok battery characterization, two-electrode coin cell simulation, full-cell battery testing loops, and organic electrolyte validation platforms.
PACKAGING: Sealed protective cleanroom box with custom precision slots for the PEEK block sleeve, glassy carbon plungers, and gas-tight screws.
IMPORTANT NOTICE: Glassy Carbon collectors are highly brittle materials. When tightening the left and right screw adapters to secure 10/12/16 mm sample foils, apply load forces gently by hand. Avoid iron wrenches to prevent stripping or scratching the rigid PEEK thread paths.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
